| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

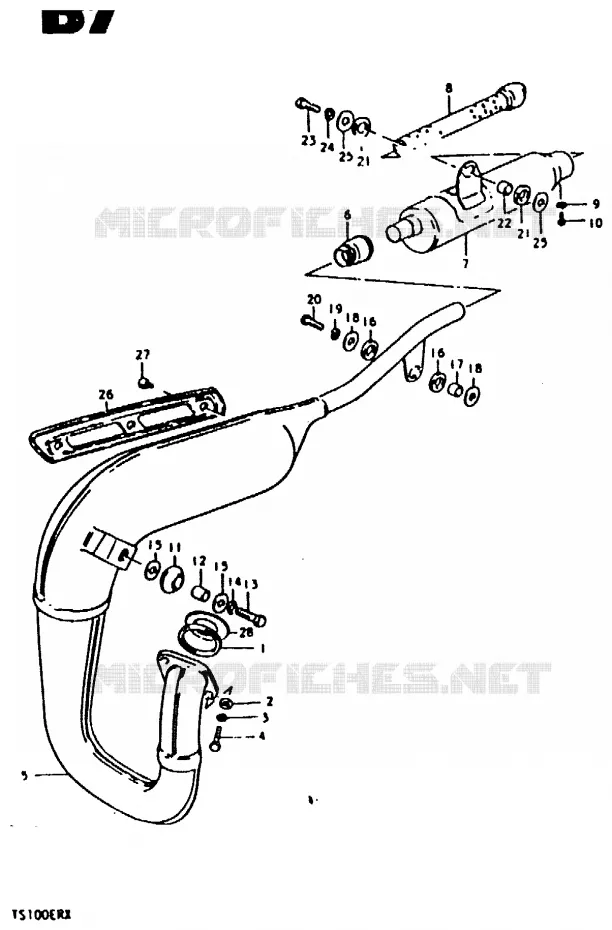

| # 1 |
14181-11010-000 14181-01D00-0001418111010000 |
EXHAUST PIPE GASKET
GASKET |
||||
| # 2 |
08322-21068-000 0832221068000 |
WASHER
|
Niet beschikbaar | |||
| # 3 |
08321-21068-000 08321-01067-0000832121068000 |
WASHER, LOCK
LOCK WASHER |
||||
| # 4 |
09128-06024-000 09103-06212-0000912806024000 |
BOLT
|
||||
| # 5 |
14310-48520-000 14310-48520-H011431048520000 |
MUFFLER TS 125 ER
DISCONTINUED |
||||
| # 6 |
14771-48002-000 1477148002000 1477148002000 |
CONNECTOR, MUFFLER
CONNECTOR |
||||
| # 7 |
14303-48001-000 14303-48610-0001430348001000 |
MUFFLER ASSY, 2ND
|
||||
| # 8 |
14510-48000-000 1451048000000 1451048000000 |
PIPE, MUFFLER BAFFLE
PIPE, BAFFLE |
||||
| # 9 |
08321-21068-000 08321-01067-0000832121068000 |
WASHER, LOCK
LOCK WASHER |
||||
| # 10 |
02112-06088-000 02112-06087-0000211206088000 |
SCREW 6 X 8
.SCREW |
||||
| # 11 |
14772-30500-000 14772-30501-0001477230500000 |
DAMPER, MUFFLER FR
DAMPER, FRONT |
||||
| # 12 |
09180-08048-000 09180-08302-0000918008048000 |
SPACER
|
||||
| # 13 |
01107-08358-000 01550-0835B-0000110708358000 |
BOLT
|
||||
| # 14 |
08321-21088-000 08321-01087-0000832121088000 |
LOCK WASHER
.8MM LOCK WASHER, RH |
||||
| # 15 |
09160-08007-000 09160-08127-0000916008007000 |
WASHER, 8.5X22X2
WASHER |
||||
| # 16 |
09320-14006-000 0932014006000 0932014006000 |
CUSHION
|
Niet beschikbaar | |||
| # 17 |
09180-08075-000 09180-08200-0000918008075000 |
SPACER, 8.5X14X9.8
SPACER |
||||
| # 18 |
09160-08004-000 09160-08134-0000916008004000 |
WASHER, 8.5X26X1.6
WASHER (8.2X26X1.6) |
||||
| # 19 |
08321-21088-000 08321-01087-0000832121088000 |
LOCK WASHER
.8MM LOCK WASHER, RH |
||||
| # 20 |
01107-08258-000 01500-08257-0000110708258000 |
BOLT
|
||||
| # 21 |
09320-14006-000 0932014006000 0932014006000 |
CUSHION
|
Niet beschikbaar | |||
| # 22 |
09180-08050-000 09180-08199-0000918008050000 |
SPACER, 8.5X14X9
SPACER (8.6X13.8X9) |
||||
| # 23 |
01107-08258-000 01500-08257-0000110708258000 |
BOLT
|
||||
| # 24 |
08321-21088-000 08321-01087-0000832121088000 |
LOCK WASHER
.8MM LOCK WASHER, RH |
||||
| # 25 |
09160-08004-000 09160-08134-0000916008004000 |
WASHER, 8.5X26X1.6
WASHER (8.2X26X1.6) |
||||
| # 26 |
14781-48500-000 1478148500000 1478148500000 |
COVER, MUFFLER
|
||||
| # 27 |
02112-06088-000 02112-06087-0000211206088000 |
SCREW 6 X 8
.SCREW |
||||
| # 28 |
14159-48500-000 1415948500000 1415948500000 |
PLATE, EXHAUST PIPE
|
Niet beschikbaar |
