| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

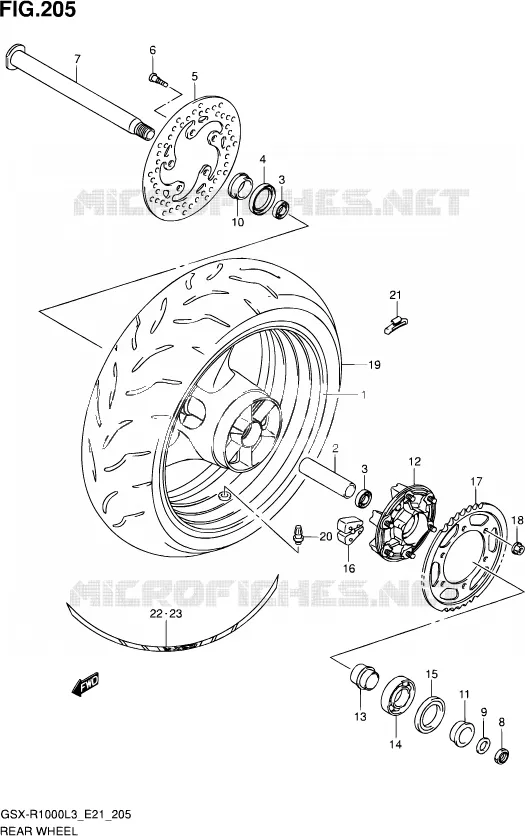

| # 1 |
64111-47H00-28W 6411147H0028W 6411147H0028W |
WHEEL. REAR (17M/CXMT6.00)
WHEEL, REAR (17M/CXMT6.00) (WHITE) |
||||
| # 2 |
64731-35F10-000 6473135F10000 6473135F10000 |
SPACER, REAR HUB BEARING
SPACER, HUB BEARING |
||||
| # 3 |
09262-28052-000 09262-28062-0000926228052000 |
BEARING, REAR WHEEL HUB
BEARING (28X52X12) |
||||
| # 4 |
09284-37001-000 09284-37002-0000928437001000 |
SEAL, REAR WHEEL BEARING R
OIL SEAL (37X52X8) |
||||
| # 5 |
69211-18G00-000 6921118G00000 6921118G00000 |
RR BRAKE DISK 220MM
DISC, REAR BRAKE |
||||
| # 6 |
09106-08160-000 0910608160000 0910608160000 |
BOLT, DISC
BOLT (8X21) |
||||
| # 7 |
64711-49G00-000 6471149G00000 6471149G00000 |
AXLE, REAR
|
||||
| # 8 |
09159-25003-000 0915925003000 0915925003000 |
NUT
|
||||
| # 9 |
09160-25070-000 09160-25070-0000916025070000 |
WASHER
WASHER (25.2X42X3.2)
|
||||
| # 10 |
64741-35F00-000 64741-35F10-0006474135F00000 |
SPACER, AXLE RH
|
||||
| # 11 |
64751-47H00-000 64751-47H10-0006475147H00000 |
SPACER, AXLE LH
|
||||
| # 12 |
64610-47H00-000 6461047H00000 6461047H00000 |
DRUM, REAR SPROCKET
|
||||
| # 13 |
64733-35F00-000 6473335F00000 6473335F00000 |
RETAINER, REAR SPROCKET DRUM
RETAINER, SPROCKET DRUM
|
||||
| # 14 |
09262-32022-000 09262-32024-0000926232022000 |
BEARING, RR SPROCKET FRUM
BEARING (32X65X17)
|
||||
| # 15 |
09285-39001-000 0928539001000 0928539001000 |
SEAL
OIL SEAL (39X65X7)
|
||||
| # 16 |
64651-47H10-000 6465147H10000 6465147H10000 |
ABSORBER, HUB SHOCK
|
||||
| # 17 |
64511-47H10-000 6451147H10000 6451147H10000 |
SPROCKET, REAR
|
||||
| # 18 |
08319-3110A-000 083193110A000 083193110A000 |
NUT
|
||||
| # 19 |
65110-47H10-000 6511047H10000 6511047H10000 |
TIRE. REAR. 190/50ZR17 M/C
TIRE, REAR, 190/50ZR17 M/C (73W) (BRIDGESTONE) |
||||
| # 20 |
43130-24A00-000 4313024A00000 4313024A00000 |
VALVE, TUBELESS
VALVE ASSY, WHEEL RIM (TR412)
|
||||
| # 21 |
55411-22H00-000 5541122H00000 5541122H00000 |
BALANCER. WHEEL (NO.1) 0
BALANCER (10G) |
||||
| # 21 |
55412-22H00-000 5541222H00000 5541222H00000 |
BALANCER. WHEEL (NO.2) 0
BALANCER (20G) |
||||
| # 21 |
55413-22H00-000 5541322H00000 5541322H00000 |
BALANCER. WHEEL (NO.3) 0
BALANCER (30G) |
||||
| # 22 |
68251-47H10-000 6825147H10000 6825147H10000 |
TAPE, RH
|
||||
| # 23 |
68251-47H10-000 6825147H10000 6825147H10000 |
TAPE. RH
TAPE, LH |
