| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
44100-17KB0-YVB 4410017KB0YVB 4410017KB0YVB |
TANK ASSY, FUEL (BLACK)
|
||||
| # 1 |
44100-17KB0-YWW 4410017KB0YWW 4410017KB0YWW |
TANK ASSY, FUEL (WHITE)
|
||||
| # 2 |
68110-17K00-BQL 6811017K00BQL 6811017K00BQL |
.TAPE SET, FUEL TANK
|
||||
| # 2 |
68110-17K00-BQM 6811017K00BQM 6811017K00BQM |
.TAPE SET, FUEL TANK
|
||||
| # 3 |
44121-17K00-000 44121-17K01-0004412117K00000 |
VESSEL, FUEL TANK INNER
|
||||
| # 4 |
44200-17820-000 4420017820000 4420017820000 |
CAP SET, FUEL TANK
|
||||
| # 5 |
44244-11J00-000 4424411J00000 4424411J00000 |
BOLT, FUEL TANK FILLER CAP
|
||||
| # 6 |
44552-24B10-000 4455224B10000 4455224B10000 |
MOLDING, FUEL TANK REAR
|
||||
| # 7 |
44523-47H00-000 4452347H00000 4452347H00000 |
NUT
|
||||
| # 8 |
44530-17K00-000 4453017K00000 4453017K00000 |
BRACKET, FUEL TANK NO.1
|
||||
| # 9 |
44541-17K00-000 4454117K00000 4454117K00000 |
CUSHION, SIDE
|
||||
| # 10 |
44542-17K00-000 4454217K00000 4454217K00000 |
CUSHION, REAR
|
||||
| # 11 |
44544-17K00-000 4454417K00000 4454417K00000 |
SPACER. FUEL TANK REAR BRACKE
SPACER, FUEL TANK REAR BRACKET |
||||
| # 12 |
44551-17K00-000 4455117K00000 4455117K00000 |
BRACKET, FUEL TANK REAR
|
||||
| # 13 |
44552-17K00-000 4455217K00000 4455217K00000 |
CLIP, NUT
|
||||
| # 14 |
44561-18G00-000 4456118G00000 4456118G00000 |
SPACER
SPACER, JOINT |
||||
| # 15 |
09103-06033-000 0910306033000 0910306033000 |
BOLT (6X125)
|
||||
| # 16 |
09111-06081-000 0911106081000 0911106081000 |
BOLT, REAR FENDER
BOLT (6X18) |
||||
| # 17 |
09139-06191-000 09139-06191-0000913906191000 |
SCREW
SCREW (6X22) |
||||
| # 18 |
09159-06086-000 0915906086000 0915906086000 |
NUT, EXH MANF COVER
NUT |
||||
| # 19 |
09160-06012-000 09160-06054-0000916006012000 |
WASHER
WASHER (6.5X22X1.6)
|
||||
| # 20 |
09320-08071-000 0932008071000 0932008071000 |
CUSHION
|
||||
| # 21 |
44543-17K00-000 4454317K00000 4454317K00000 |
CUSHION, FUEL TANK COVER
|
||||
| # 22 |
44572-13G00-000 4457213G00000 4457213G00000 |
FASTENER, FUEL TANK
FASTENER, COVER SIDE |
||||
| # 23 |
44572-44G00-000 4457244G00000 4457244G00000 |
FASTENER
FASTENER, FUEL TANK COVER |
||||
| # 24 |
09148-05052-000 0914805052000 0914805052000 |
NUT
|
||||
| # 25 |
09404-06433-000 09404-06036-0000940406433000 |
CLAMP (L80 T:1.0)
CLAMP (L:80) |
||||
| # 26 |
09407-17403-000 0940717403000 0940717403000 |
CLAMP
CLAMP (L:154) |
||||
| # 27 |
44283-17K00-000 4428317K00000 4428317K00000 |
PROTECTOR, FUEL TANK
|
||||
| # 28 |
44423-17K01-000 44423-17K02-0004442317K01000 |
HOSE.FUEL TANK WATER DRAIN
HOSE, DRAIN |
||||
| # 29 |
44574-17K00-000 4457417K00000 4457417K00000 |
STAY, FUEL TANK
|
||||
| # 30 |
44285-17K00-000 4428517K00000 4428517K00000 |
PROTECTOR, FUEL TANK NO.2 RH
|
||||
| # 31 |
44286-17K00-000 4428617K00000 4428617K00000 |
PROTECTOR, FUEL TANK NO.2 LH
|
||||
| # 32 |
44284-17K00-000 4428417K00000 4428417K00000 |
PROTECTOR, FUEL TANK
|

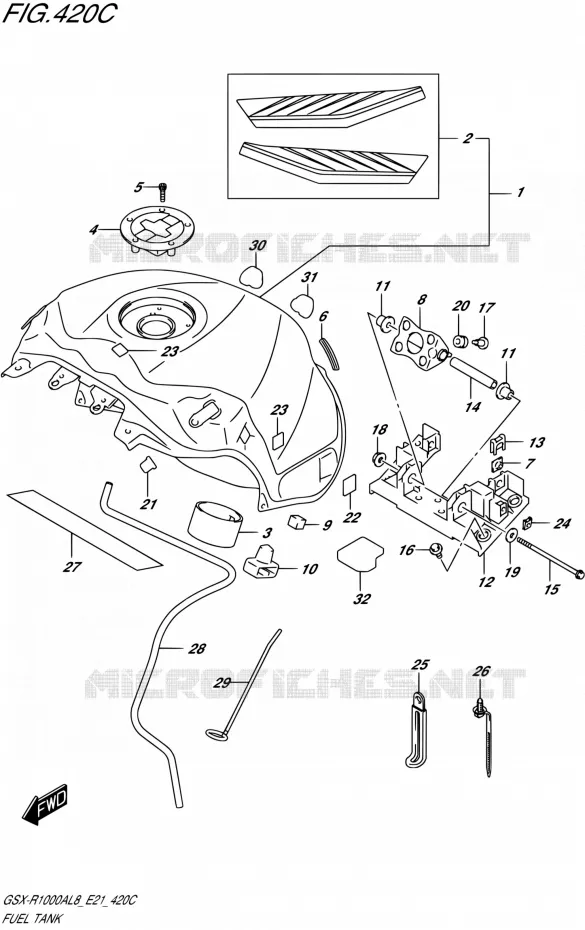

Suzuki GSX-R
Cilinderinhoud: 1000 cc Jaar: 2018 Model code GSX-R1000RZAL8 / GSX-R1000RAL8 E21 Kleur: Metallic Black Mat No. 2 (YKV) / Pearl Glacier White (YWW) / Metallic Triton Blue (YSF)
