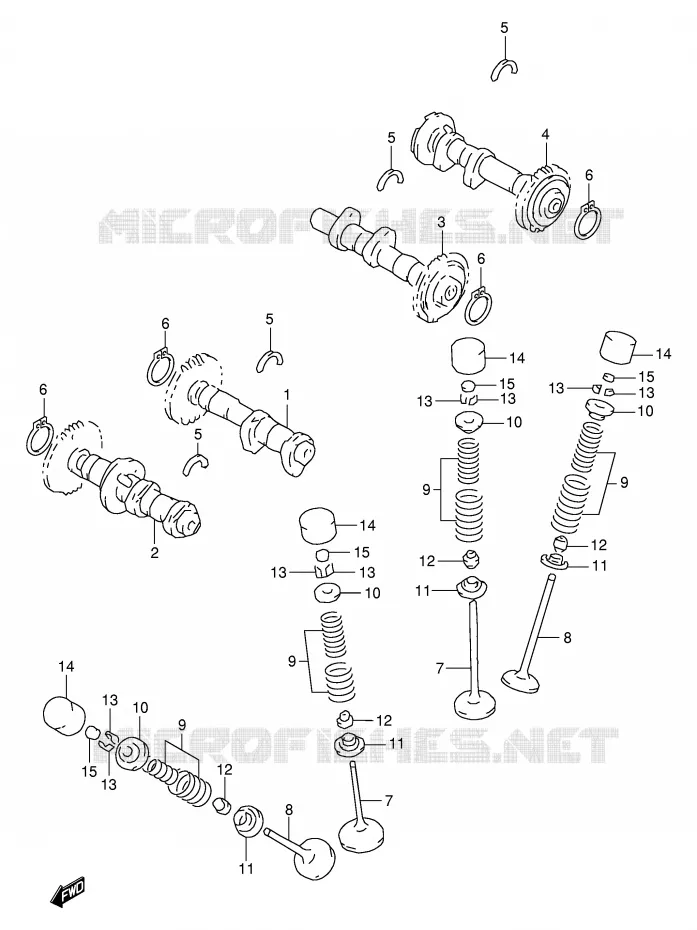

NOKKENAS - VALVES VOOR SUZUKI TL-S 1000 1999

TIMING

(1) 12701-02F50-000

CAM SHAFT ASSY, INTAKE FRONT

(1) 12701-02F00-000

INTAKE FRONT CAMSHAFT
CAM SHAFT ASSY, INTAKE FRONT

(1) 12701-02F10-000

DISCONTINUED

(1) 12701-02F40-000

INTAKE FR CAM SHAFT ASSY
CAM SHAFT ASSY, INTAKE FRONT

(2) 12702-02F00-000

EXHAUST FRONT CAMSHAFT
CAM SHAFT ASSY, EXHAUST FRONT

(2) 12702-02F40-000

EXHAUST FR CAMSHAFT ASSY
CAM SHAFT ASSY, EXHAUST FRONT

(2) 12702-02F50-000

CAM SHAFT ASSY, EXHAUST FRONT

(3) 12703-02F00-000

INTAKE REAR CAMSHAFT
CAM SHAFT ASSY, INTAKE REAR

(3) 12703-02F10-000

DISCONTINUED

(3) 12703-02F40-000

INTAKE RR CAMSHAFT ASSY
CAM SHAFT ASSY, INTAKE REAR

(3) 12703-02F50-000

CAM SHAFT ASSY, INTAKE REAR

(4) 12704-02F00-000

EXHAUST REAR CAMSHAFT
CAM SHAFT ASSY, EXHAUST REAR

(4) 12704-02F40-000

EXHAUST RR CAMSHAFT ASSY
CAM SHAFT ASSY, EXHAUST REAR

(4) 12704-02F50-000

CAM SHAFT ASSY, EXHAUST REAR

(5) 09390-22006-000

C RING

(5) 09390-22006-000

C RING

(5) 09390-22006-000

C RING

(5) 09390-22006-000

C RING

(6) 08331-3126A-000

CIRCLIP

(6) 08331-3126A-000

CIRCLIP

(6) 08331-3126A-000

CIRCLIP

(6) 08331-3126A-000

CIRCLIP

(6) 08331-3126A-000

CIRCLIP
CIRCLIP

(6) 08331-3126A-000

CIRCLIP
CIRCLIP

(6) 08331-3126A-000

CIRCLIP
CIRCLIP

(6) 08331-3126A-000

CIRCLIP
CIRCLIP

(7) 12911-02F00-000

VALVE, INTAKE

(7) 12911-02F00-000

VALVE, INTAKE

(8) 12912-02F00-000

VALVE, EXHAUST

(8) 12912-02F00-000

VALVE, EXHAUST

(9) 12920-02F10-000

SPRING SET, VALVE

(9) 12920-02F10-000

SPRING SET, VALVE

(9) 12920-02F10-000

SPRING SET, VALVE

(9) 12920-02F10-000

SPRING SET, VALVE

(9) 12920-02F00-000

VALVE SPRING SET
SPRING SET, VALVE

(9) 12920-02F00-000

VALVE SPRING SET
SPRING SET, VALVE

(9) 12920-02F00-000

VALVE SPRING SET
SPRING SET, VALVE

(9) 12920-02F00-000

VALVE SPRING SET
SPRING SET, VALVE

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED
RETAINER VALVE SPRING

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED
RETAINER VALVE SPRING

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED
RETAINER VALVE SPRING

(10) 12931-02F10-000

RETAINER VALVE SPRING
DISCONTINUED
RETAINER VALVE SPRING

(10) 12931-02F10-000

RETAINER, VALVE SPRING

(10) 12931-02F10-000

RETAINER, VALVE SPRING

(10) 12931-02F10-000

RETAINER, VALVE SPRING

(10) 12931-02F10-000

RETAINER, VALVE SPRING

(11) 12933-38400-000

SEAT, VALVE SPRING

(11) 12933-38400-000

SEAT, VALVE SPRING

(11) 12933-38400-000

SEAT, VALVE SPRING

(11) 12933-38400-000

SEAT, VALVE SPRING

(12) 09289-05015-000

SEAL,OIL
SEAL, VALVE STEM OIL

(12) 09289-05015-000

SEAL,OIL
SEAL, VALVE STEM OIL

(12) 09289-05015-000

SEAL,OIL
SEAL, VALVE STEM OIL

(12) 09289-05015-000

SEAL,OIL
SEAL, VALVE STEM OIL

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(13) 12932-24400-000

VALVE COTTER
COTTER, VALVE

(14) 12891-02F10-000

TAPPET

(14) 12891-02F10-000

TAPPET

(14) 12891-02F10-000

TAPPET

(14) 12891-02F10-000

TAPPET

(14) 12891-02F10-000

TAPPET
TAPPET

(14) 12891-02F10-000

TAPPET
TAPPET

(14) 12891-02F10-000

TAPPET
TAPPET

(14) 12891-02F10-000

TAPPET
TAPPET

(15) 12892-41C00-260

TAPPET SHIM 260
SHIM, TAPPET (T:2.60)

(15) 12892-41C00-260

TAPPET SHIM 260
SHIM, TAPPET (T:2.60)

(15) 12892-41C00-260

TAPPET SHIM 260
SHIM, TAPPET (T:2.60)

(15) 12892-41C00-260

TAPPET SHIM 260
SHIM, TAPPET (T:2.60)

(15) 12892-41C00-270

TAPPET SHIM 270
SHIM, TAPPET (T:2.70)

(15) 12892-41C00-270

TAPPET SHIM 270
SHIM, TAPPET (T:2.70)

(15) 12892-41C00-270

TAPPET SHIM 270
SHIM, TAPPET (T:2.70)

(15) 12892-41C00-270

TAPPET SHIM 270
SHIM, TAPPET (T:2.70)

(15) 12892-41C00-265

TAPPET SHIM 265
SHIM, TAPPET (T:2.65)

(15) 12892-41C00-265

TAPPET SHIM 265
SHIM, TAPPET (T:2.65)

(15) 12892-41C00-265

TAPPET SHIM 265
SHIM, TAPPET (T:2.65)

(15) 12892-41C00-265

TAPPET SHIM 265
SHIM, TAPPET (T:2.65)

(15) 12892-41C00-230

TAPPET SHIM 230
SHIM, TAPPET (T:2.30)

(15) 12892-41C00-230

TAPPET SHIM 230
SHIM, TAPPET (T:2.30)

(15) 12892-41C00-230

TAPPET SHIM 230
SHIM, TAPPET (T:2.30)

(15) 12892-41C00-230

TAPPET SHIM 230
SHIM, TAPPET (T:2.30)

(15) 12892-41C00-235

TAPPET SHIM 235
SHIM, TAPPET (T:2.35)

(15) 12892-41C00-235

TAPPET SHIM 235
SHIM, TAPPET (T:2.35)

(15) 12892-41C00-235

TAPPET SHIM 235
SHIM, TAPPET (T:2.35)

(15) 12892-41C00-235

TAPPET SHIM 235
SHIM, TAPPET (T:2.35)

(15) 12892-41C00-245

TAPPET SHIM 245
SHIM, TAPPET (T:2.45)

(15) 12892-41C00-245

TAPPET SHIM 245
SHIM, TAPPET (T:2.45)

(15) 12892-41C00-245

TAPPET SHIM 245
SHIM, TAPPET (T:2.45)

(15) 12892-41C00-245

TAPPET SHIM 245
SHIM, TAPPET (T:2.45)

(15) 12892-41C00-250

TAPPET SHIM 250
SHIM, TAPPET (T:2.50)

(15) 12892-41C00-250

TAPPET SHIM 250
SHIM, TAPPET (T:2.50)

(15) 12892-41C00-250

TAPPET SHIM 250
SHIM, TAPPET (T:2.50)

(15) 12892-41C00-250

TAPPET SHIM 250
SHIM, TAPPET (T:2.50)

(15) 12892-41C00-255

TAPPET SHIM 255
SHIM, TAPPET (T:2.55)

(15) 12892-41C00-255

TAPPET SHIM 255
SHIM, TAPPET (T:2.55)

(15) 12892-41C00-255

TAPPET SHIM 255
SHIM, TAPPET (T:2.55)

(15) 12892-41C00-255

TAPPET SHIM 255
SHIM, TAPPET (T:2.55)

(15) 12892-41C00-275

TAPPET SHIM 275
SHIM, TAPPET (T:2.75)

(15) 12892-41C00-275

TAPPET SHIM 275
SHIM, TAPPET (T:2.75)

(15) 12892-41C00-275

TAPPET SHIM 275
SHIM, TAPPET (T:2.75)

(15) 12892-41C00-275

TAPPET SHIM 275
SHIM, TAPPET (T:2.75)

(15) 12892-41C00-280

TAPPET SHIM 280
SHIM, TAPPET (T:2.80)

(15) 12892-41C00-280

TAPPET SHIM 280
SHIM, TAPPET (T:2.80)

(15) 12892-41C00-280

TAPPET SHIM 280
SHIM, TAPPET (T:2.80)

(15) 12892-41C00-280

TAPPET SHIM 280
SHIM, TAPPET (T:2.80)

(15) 12892-41C00-295

TAPPET SHIM 295
SHIM, TAPPET (T:2.95)

(15) 12892-41C00-295

TAPPET SHIM 295
SHIM, TAPPET (T:2.95)

(15) 12892-41C00-295

TAPPET SHIM 295
SHIM, TAPPET (T:2.95)

(15) 12892-41C00-295

TAPPET SHIM 295
SHIM, TAPPET (T:2.95)

(15) 12892-41C00-300

TAPPET SHIM 300
SHIM, TAPPET (T:3.00)

(15) 12892-41C00-300

TAPPET SHIM 300
SHIM, TAPPET (T:3.00)

(15) 12892-41C00-300

TAPPET SHIM 300
SHIM, TAPPET (T:3.00)

(15) 12892-41C00-300

TAPPET SHIM 300
SHIM, TAPPET (T:3.00)

(15) 12892-41C00-305

TAPPET SHIM 305
SHIM, TAPPET (T:3.05)

(15) 12892-41C00-305

TAPPET SHIM 305
SHIM, TAPPET (T:3.05)

(15) 12892-41C00-305

TAPPET SHIM 305
SHIM, TAPPET (T:3.05)

(15) 12892-41C00-305

TAPPET SHIM 305
SHIM, TAPPET (T:3.05)

(15) 12892-41C00-310

TAPPET SHIM 310
SHIM, TAPPET (T:3.10)

(15) 12892-41C00-310

TAPPET SHIM 310
SHIM, TAPPET (T:3.10)

(15) 12892-41C00-310

TAPPET SHIM 310
SHIM, TAPPET (T:3.10)

(15) 12892-41C00-310

TAPPET SHIM 310
SHIM, TAPPET (T:3.10)

(15) 12892-41C00-315

TAPPET SHIM 315
SHIM, TAPPET (T:3.15)

(15) 12892-41C00-315

TAPPET SHIM 315
SHIM, TAPPET (T:3.15)

(15) 12892-41C00-315

TAPPET SHIM 315
SHIM, TAPPET (T:3.15)

(15) 12892-41C00-315

TAPPET SHIM 315
SHIM, TAPPET (T:3.15)

(15) 12892-41C00-320

TAPPET SHIM 320
SHIM, TAPPET (T:3.20)

(15) 12892-41C00-320

TAPPET SHIM 320
SHIM, TAPPET (T:3.20)

(15) 12892-41C00-320

TAPPET SHIM 320
SHIM, TAPPET (T:3.20)

(15) 12892-41C00-320

TAPPET SHIM 320
SHIM, TAPPET (T:3.20)

(15) 12892-41C00-325

TAPPET SHIM 325
SHIM, TAPPET (T:3.25)

(15) 12892-41C00-325

TAPPET SHIM 325
SHIM, TAPPET (T:3.25)

(15) 12892-41C00-325

TAPPET SHIM 325
SHIM, TAPPET (T:3.25)

(15) 12892-41C00-325

TAPPET SHIM 325
SHIM, TAPPET (T:3.25)

(15) 12892-41C00-330

TAPPET SHIM 330
SHIM, TAPPET (T:3.30)

(15) 12892-41C00-330

TAPPET SHIM 330
SHIM, TAPPET (T:3.30)

(15) 12892-41C00-330

TAPPET SHIM 330
SHIM, TAPPET (T:3.30)

(15) 12892-41C00-330

TAPPET SHIM 330
SHIM, TAPPET (T:3.30)

(15) 12892-41C00-335

TAPPET SHIM 335
SHIM, TAPPET (T:3.35)

(15) 12892-41C00-335

TAPPET SHIM 335
SHIM, TAPPET (T:3.35)

(15) 12892-41C00-335

TAPPET SHIM 335
SHIM, TAPPET (T:3.35)

(15) 12892-41C00-335

TAPPET SHIM 335
SHIM, TAPPET (T:3.35)

(15) 12892-41C00-240

TAPPET SHIM 240
SHIM, TAPPET (T:2.40)

(15) 12892-41C00-240

TAPPET SHIM 240
SHIM, TAPPET (T:2.40)

(15) 12892-41C00-240

TAPPET SHIM 240
SHIM, TAPPET (T:2.40)

(15) 12892-41C00-240

TAPPET SHIM 240
SHIM, TAPPET (T:2.40)

(15) 12892-41C00-285

TAPPET SHIM 285
SHIM, TAPPET (T:2.85)

(15) 12892-41C00-285

TAPPET SHIM 285
SHIM, TAPPET (T:2.85)

(15) 12892-41C00-285

TAPPET SHIM 285
SHIM, TAPPET (T:2.85)

(15) 12892-41C00-285

TAPPET SHIM 285
SHIM, TAPPET (T:2.85)

(15) 12892-41C00-290

TAPPET SHIM 290
SHIM, TAPPET (T:2.90)

(15) 12892-41C00-290

TAPPET SHIM 290
SHIM, TAPPET (T:2.90)

(15) 12892-41C00-290

TAPPET SHIM 290
SHIM, TAPPET (T:2.90)

(15) 12892-41C00-290

TAPPET SHIM 290
SHIM, TAPPET (T:2.90)

(15) 12892-41C00-345

TAPPET SHIM 345
SHIM, TAPPET (T:3.45)

(15) 12892-41C00-345

TAPPET SHIM 345
SHIM, TAPPET (T:3.45)

(15) 12892-41C00-345

TAPPET SHIM 345
SHIM, TAPPET (T:3.45)

(15) 12892-41C00-345

TAPPET SHIM 345
SHIM, TAPPET (T:3.45)

(15) 12892-41C00-350

TAPPET SHIM 350
SHIM, TAPPET (T:3.50)

(15) 12892-41C00-350

TAPPET SHIM 350
SHIM, TAPPET (T:3.50)

(15) 12892-41C00-350

TAPPET SHIM 350
SHIM, TAPPET (T:3.50)

(15) 12892-41C00-350

TAPPET SHIM 350
SHIM, TAPPET (T:3.50)

(15) 12892-41C00-340

TAPPET SHIM 340
SHIM, TAPPET (T:3.40)

(15) 12892-41C00-340

TAPPET SHIM 340
SHIM, TAPPET (T:3.40)

(15) 12892-41C00-340

TAPPET SHIM 340
SHIM, TAPPET (T:3.40)

(15) 12892-41C00-340

TAPPET SHIM 340
SHIM, TAPPET (T:3.40)

(16) 12800-41810-000

SHIM SET TAPPET
SHIM SET, TAPPET INC.REF.NO.15-5~15-25 (5PCS.EACH) & NO.17

(17) 99000-69471-000

CASE, TAPPET SHIM

	Onderdeelnummer	Produkt	Aantal
# 1	12701-02F41-000 12701-02F50-000 1270102F41000	CAM SHAFT ASSY, INTAKE FRONT	394,66 €
# 1	12701-02F00-000 1270102F00000 1270102F00000	INTAKE FRONT CAMSHAFT CAM SHAFT ASSY, INTAKE FRONT	Niet beschikbaar	0,00 €
# 1	12701-02F10-000 1270102F10000 1270102F10000	DISCONTINUED	Niet beschikbaar	0,00 €
# 1	12701-02F40-000 1270102F40000 1270102F40000	INTAKE FR CAM SHAFT ASSY CAM SHAFT ASSY, INTAKE FRONT	Niet beschikbaar	0,00 €
# 2	12702-02F00-000 1270202F00000 1270202F00000	EXHAUST FRONT CAMSHAFT CAM SHAFT ASSY, EXHAUST FRONT	492,20 €
# 2	12702-02F40-000 1270202F40000 1270202F40000	EXHAUST FR CAMSHAFT ASSY CAM SHAFT ASSY, EXHAUST FRONT	484,47 €
# 2	12702-02F41-000 12702-02F50-000 1270202F41000	CAM SHAFT ASSY, EXHAUST FRONT	484,47 €
# 3	12703-02F00-000 1270302F00000 1270302F00000	INTAKE REAR CAMSHAFT CAM SHAFT ASSY, INTAKE REAR	Niet beschikbaar	0,00 €
# 3	12703-02F10-000 1270302F10000 1270302F10000	DISCONTINUED	Niet beschikbaar	0,00 €
# 3	12703-02F40-000 1270302F40000 1270302F40000	INTAKE RR CAMSHAFT ASSY CAM SHAFT ASSY, INTAKE REAR	Niet beschikbaar	0,00 €
# 3	12703-02F41-000 1270302F41000	CAM SHAFT ASSY, INTAKE REAR	Niet beschikbaar	0,00 €
# 4	12704-02F00-000 1270402F00000 1270402F00000	EXHAUST REAR CAMSHAFT CAM SHAFT ASSY, EXHAUST REAR	492,20 €
# 4	12704-02F40-000 1270402F40000 1270402F40000	EXHAUST RR CAMSHAFT ASSY CAM SHAFT ASSY, EXHAUST REAR	Niet beschikbaar	0,00 €
# 4	12704-02F41-000 1270402F41000	CAM SHAFT ASSY, EXHAUST REAR	Niet beschikbaar	0,00 €
# 5	09390-22006-000 0939022006000 0939022006000	C RING	3,13 €
# 6	08331-31266-000 08331-3126A-000 0833131266000	CIRCLIP	2,46 €
# 7	12911-02F00-000 1291102F00000 1291102F00000	VALVE, INTAKE	36,01 €
# 8	12912-02F00-000 1291202F00000 1291202F00000	VALVE, EXHAUST	46,47 €
# 9	12920-02F10-000 1292002F10000 1292002F10000	SPRING SET, VALVE	16,26 €
# 9	12920-02F00-000 1292002F00000 1292002F00000	VALVE SPRING SET SPRING SET, VALVE	Niet beschikbaar	0,00 €
# 10	12931-02F00-000 12931-02F10-000 1293102F00000	RETAINER VALVE SPRING DISCONTINUED	13,75 €
# 11	12933-38400-000 1293338400000 1293338400000	SEAT, VALVE SPRING	9,13 €
# 12	09289-05015-000 0928905015000 0928905015000	SEAL, OIL SEAL, VALVE STEM OIL	6,72 €
# 13	12932-24400-000 1293224400000 1293224400000	VALVE COTTER COTTER, VALVE	3,37 €
# 14	12891-02F00-000 12891-02F10-000 1289102F00000	TAPPET	53,92 €
# 15	12892-41C00-230 1289241C00230 1289241C00230	TAPPET SHIM 230 SHIM, TAPPET (T:2.30)	9,41 €
# 15	12892-41C00-235 1289241C00235 1289241C00235	TAPPET SHIM 235 SHIM, TAPPET (T:2.35)	9,41 €
# 15	12892-41C00-240 1289241C00240 1289241C00240	TAPPET SHIM 240 SHIM, TAPPET (T:2.40)	8,72 €
# 15	12892-41C00-245 1289241C00245 1289241C00245	TAPPET SHIM 245 SHIM, TAPPET (T:2.45)	9,41 €
# 15	12892-41C00-250 1289241C00250 1289241C00250	TAPPET SHIM 250 SHIM, TAPPET (T:2.50)	9,41 €
# 15	12892-41C00-255 1289241C00255 1289241C00255	TAPPET SHIM 255 SHIM, TAPPET (T:2.55)	9,41 €
# 15	12892-41C00-260 1289241C00260 1289241C00260	TAPPET SHIM 260 SHIM, TAPPET (T:2.60)	10,96 €
# 15	12892-41C00-265 1289241C00265 1289241C00265	TAPPET SHIM 265 SHIM, TAPPET (T:2.65)	10,16 €
# 15	12892-41C00-270 1289241C00270 1289241C00270	TAPPET SHIM 270 SHIM, TAPPET (T:2.70)	10,96 €
# 15	12892-41C00-275 1289241C00275 1289241C00275	TAPPET SHIM 275 SHIM, TAPPET (T:2.75)	9,41 €
# 15	12892-41C00-280 1289241C00280 1289241C00280	TAPPET SHIM 280 SHIM, TAPPET (T:2.80)	9,41 €
# 15	12892-41C00-285 1289241C00285 1289241C00285	TAPPET SHIM 285 SHIM, TAPPET (T:2.85)	8,72 €
# 15	12892-41C00-290 1289241C00290 1289241C00290	TAPPET SHIM 290 SHIM, TAPPET (T:2.90)	8,72 €
# 15	12892-41C00-295 1289241C00295 1289241C00295	TAPPET SHIM 295 SHIM, TAPPET (T:2.95)	9,41 €
# 15	12892-41C00-300 1289241C00300 1289241C00300	TAPPET SHIM 300 SHIM, TAPPET (T:3.00)	9,41 €
# 15	12892-41C00-305 1289241C00305 1289241C00305	TAPPET SHIM 305 SHIM, TAPPET (T:3.05)	9,41 €
# 15	12892-41C00-310 1289241C00310 1289241C00310	TAPPET SHIM 310 SHIM, TAPPET (T:3.10)	9,41 €
# 15	12892-41C00-315 1289241C00315 1289241C00315	TAPPET SHIM 315 SHIM, TAPPET (T:3.15)	9,41 €
# 15	12892-41C00-320 1289241C00320 1289241C00320	TAPPET SHIM 320 SHIM, TAPPET (T:3.20)	9,41 €
# 15	12892-41C00-325 1289241C00325 1289241C00325	TAPPET SHIM 325 SHIM, TAPPET (T:3.25)	9,41 €
# 15	12892-41C00-330 1289241C00330 1289241C00330	TAPPET SHIM 330 SHIM, TAPPET (T:3.30)	9,41 €
# 15	12892-41C00-335 1289241C00335 1289241C00335	TAPPET SHIM 335 SHIM, TAPPET (T:3.35)	9,41 €
# 15	12892-41C00-340 1289241C00340 1289241C00340	TAPPET SHIM 340 SHIM, TAPPET (T:3.40)	8,16 €
# 15	12892-41C00-345 1289241C00345 1289241C00345	TAPPET SHIM 345 SHIM, TAPPET (T:3.45)	8,72 €
# 15	12892-41C00-350 1289241C00350 1289241C00350	TAPPET SHIM 350 SHIM, TAPPET (T:3.50)	8,72 €
# 16	12800-41810-000 1280041810000 1280041810000	SHIM SET TAPPET SHIM SET, TAPPET INC.REF.NO.15-5~15-25 (5PCS.EACH) & NO.17	595,55 €
# 17	99000-69471-000 9900069471000 9900069471000	CASE, TAPPET SHIM	Niet beschikbaar	0,00 €

Houd er rekening mee dat de te koop aangeboden onderdelen onderdelen zijn uit de catalogus van de fabrikant, we moeten ze soms speciaal voor u bestellen bij Suzuki. Raadpleeg het gedeelte Verzending en Levering voor meer informatie over levertijden.
De schema's zijn niet contractueel, als u vragen heeft, staan onze professionals voor u klaar om u zo goed mogelijk te helpen en te adviseren.
Selecteer het gewenste onderdeelnummer in het diagram of raadpleeg de lijst hierboven om de informatie en prijzen met betrekking tot de verschillende onderdelen te vinden.
Zorg ervoor dat u de vereiste hoeveelheid bestelt wanneer u een onderdeel aan uw winkelwagentje toevoegt. Houd er rekening mee dat de aangegeven eenheidsprijs de prijs is voor elk onderdeelnummer in hoeveelheid 1.
Vind op deze pagina alle originele onderdelen met betrekking tot de NOKKENAS - VALVES van uw Suzuki TLS 1000 van TL-S. Laat het ons weten als u vragen heeft.
