| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

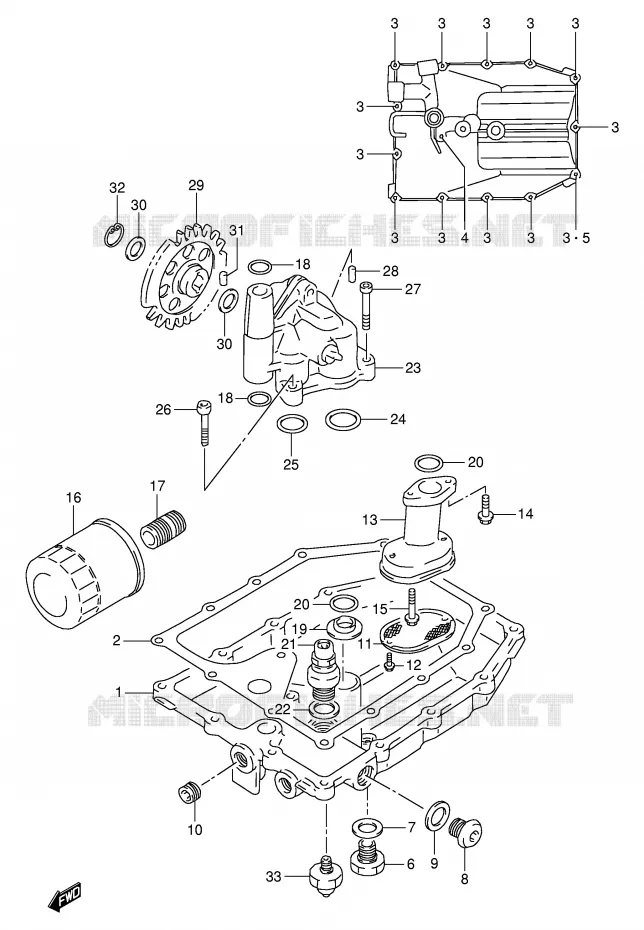

| # 1 |
11511-46E02-000 1151146E02000 1151146E02000 |
PAN, OIL
|
Niet beschikbaar | |||
| # 2 |
11489-17E01-000 1148917E01000 1148917E01000 |
OIL PAN GASKET
GASKET, OIL PAN |
Niet beschikbaar | |||
| # 3 |
01547-06253-000 01547-0625B-0000154706253000 |
BOLT. FINAL GEAR CASE COVER
BOLT |
||||
| # 3 |
01547-06257-000 0154706257000 0154706257000 |
BOLT
|
||||
| # 4 |
01547-06353-000 01547-0635B-0000154706353000 |
BOLT
|
||||
| # 4 |
01547-06357-000 0154706357000 0154706357000 |
BOLT 6X35
BOLT
|
||||
| # 5 |
09168-06024-000 0916806024000 0916806024000 |
WASHER
GASKET
|
||||
| # 6 |
09247-14001-000 09247-14002-0000924714001000 |
PLUG
PLUG, OIL DRAIN |
||||
| # 7 |
09168-14002-000 0916814002000 0916814002000 |
GASKET 13.8X18.8X4.8MM
GASKET
|
||||
| # 8 |
09248-16010-000 09248-16012-0000924816010000 |
PLUG, PLGR OUT
PLUG, OIL GALLERY |
||||
| # 9 |
09168-16002-000 0916816002000 0916816002000 |
GASKET
|
||||
| # 10 |
11532-46E00-000 1153246E00000 1153246E00000 |
JET
JET, OIL PAN GALLERY |
||||
| # 11 |
16520-38A00-000 1652038A00000 1652038A00000 |
OIL STRAINER
STRAINER, ENGINE OIL |
||||
| # 12 |
02112-75123-000 02112-7512A-0000211275123000 |
BOLT
|
||||
| # 12 |
01580-05123-000 0158005123000 0158005123000 |
BOLT
|
Niet beschikbaar | |||
| # 13 |
16525-46E01-000 1652546E01000 1652546E01000 |
PROTECTOR, OIL STRAIN
PROTECTOR, OIL STRAINER |
Niet beschikbaar | |||
| # 14 |
01517-06206-000 01550-0620B-0000151706206000 |
BOLT
BOLT 6X20 |
||||
| # 15 |
01517-06556-000 01550-0655B-0000151706556000 |
BOLT. HYDRAULIC UNIT NO.2
DISCONTINUED |
||||
| # 16 |
16510-34E00-000 16510-07J00-0001651034E00000 |
FILTER ASSY, ENGINE OIL
|
||||
| # 17 |
16591-06B00-000 16591-06B01-0001659106B00000 |
UNION. OIL FILTER STAND
UNION, OIL FILTER |
||||
| # 18 |
09280-12012-000 0928012012000 0928012012000 |
O-RING
O RING, OIL GALLERY (D:2.4, ID:11.8)
|
||||
| # 19 |
16529-27A01-000 1652927A01000 1652927A01000 |
OIL OUTLET GASKET
GASKET, OUTLET
|
||||
| # 20 |
09280-18009-000 0928018009000 0928018009000 |
O RING
O RING (D:3.2, ID:17.8)
|
||||
| # 21 |
16440-17C00-000 16440-17C10-0001644017C00000 |
VALVE ASSY, OIL RELIEF
|
||||
| # 22 |
09168-16002-000 0916816002000 0916816002000 |
GASKET
|
||||
| # 23 |
16400-46E00-000 1640046E00000 1640046E00000 |
OIL PUMP ASSY
PUMP ASSY, ENGINE OIL |
Niet beschikbaar | |||
| # 24 |
09280-26005-000 0928026005000 0928026005000 |
O RING
O RING (D:2.4, ID:26.2)
|
||||
| # 25 |
09280-18009-000 0928018009000 0928018009000 |
O RING
O RING (D:3.2, ID:17.8)
|
||||
| # 26 |
07110-06307-000 07130-0630B-0000711006307000 |
BOLT. MAGNETO STATOR
.BOLT |
||||
| # 27 |
07110-06357-000 07130-0635B-0000711006357000 |
.BOLT
|
||||
| # 28 |
04211-09129-000 0421109129000 0421109129000 |
PIN 9X12
PIN
|
||||
| # 29 |
16332-19C00-000 1633219C00000 1633219C00000 |
OIL PUMP DR GEAR
GEAR, OIL PUMP DRIVEN
|
||||
| # 30 |
08221-12205-000 0822112205000 0822112205000 |
WASHER
|
||||
| # 31 |
09261-05006-000 0926105006000 0926105006000 |
PIN
|
||||
| # 32 |
08331-31126-000 08331-3112A-0000833131126000 |
CIRCLIP
|
||||
| # 33 |
37820-33D00-000 37820-33D10-0003782033D00000 |
OIL PRESSURE SWITCH
SWITCH, OIL PRESSURE |
