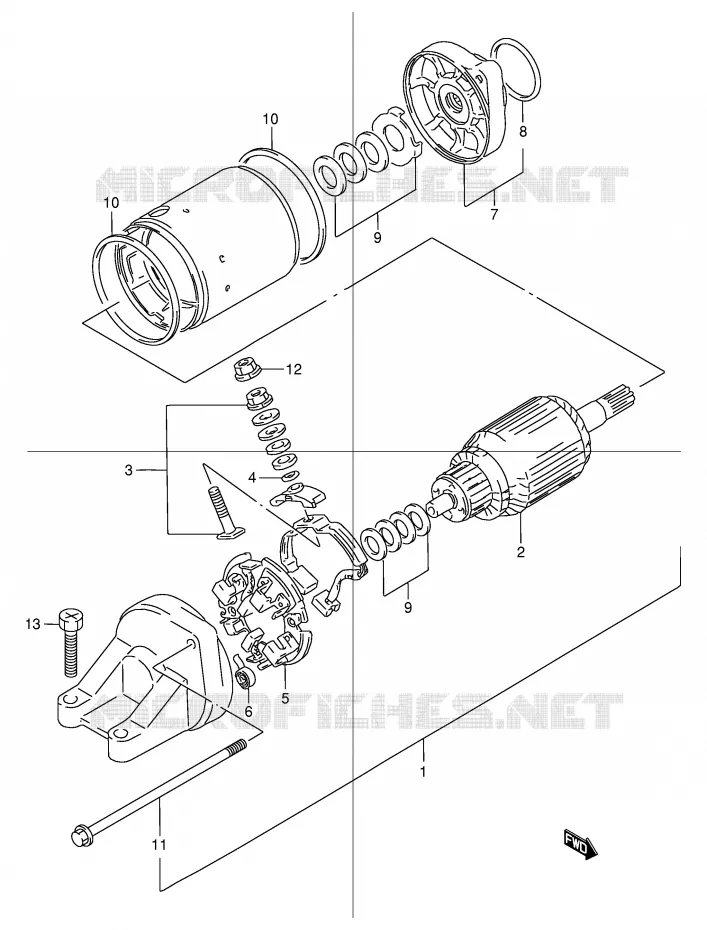

Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
---|---|---|---|---|---|---|
# 1 |
31100-26D10-000 3110026D10000 3110026D10000 |
MOTOR ASSY, STARTING
![]() |
||||
# 2 |
31310-40C02-000 3131040C02000 3131040C02000 |
ARMATURE
![]() |
||||
# 3 |
31130-38B00-000 3113038B00000 3113038B00000 |
BRUSH TERMINAL SET
TERMINAL SET, BRUSH ![]() |
||||
# 4 |
31143-49040-000 3114349040000 3114349040000 |
O RING
![]() |
||||
# 5 |
31132-38B00-000 3113238B00000 3113238B00000 |
BRUSH HOLDER SET
HOLDER SET, BRUSH ![]() |
||||
# 6 |
31135-38B00-000 3113538B00000 3113538B00000 |
BRUSH SPRING
SPRING, BRUSH ![]() |
||||
# 7 |
31150-26D00-000 3115026D00000 3115026D00000 |
BRACKET ASSY, FRONT
![]() |
||||
# 8 |
31156-48B00-000 3115648B00000 3115648B00000 |
O RING
![]() |
||||
# 9 |
31170-19B10-000 3117019B10000 3117019B10000 |
SHIM SET, STARTING MO
WASHER SET ![]() |
||||
# 10 |
31264-31300-000 3126431300000 |
O RING, STARTING MOTO
SQUARE RING |
Niet beschikbaar | |||
# 11 |
31280-26D00-000 3128026D00000 3128026D00000 |
BOLT
![]() |
||||
# 12 |
08361-35068-000 08361-3506A-0000836135068000 |
NUT
|
||||
# 13 |
09128-06024-000 09103-06212-0000912806024000 |
BOLT
SCREW (6X25) |
Suzuki GSX
Cilinderinhoud: 1200 cc Jaar: 2000 Model code GSX1200Y(E4)
