Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
42100-05303-000 4210005303000 4210005303000 |
STAND, CENTER
|
||||
| # 2 |
42211-36501-000 4221136501000 |
ZENTRALST?NDERACHSE UH125
DISCONTINUED |
Niet beschikbaar | |||
| # 3 |
04111-30308-000 04111-3030A-0000411130308000 |
COTTER PIN
|
||||
| # 4 |
09443-18003-000 09443-18006-XC00944318003000 |
SPRING
|
||||
| # 4A |
09443-15013-000 0944315013000 0944315013000 |
SPRING
SPRING, NO.1
|
||||
| # 4B |
09443-22003-000 0944322003000 0944322003000 |
SPRING
REORDER ROBINSONS
|
||||
| # 5 |
09321-10001-000 0932110001000 0932110001000 |
CUSHION
|
||||
| # 6 |
42310-05300-000 4231005300000 4231005300000 |
STAND, SIDE
STAND, PROP |
||||
| # 6 |
42310-05310-000 4231005310000 4231005310000 |
STAND, SIDE
STAND, PROP |
Niet beschikbaar | |||
| # 7 |
09443-17007-000 0944317007000 0944317007000 |
SPRING
|
||||
| # 7 |
09443-17011-000 09443-17011-XC00944317011000 |
SPRING
|
||||
| # 8 |
09100-10067-000 0910010067000 0910010067000 |
BOLT
BOLT (10X30)
|
||||
| # 8 |
09111-10047-000 0911110047000 0911110047000 |
BOLT L:30
BOLT
|
||||
| # 8 |
09100-10501-000 0910010501000 0910010501000 |
BOLT
|
Niet beschikbaar | |||
| # 9 |
08310-00107-000 0831000107000 0831000107000 |
NUT
|
||||
| # 9 |
09140-10043-000 0914010043000 0914010043000 |
NUT
|
||||
| # 10 |
42310-05310-000 4231005310000 4231005310000 |
STAND, SIDE
STAND, PROP |
Niet beschikbaar | |||
| # 10 |
42310-05320-000 4231005320000 4231005320000 |
STAND, PROP
|
Niet beschikbaar | |||
| # 11 |
09443-17011-000 09443-17011-XC00944317011000 |
SPRING
|
||||
| # 11A |
09443-12025-000 0944312025000 0944312025000 |
SPRING
SPRING, NO.1 |
||||
| # 11B |
09443-19006-000 0944319006000 0944319006000 |
SPRING
SPRING, NO.2 |
||||
| # 12 |
09100-10187-000 0910010187000 0910010187000 |
BOLT 10X34
BOLT
|
||||
| # 12 |
09111-10019-000 09111-10047-0000911110019000 |
BOLT L:30
BOLT |
||||
| # 13 |
08310-00107-000 0831000107000 0831000107000 |
NUT
|
||||
| # 13 |
09159-10060-000 0915910060000 0915910060000 |
NUT
|
||||
| # 14 |
42310-05320-000 4231005320000 4231005320000 |
STAND, PROP
|
Niet beschikbaar | |||
| # 15 |
09443-12025-000 0944312025000 0944312025000 |
SPRING
SPRING, INNER |
||||
| # 16 |
09443-19006-000 0944319006000 0944319006000 |
SPRING
SPRING, OUTER |
||||
| # 17 |
09100-10067-000 0910010067000 0910010067000 |
BOLT
|
||||
| # 18 |
09140-10043-000 0914010043000 0914010043000 |
NUT
|

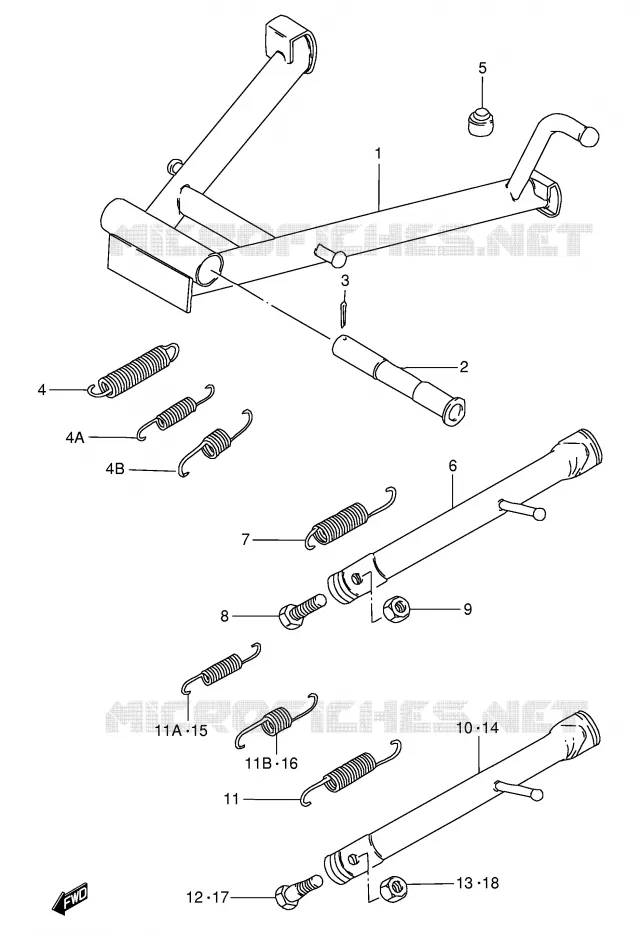

Suzuki GN
Cilinderinhoud: 125 cc Jaar: 1994 Model code GN125ER(E1)
