| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

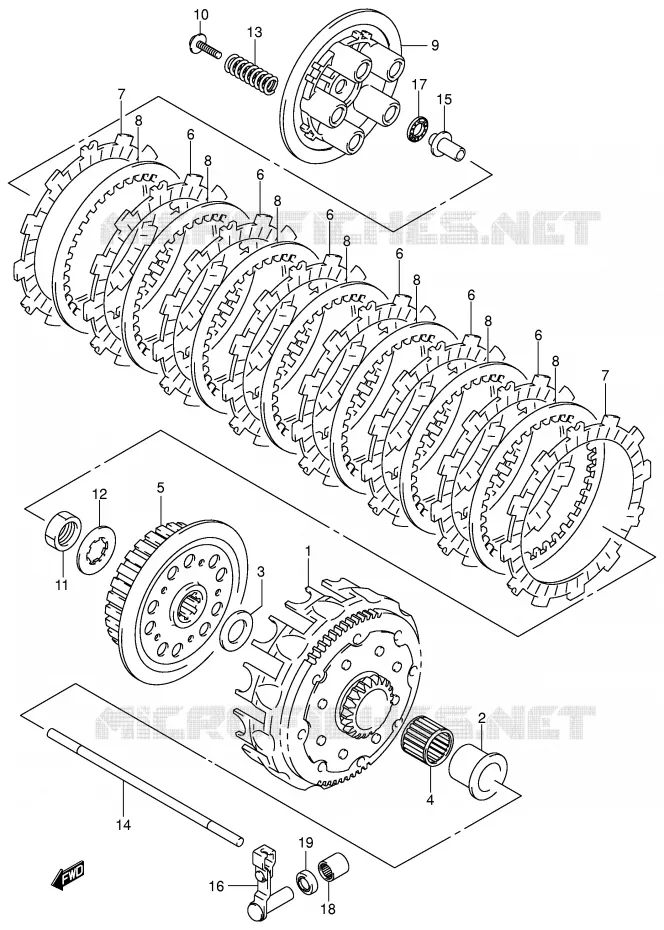

| # 1 |
21200-36F00-000 2120036F00000 2120036F00000 |
GEAR ASSY, PRIMARY DRIVEN
|
||||
| # 2 |
21251-43D00-000 2125143D00000 2125143D00000 |
SPACER
|
||||
| # 3 |
08211-20363-000 0821120363000 0821120363000 |
WASHER, THRUST
WASHER |
||||
| # 4 |
09263-25046-000 0926325046000 0926325046000 |
NTN R3 25X30X22
BEARING (25X30X22) |
||||
| # 5 |
21411-43D04-000 2141143D04000 2141143D04000 |
HUB, CLUTCH SLEEVE
|
||||
| # 6 |
21441-36F00-000 2144136F00000 2144136F00000 |
PLATE, CLUTCH DRIVE
|
||||
| # 7 |
21441-36F10-000 2144136F10000 2144136F10000 |
PLATE, CLUTCH DRIVE
|
||||
| # 8 |
21451-43D00-000 2145143D00000 2145143D00000 |
CLUTCH DRIVEN PLATE
PLATE, CLUTCH DRIVEN |
||||
| # 9 |
21462-43D01-000 2146243D01000 2146243D01000 |
CLUTCH PRESSURE DISK
DISC, CLUTCH PRESSURE |
||||
| # 10 |
09116-05019-000 0911605019000 0911605019000 |
BOLT
BOLT (5X18) |
||||
| # 11 |
09140-20001-000 0914020001000 0914020001000 |
NUT 20MM
NUT
|
||||
| # 12 |
09167-20006-000 0916720006000 0916720006000 |
WASHER, LOCK
WASHER
|
||||
| # 13 |
09440-18030-000 0944018030000 0944018030000 |
SPRING
|
||||
| # 14 |
23110-36F00-000 2311036F00000 2311036F00000 |
ROD, CLUTCH PUSH
|
||||
| # 15 |
23121-37F00-000 2312137F00000 2312137F00000 |
PIECE, CLUTCH PUSH
|
||||
| # 16 |
23200-36E11-000 2320036E11000 2320036E11000 |
CLUTCH RELEASE CAMSHAFT
CAMSHAFT, CLUTCH RELEASE |
||||
| # 17 |
09263-10002-000 0926310002000 0926310002000 |
CROYDON T 10X22X3
BEARING (10.1X22X2.8) |
||||
| # 18 |
09263-10007-000 0926310007000 0926310007000 |
IKO R3 10X14X15 *
BEARING (10X14X15) |
||||
| # 19 |
09285-10004-000 0928510004000 0928510004000 |
OIL SEAL
SEAL (10X17X5.0)
|
Suzuki RM
Cilinderinhoud: 125 cc Jaar: 2006 Model code RM125 K6 (E03,E28,E33)
