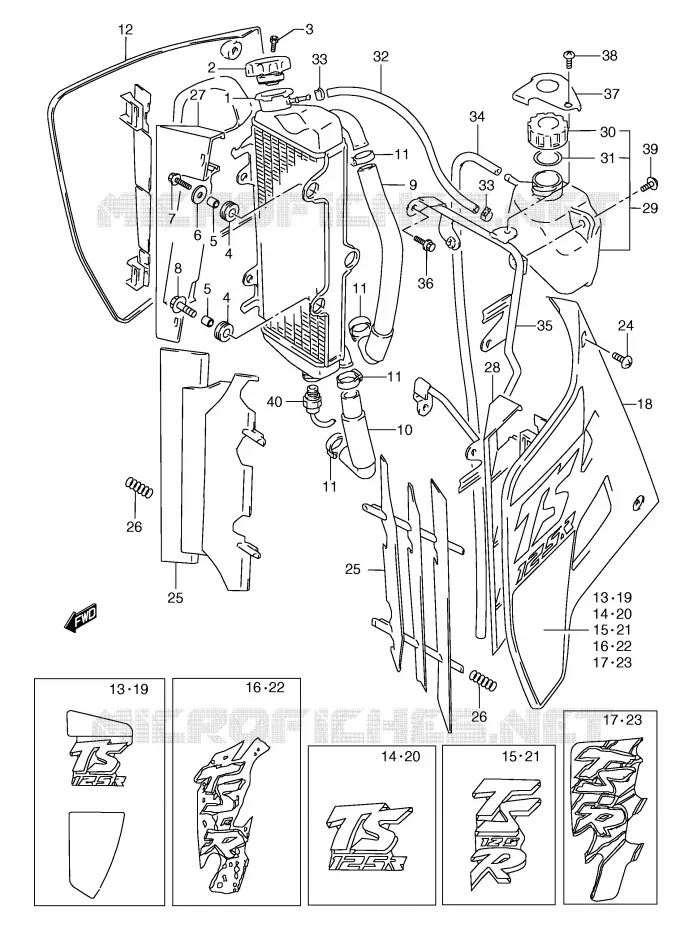

RADIATOR (MODELE K / L / M / N) VOOR SUZUKI TS-R 125 1990

RADIATOR (MODELE P / R)

(1) 17710-03D12-000

RADIATOR, WATER

(1) 17710-03D02-000

RADIATOR, WATER

(2) 17730-13A01-000

RADIATOR CAP
CAP, RADIATOR (0.9)

(3) 17733-03D10-000

SCREW
SCREW, RADIATOR CAP

(4) 17787-19A00-000

CUSHION
CUSHION, RADIATOR

(4) 17787-19A00-000

CUSHION
CUSHION, RADIATOR

(5) 09180-07004-000

SPACER

(5) 09180-07004-000

SPACER

(6) 09160-06114-000

WASHER,6.5X24X1.2
WASHER

(7) 01550-0625B-000

BOLT
BOLT, CENTER

(8) 09116-06149-000

BOLT (6X20)

(9) 17851-03D00-000

INLET HOSE
HOSE, RADIATOR,INLET

(10) 17852-03D00-000

OUTLET HOSE
HOSE, RADIATOR,OUTLET

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE
CLAMP

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE
CLAMP

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE
CLAMP

(11) 09402-28511-000

CLAMP
CLAMP,RADIATOR HOSE
CLAMP

(12) 17761-03D00-25Y

COVER,RADIATOR,R
COVER, RADIATOR,RH (YELLOW)

(12) 17761-03D00-30H

RH RADIATOR COVER
COVER, RADIATOR,RH (WHITE)

(12) 17761-03D00-0NF

COVER,RADIATOR,R
COVER, RADIATOR,RH (BLUE)

(12) 17761-03D00-14C

RH RADIATOR COVER
COVER, RADIATOR,RH (RED)

(13) 68660-03D01-0MM

TAPE SET
TAPE SET, RADIATOR COVER,RH

(13) 68660-03D01-0MM

TAPE SET
TAPE SET, RADIATOR COVER,RH

(13) 68660-03D01-0MP

TAPE SET
TAPE SET, RADIATOR COVER,RH

(13) 68660-03D01-0MP

TAPE SET
TAPE SET, RADIATOR COVER,RH

(14) 68661-03D00-2DP

EMBLEM, RADIATOR COVER,RH

(14) 68661-03D00-2DP

EMBLEM, RADIATOR COVER,RH

(15) 68661-03D10-3MB

EMBLEM,RADIATOR COVE
EMBLEM, RADIATOR COVER,RH

(15) 68661-03D10-3MB

EMBLEM,RADIATOR COVE
EMBLEM, RADIATOR COVER,RH

(15) 68661-03D10-B12

EMBLEM,RADIATOR COVE
EMBLEM, RADIATOR COVER,RH

(15) 68661-03D10-B12

EMBLEM,RADIATOR COVE
EMBLEM, RADIATOR COVER,RH

(15) 68661-03D10-B52

EMBLEM, RADIATOR COVER,RH

(15) 68661-03D10-B52

EMBLEM, RADIATOR COVER,RH

(16) 68665-03D00-1DV

AUTOCOLANTE
TAPE, RADIATOR COVER,RH

(16) 68665-03D00-1DV

AUTOCOLANTE
TAPE, RADIATOR COVER,RH

(16) 68665-03D00-1DW

AUTOCOLANTE
TAPE, RADIATOR COVER,RH

(16) 68665-03D00-1DW

AUTOCOLANTE
TAPE, RADIATOR COVER,RH

(16) 68665-03D00-1DY

TAPE,RADIATOR COVER,
TAPE, RADIATOR COVER,RH

(16) 68665-03D00-1DY

TAPE,RADIATOR COVER,
TAPE, RADIATOR COVER,RH

(16) 68665-03D00-N52

TAPE, RADIATOR COVER,RH

(16) 68665-03D00-N52

TAPE, RADIATOR COVER,RH

(16) 68665-03D00-N53

TAPE, RADIATOR COVER,RH

(16) 68665-03D00-N53

TAPE, RADIATOR COVER,RH

(17) 68665-03D10-N52

AUTOCOLANTE
TAPE, RADIATOR COVER,RH

(17) 68665-03D10-N52

AUTOCOLANTE
TAPE, RADIATOR COVER,RH

(17) 68665-03D10-N53

TAPE, RADIATOR COVER,RH

(17) 68665-03D10-N53

TAPE, RADIATOR COVER,RH

(18) 17762-03D00-25Y

COVER,RADIATOR,L
COVER, RADIATOR,LH (YELLOW)

(18) 17762-03D00-30H

LH RADIATOR COVER
COVER, RADIATOR,LH (WHITE)

(18) 17762-03D00-0NF

COVER,RADIATOR,L
COVER, RADIATOR,LH (BLUE)

(18) 17762-03D00-14C

LH RADIATOR COVER
COVER, RADIATOR,LH (RED)

(19) 68670-03D01-0MM

TAPE SET
TAPE SET, RADIATOR COVER,LH

(19) 68670-03D01-0MM

TAPE SET
TAPE SET, RADIATOR COVER,LH

(19) 68670-03D01-0MP

TAPE SET, RADIATOR COVER,LH

(19) 68670-03D01-0MP

TAPE SET, RADIATOR COVER,LH

(20) 68671-03D00-2DP

EMBLEM,RADIATOR COVE
EMBLEM, RADIATOR COVER,LH

(20) 68671-03D00-2DP

EMBLEM,RADIATOR COVE
EMBLEM, RADIATOR COVER,LH

(21) 68671-03D10-3MB

EMBLEM, RADIATOR,LH

(21) 68671-03D10-3MB

EMBLEM, RADIATOR,LH

(21) 68671-03D10-B12

EMBLEM, RADIATOR,LH

(21) 68671-03D10-B12

EMBLEM, RADIATOR,LH

(21) 68671-03D10-B52

EMBLEM, RADIATOR,LH

(21) 68671-03D10-B52

EMBLEM, RADIATOR,LH

(22) 68675-03D00-1DV

AUTOCOLANTE
TAPE, RADIATOR COVER,LH

(22) 68675-03D00-1DV

AUTOCOLANTE
TAPE, RADIATOR COVER,LH

(22) 68675-03D00-1DW

AUTOCOLANTE
TAPE, RADIATOR COVER,LH

(22) 68675-03D00-1DW

AUTOCOLANTE
TAPE, RADIATOR COVER,LH

(22) 68675-03D00-1DY

TAPE,RADIATOR COVER,
TAPE, RADIATOR COVER,LH

(22) 68675-03D00-1DY

TAPE,RADIATOR COVER,
TAPE, RADIATOR COVER,LH

(22) 68675-03D00-N52

TAPE, RADIATOR COVER,LH

(22) 68675-03D00-N52

TAPE, RADIATOR COVER,LH

(22) 68675-03D00-N53

TAPE, RADIATOR COVER,LH

(22) 68675-03D00-N53

TAPE, RADIATOR COVER,LH

(23) 68675-03D10-N52

TAPE, RADIATOR COVER,LH

(23) 68675-03D10-N52

TAPE, RADIATOR COVER,LH

(23) 68675-03D10-N53

TAPE.RADIATOR COVER.L
TAPE, RADIATOR COVER,LH

(23) 68675-03D10-N53

TAPE.RADIATOR COVER.L
TAPE, RADIATOR COVER,LH

(24) 02142-06107-000

SCREW

(25) 17821-03D00-000

RADIATOR LOUVER
LOUVER, RADIATOR

(25) 17821-03D00-000

RADIATOR LOUVER
LOUVER, RADIATOR

(26) 09446-11002-XC0

SPRING

(26) 09446-11002-XC0

SPRING

(26) 09446-11002-XC0

SPRING
SPRING

(26) 09446-11002-XC0

SPRING
SPRING

(27) 17822-03D00-000

RH GUARD
GUARD, RADIATOR LOUVER,RH

(28) 17823-03D00-000

LH GUARD
GUARD, RADIATOR LOUVER,LH

(29) 17910-03D01-000

TANK ASSY,RESERVOIR
TANK ASSY, RESERVE

(30) 17845-13700-000

RESERV TANK CAP
CAP

(31) 17844-13700-000

GASKET

(32) 09352-50901-600

HOSE,5X9X600
HOSE (5X9X300)

(33) 09401-08413-000

CLIP

(33) 09401-08413-000

CLIP

(34) 09352-50901-00B

HOSE,5X9X2000
.HOSE (5X9X1000Â†’700)

(35) 17920-03D00-000

HOLDER
HOLDER, RESERVE TANK

(36) KIT47370-40H00

KIT47370-40H00
BOLT REFER TO FIG.52A(H-10) FOR MO

(37) 17934-03D00-000

PLATE
PLATE, RESERVE TANK CAP

(38) 02112-0610B-000

SCREW

(39) 09136-06061-000

SCREW,6X16
SCREW (6X6)

(40) 34850-03D00-000

WATER TEMP SWITCH
GAUGE ASSY, WATER TEMP

	Onderdeelnummer	Produkt	Aantal
# 1	17710-03D12-000 1771003D12000 1771003D12000	RADIATOR, WATER	494,47 €
# 1	17710-03D02-000 1771003D02000 1771003D02000	RADIATOR, WATER	Niet beschikbaar	0,00 €
# 2	17730-03D00-000 17730-13A01-000 1773003D00000	RADIATOR CAP CAP, RADIATOR (0.9)	106,66 €
# 3	17733-03D00-000 17733-03D10-000 1773303D00000	SCREW SCREW, RADIATOR CAP	4,06 €
# 4	17787-19A00-000 1778719A00000 1778719A00000	CUSHION CUSHION, RADIATOR	6,12 €
# 5	09180-07004-000 0918007004000 0918007004000	SPACER	2,73 €
# 6	09160-06113-000 09160-06114-000 0916006113000	WASHER, 6.5X24X1.2 WASHER	2,26 €
# 7	01517-06254-000 01550-0625B-000 0151706254000	BOLT BOLT, CENTER	2,73 €
# 8	09116-06149-000 0911606149000 0911606149000	BOLT (6X20)	4,24 €
# 9	17851-03D00-000 1785103D00000 1785103D00000	INLET HOSE HOSE, RADIATOR, INLET	Niet beschikbaar	0,00 €
# 10	17852-03D00-000 1785203D00000 1785203D00000	OUTLET HOSE HOSE, RADIATOR, OUTLET	Niet beschikbaar	0,00 €
# 11	09402-25502-000 09402-28511-000 0940225502000	CLAMP CLAMP, RADIATOR HOSE	7,96 €
# 12	17761-03D00-25Y 1776103D0025Y 1776103D0025Y	COVER, RADIATOR, R COVER, RADIATOR, RH (YELLOW)	38,29 €
# 12	17761-03D00-30H 1776103D0030H 1776103D0030H	RH RADIATOR COVER COVER, RADIATOR, RH (WHITE)	36,14 €
# 12	17761-03D00-0NF 1776103D000NF 1776103D000NF	COVER, RADIATOR, R COVER, RADIATOR, RH (BLUE)	Niet beschikbaar	0,00 €
# 12	17761-03D00-14C 1776103D0014C 1776103D0014C	RH RADIATOR COVER COVER, RADIATOR, RH (RED)	Niet beschikbaar	0,00 €
# 13	68660-03D01-0MM 6866003D010MM 6866003D010MM	TAPE SET TAPE SET, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 13	68660-03D01-0MP 6866003D010MP 6866003D010MP	TAPE SET TAPE SET, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 14	68661-03D00-2DP 6866103D002DP 6866103D002DP	EMBLEM, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 15	68661-03D10-3MB 6866103D103MB 6866103D103MB	EMBLEM, RADIATOR COVE EMBLEM, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 15	68661-03D10-B12 6866103D10B12 6866103D10B12	EMBLEM, RADIATOR COVE EMBLEM, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 15	68661-03D10-B52 6866103D10B52 6866103D10B52	EMBLEM, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 16	68665-03D00-1DV 6866503D001DV 6866503D001DV	AUTOCOLANTE TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 16	68665-03D00-1DW 6866503D001DW 6866503D001DW	AUTOCOLANTE TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 16	68665-03D00-1DY 6866503D001DY 6866503D001DY	TAPE, RADIATOR COVER, TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 16	68665-03D00-N52 6866503D00N52 6866503D00N52	TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 16	68665-03D00-N53 6866503D00N53 6866503D00N53	TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 17	68665-03D10-N52 6866503D10N52 6866503D10N52	AUTOCOLANTE TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 17	68665-03D10-N53 6866503D10N53 6866503D10N53	TAPE, RADIATOR COVER, RH	Niet beschikbaar	0,00 €
# 18	17762-03D00-25Y 1776203D0025Y 1776203D0025Y	COVER, RADIATOR, L COVER, RADIATOR, LH (YELLOW)	40,37 €
# 18	17762-03D00-30H 1776203D0030H 1776203D0030H	LH RADIATOR COVER COVER, RADIATOR, LH (WHITE)	36,14 €
# 18	17762-03D00-0NF 1776203D000NF 1776203D000NF	COVER, RADIATOR, L COVER, RADIATOR, LH (BLUE)	Niet beschikbaar	0,00 €
# 18	17762-03D00-14C 1776203D0014C 1776203D0014C	LH RADIATOR COVER COVER, RADIATOR, LH (RED)	Niet beschikbaar	0,00 €
# 19	68670-03D01-0MM 6867003D010MM 6867003D010MM	TAPE SET TAPE SET, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 19	68670-03D01-0MP 6867003D010MP 6867003D010MP	TAPE SET, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 20	68671-03D00-2DP 6867103D002DP 6867103D002DP	EMBLEM, RADIATOR COVE EMBLEM, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 21	68671-03D10-3MB 6867103D103MB 6867103D103MB	EMBLEM, RADIATOR, LH	Niet beschikbaar	0,00 €
# 21	68671-03D10-B12 6867103D10B12 6867103D10B12	EMBLEM, RADIATOR, LH	Niet beschikbaar	0,00 €
# 21	68671-03D10-B52 6867103D10B52 6867103D10B52	EMBLEM, RADIATOR, LH	Niet beschikbaar	0,00 €
# 22	68675-03D00-1DV 6867503D001DV 6867503D001DV	AUTOCOLANTE TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 22	68675-03D00-1DW 6867503D001DW 6867503D001DW	AUTOCOLANTE TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 22	68675-03D00-1DY 6867503D001DY 6867503D001DY	TAPE, RADIATOR COVER, TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 22	68675-03D00-N52 6867503D00N52 6867503D00N52	TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 22	68675-03D00-N53 6867503D00N53 6867503D00N53	TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 23	68675-03D10-N52 6867503D10N52 6867503D10N52	TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 23	68675-03D10-N53 6867503D10N53 6867503D10N53	TAPE.RADIATOR COVER.L TAPE, RADIATOR COVER, LH	Niet beschikbaar	0,00 €
# 24	02142-06108-000 02142-06107-000 0214206108000	SCREW	2,88 €
# 25	17821-03D00-000 1782103D00000 1782103D00000	RADIATOR LOUVER LOUVER, RADIATOR	Niet beschikbaar	0,00 €
# 26	09446-11002-000 09446-11002-XC0 0944611002000	SPRING	2,73 €
# 27	17822-03D00-000 1782203D00000 1782203D00000	RH GUARD GUARD, RADIATOR LOUVER, RH	Niet beschikbaar	0,00 €
# 28	17823-03D00-000 1782303D00000 1782303D00000	LH GUARD GUARD, RADIATOR LOUVER, LH	Niet beschikbaar	0,00 €
# 29	17910-03D01-000 1791003D01000 1791003D01000	TANK ASSY, RESERVOIR TANK ASSY, RESERVE	50,62 €
# 30	17845-13700-000 1784513700000 1784513700000	RESERV TANK CAP CAP	Niet beschikbaar	0,00 €
# 31	17844-13700-000 1784413700000 1784413700000	GASKET	5,35 €
# 32	09352-50901-300 09352-50901-600 0935250901300	HOSE, 5X9X600 HOSE (5X9X300)	8,39 €
# 33	09401-08407-000 0940108407000	CLIP	Niet beschikbaar	0,00 €
# 34	09352-50901-00A 09352-50901-00B 093525090100A	HOSE, 5X9X2000 .HOSE (5X9X1000Â†’700)	19,59 €
# 35	17920-03D00-000 1792003D00000 1792003D00000	HOLDER HOLDER, RESERVE TANK	Niet beschikbaar	0,00 €
# 36	01517-06164-000 0151706164000	KIT47370-40H00 BOLT REFER TO FIG.52A(H-10) FOR MO	Niet beschikbaar	0,00 €
# 37	17934-03D00-000 1793403D00000 1793403D00000	PLATE PLATE, RESERVE TANK CAP	Niet beschikbaar	0,00 €
# 38	02112-06104-000 02112-0610B-000 0211206104000	SCREW	2,42 €
# 39	09136-06061-000 0913606061000 0913606061000	SCREW, 6X16 SCREW (6X6)	3,08 €
# 40	34850-03D00-000 3485003D00000 3485003D00000	WATER TEMP SWITCH GAUGE ASSY, WATER TEMP	67,90 €
