| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
13405-22H00-000 1340522H00000 1340522H00000 |

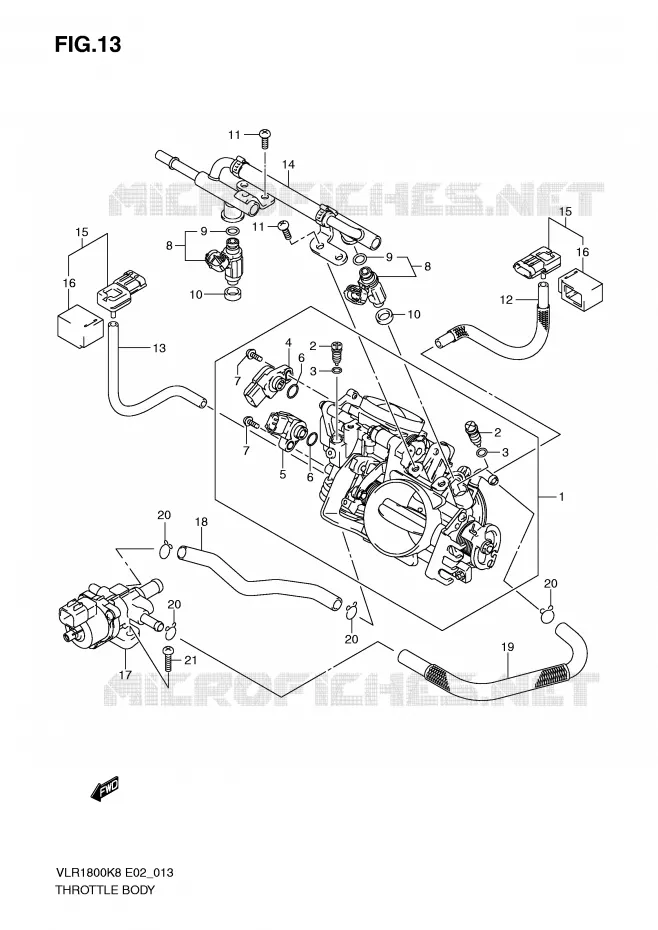

BODY, THROTTLE
|
||||
| # 2 |
13269-48G00-000 1326948G00000 1326948G00000 |
ADJUSTER
|
||||
| # 3 |
13521-29FA0-000 1352129FA0000 1352129FA0000 |
O RING
|
||||
| # 4 |
13580-48G10-000 1358048G10000 1358048G10000 |
SENSOR ASSY
|
||||
| # 5 |
13580-48G00-000 1358048G00000 1358048G00000 |
SENSOR ASSY
|
||||
| # 6 |
13575-29G00-000 13575-29G01-0001357529G00000 |
O RING
|
||||
| # 7 |
13605-02F00-000 1360502F00000 1360502F00000 |
SCREW
|
||||
| # 8 |
15710-48G00-000 1571048G00000 1571048G00000 |
INJECTOR ASSY
|
||||
| # 9 |
15717-16G00-000 1571716G00000 1571716G00000 |
O RING
|
||||
| # 10 |
15722-29G00-000 1572229G00000 1572229G00000 |
SEAL
|
||||
| # 11 |
13602-06148-000 1360206148000 1360206148000 |
SCREW
|
||||
| # 12 |
13683-22H00-000 1368322H00000 1368322H00000 |
HOSE
|
||||
| # 13 |
13683-48G10-000 1368348G10000 1368348G10000 |
HOSE
|
||||
| # 14 |
15730-48G01-000 1573048G01000 1573048G01000 |
PIPE ASSY, DELIVERY
|
||||
| # 15 |
15630-29G10-000 1563029G10000 1563029G10000 |
SENSOR, PRESSURE
|
||||
| # 16 |
15625-29G00-000 1562529G00000 1562529G00000 |
COVER
|
||||
| # 17 |
18117-22H00-000 1811722H00000 1811722H00000 |
VALVE, ISC
|
||||
| # 18 |
13697-22H00-000 1369722H00000 1369722H00000 |
HOSE, RH
|
||||
| # 19 |
13698-22H00-000 1369822H00000 1369822H00000 |
HOSE, LH
|
||||
| # 20 |
09401-13102-000 09401-13102-A050940113102000 |
CLIP
|
||||
| # 21 |
03111-0625A-000 031110625A000 031110625A000 |
SCREW
|
Suzuki INTRUDER
Cilinderinhoud: 1800 cc Jaar: 2009 Model code VLR1800K9(E2)
