| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
69600-20K00-000 6960020K00000 6960020K00000 |

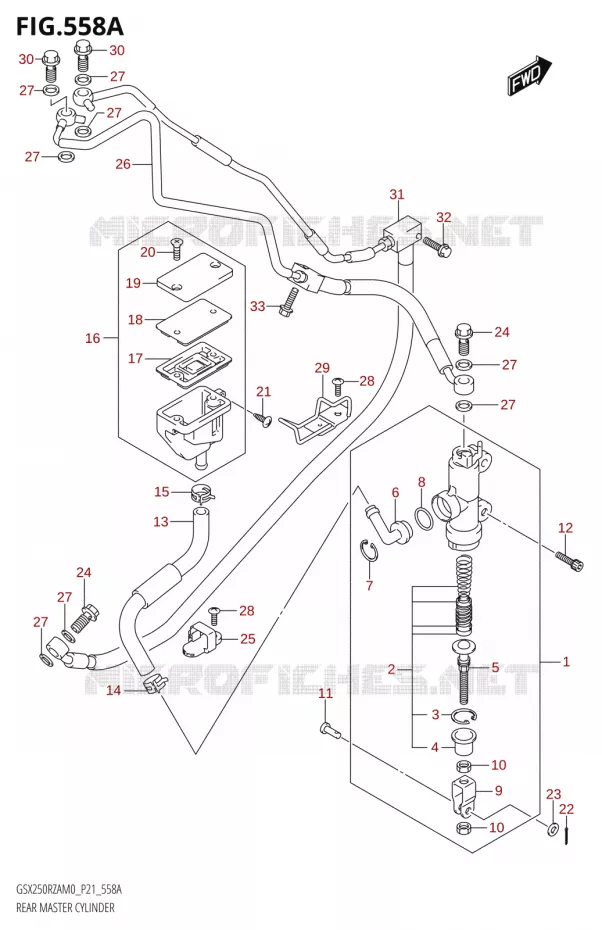

CYLINDER. RR MASTER GSX250RJ
CYLINDER ASSY, REAR MASTER |
||||
| # 2 |
69600-40820-000 6960040820000 6960040820000 |
PISTON/CUP SET GSX250RJ/L8
.PISTON/CUP SET |
||||
| # 3 |
69665-47H00-000 6966547H00000 6966547H00000 |
..CIRCLIP
|
||||
| # 4 |
69691-04A00-000 69691-00A00-0006969104A00000 |
..BOOT
|
||||
| # 5 |
69670-48H10-000 6967048H10000 6967048H10000 |
.ROD, PUSH
|
||||
| # 6 |
69672-00B20-000 6967200B20000 6967200B20000 |
.CONNECTOR
|
||||
| # 7 |
69674-00B20-000 6967400B20000 6967400B20000 |
.CIRCLIP
|
||||
| # 8 |
69686-34200-000 6968634200000 6968634200000 |
.O RING
|
||||
| # 9 |
69692-44H00-000 6969244H00000 6969244H00000 |
.YOKE
|
||||
| # 10 |
69693-05A00-000 6969305A00000 6969305A00000 |
.NUT
|
||||
| # 11 |
69697-48H00-000 6969748H00000 6969748H00000 |
PIN, REAR MASTER CYLINDER
|
||||
| # 12 |
69698-48H00-000 6969848H00000 6969848H00000 |
BOLT, REAR MASTER CYLINDER
|
||||
| # 13 |
69730-20K00-000 6973020K00000 6973020K00000 |
HOSE, REAR RESERVOIR TANK
|
Niet beschikbaar | |||
| # 14 |
69735-48H00-000 6973548H00000 6973548H00000 |
CLIP, HOSE LOWER
|
||||
| # 15 |
69735-48H10-000 6973548H10000 6973548H10000 |
CLIP, HOSE UPPER
|
||||
| # 16 |
69740-48H50-000 6974048H50000 6974048H50000 |
TANK ASSY, REAR RESERVOIR
|
||||
| # 17 |
69667-48H00-000 6966748H00000 6966748H00000 |
.DIAPHRAGM
|
Niet beschikbaar | |||
| # 18 |
69668-48H00-000 6966848H00000 6966848H00000 |
.PLATE, DIAPHRAGM
|
Niet beschikbaar | |||
| # 19 |
69669-48H50-000 6966948H50000 6966948H50000 |
.CAP
|
Niet beschikbaar | |||
| # 20 |
69689-48H10-000 6968948H10000 6968948H10000 |
.SCREW
|
||||
| # 21 |
01547-0616A-000 015470616A000 015470616A000 |
BOLT
|
||||
| # 22 |
04111-2015A-000 041112015A000 041112015A000 |
PIN. COTTER
COTTER PIN
|
||||
| # 23 |
08322-0106A-000 083220106A000 083220106A000 |
WASHER
|
Niet beschikbaar | |||
| # 24 |
59492-48H00-000 5949248H00000 5949248H00000 |
BOLT, BRAKE FLUID
|
||||
| # 25 |
61196-48H00-000 6119648H00000 6119648H00000 |
GUIDE, REAR BRAKE HOSE
|
||||
| # 26 |
69200-20K00-000 6920020K00000 6920020K00000 |
HOSE. RR BRAKE GSX250RA/L8
HOSE ASSY, RR BK MASTER TO UNIT |
||||
| # 27 |
59464-48H00-000 5946448H00000 5946448H00000 |
WASHER, BRAKE FLUID
|
||||
| # 28 |
02142-0616A-000 021420616A000 021420616A000 |
SCREW
|
||||
| # 29 |
69260-20K00-000 6926020K00000 6926020K00000 |
GUIDE. BRAKE HOSE GSX250R/L8
GUIDE, REAR BRAKE HOSE |
||||
| # 30 |
59492-48H20-000 5949248H20000 5949248H20000 |
BOLT, BRAKE FLUID
|
Niet beschikbaar | |||
| # 31 |
69400-20K00-000 6940020K00000 6940020K00000 |
HOSE. FR BRAKE GSX250RA/L8
HOSE ASSY, UNIT TO RR BK CLPR |
||||
| # 32 |
01547-0616A-000 015470616A000 015470616A000 |
BOLT
|
||||
| # 33 |
01547-0625A-000 01547-0625B-000015470625A000 |
BOLT. FINAL GEAR CASE COVER
BOLT |
Suzuki GSX-R
Cilinderinhoud: 250 cc Jaar: 2020 Model code GSX250RZA M0 P21 Kleur: Metallic Triton Blue No.2 (QHV) / Pearl Glacier White No.2 (QHW)
