| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

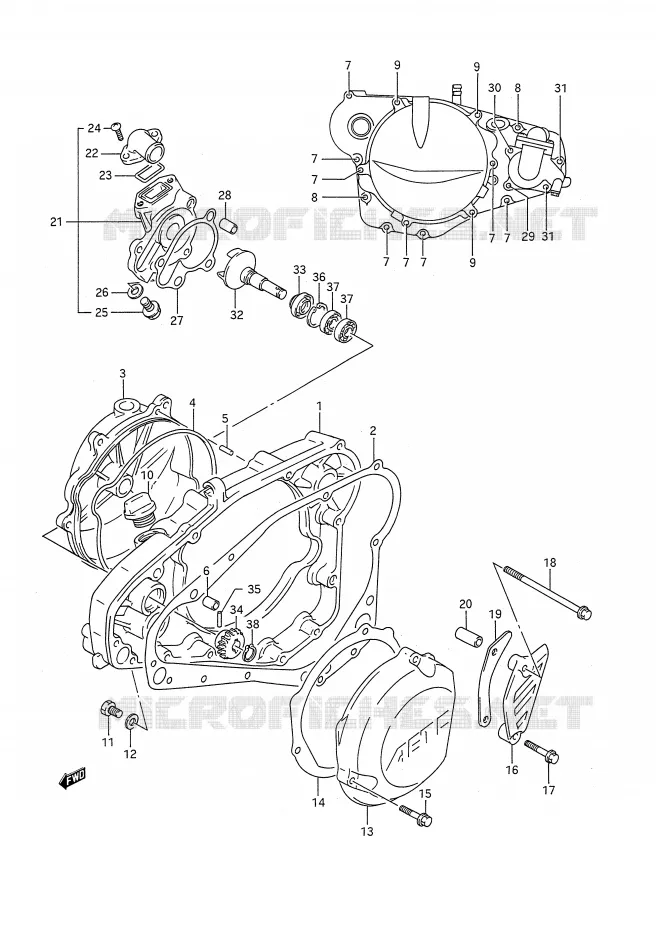

| # 1 |
11341-28C10-000 1134128C10000 |
CLUTCH COVER
COVER, CLUTCH |
Niet beschikbaar | |||
| # 1 |
11341-28C30-000 1134128C30000 |
CLUTCH COVER
COVER, CLUTCH |
Niet beschikbaar | |||
| # 2 |
11482-28C01-000 1148228C01000 1148228C01000 |
CLUTCH COVER GASKET
GASKET, CLUTCH COVER |
||||
| # 3 |
11371-28C10-000 11371-28E02-0001137128C10000 |
CLUTCH OUTER COVER
COVER, CLUTCH OUTER |
||||
| # 4 |
11484-28C10-000 1148428C10000 1148428C10000 |
O-RING
O RING, CLUTCH COVER OUTER |
Niet beschikbaar | |||
| # 5 |
04221-04089-000 0422104089000 0422104089000 |
PIN, GEAR SHFT ARM SH
PIN
|
||||
| # 6 |
04211-09129-000 0421109129000 0421109129000 |
PIN 9X12
PIN
|
||||
| # 7 |
01547-06257-000 0154706257000 0154706257000 |
BOLT
|
||||
| # 8 |
01547-06357-000 0154706357000 0154706357000 |
BOLT 6X35
BOLT
|
||||
| # 9 |
01547-06657-000 01547-0665B-0000154706657000 |
BOLT
|
||||
| # 9 |
01547-06707-000 0154706707000 0154706707000 |
BOLT 6X70
BOLT
|
||||
| # 10 |
09200-20810-000 09200-20811-0000920020810000 |
PLUG SET
PLUG, OIL FILLER
|
||||
| # 11 |
09128-06004-000 09128-06044-0000912806004000 |
SCREW, M6X1X10
SCREW |
||||
| # 12 |
09168-06004-000 0916806004000 0916806004000 |
GASKET
|
||||
| # 13 |
11351-28C00-000 1135128C00000 |
MAGNETO COVER
COVER, MAGNETO |
Niet beschikbaar | |||
| # 14 |
11483-28C00-000 1148328C00000 |
MAGN COVER GASKET
GASKET, MAGNETO COVER |
Niet beschikbaar | |||
| # 15 |
01547-06257-000 0154706257000 0154706257000 |
BOLT
|
||||
| # 16 |
11360-27C00-000 11360-28E00-0001136027C00000 |
ENG SPROCKET COVER
COVER, ENGINE SPROCKET |
||||
| # 17 |
01547-06257-000 0154706257000 0154706257000 |
BOLT
|
||||
| # 18 |
01547-06958-000 01547-06957-0000154706958000 |
BOLT
|
||||
| # 19 |
27641-28C20-000 2764128C20000 2764128C20000 |
CHAIN PLATE
PLATE, CHAIN GUIDE |
||||
| # 19 |
27641-28C00-000 2764128C00000 2764128C00000 |
CHAIN PLATE
PLATE, CHAIN GUIDE |
Niet beschikbaar | |||
| # 19 |
27641-28C10-000 2764128C10000 2764128C10000 |
CHAIN PLATE
PLATE, CHAIN GUIDE |
Niet beschikbaar | |||
| # 20 |
09180-06203-000 0918006203000 0918006203000 |
SPACER
|
||||
| # 21 |
17410-28C10-000 1741028C10000 |
WATER PUMP CASE
CASE ASSY, WATER PUMP |
Niet beschikbaar | |||
| # 22 |
17412-28C10-000 1741228C10000 |
.CONNECTOR
|
Niet beschikbaar | |||
| # 23 |
17414-14300-000 1741414300000 1741414300000 |
O RING
|
||||
| # 24 |
02112-06164-000 02112-0616A-0000211206164000 |
SCREW
SCREW, FRONT FENDER |
||||
| # 25 |
17415-00B00-000 17415-43D00-0001741500B00000 |
BOLT
.BOLT, DRAIN |
||||
| # 26 |
17413-28C10-000 1741328C10000 1741328C10000 |
WASHER
GASKET |
||||
| # 27 |
17431-28C10-000 1743128C10000 1743128C10000 |
WATERP CASE GASKET
GASKET, WATER PUMP CASE |
||||
| # 28 |
04211-09129-000 0421109129000 0421109129000 |
PIN 9X12
PIN
|
||||
| # 29 |
01547-06207-000 0154706207000 0154706207000 |
BOLT
|
||||
| # 30 |
01547-06307-000 0154706307000 0154706307000 |
BOLT 6 X 30
BOLT
|
||||
| # 31 |
01547-06807-000 0154706807000 0154706807000 |
BOLT 6X80
BOLT |
||||
| # 32 |
17491-28C10-000 1749128C10000 1749128C10000 |
WATERPUMP IMPELLER
IMPELLER, WATER PUMP |
||||
| # 33 |
17461-28C10-000 17461-03B00-0001746128C10000 |
SEAL, WATER PUMP OIL
OIL SEAL |
||||
| # 34 |
17441-28C10-000 1744128C10000 |
GEAR, WATER PUMP DRIVEN(NT:24)
GEAR, WATER PUMP DRIVEN |
Niet beschikbaar | |||
| # 35 |
09261-03010-000 0926103010000 0926103010000 |
PIN
|
||||
| # 36 |
08331-41249-000 0833141249000 0833141249000 |
CIRCLIP
|
||||
| # 37 |
08113-69000-000 0811369000000 0811369000000 |
BEARING
|
||||
| # 38 |
08331-31109-000 0833131109000 0833131109000 |
CIRCLIP, 10MM
CIRCLIP
|
