| # 1 |
64110-28C01-000 6411028C01000 6411028C01000 |
REAR HUB
HUB, REAR |
||||
| # 2 |
64731-00B30-000 6473100B30000 6473100B30000 |
SPACER
SPACER, BEARING |
||||
| # 3 |
08133-62047-000 0813362047000 0813362047000 |
NTN B1 20X47X14
BEARING
|
||||
| # 4 |
08123-60047-000 08133-60047-0000812360047000 |
BEARING
BEARING, REAR HUB, LH |
||||
| # 5 |
08331-41478-000 08331-41479-0000833141478000 |
CIRCLIP
|
||||
| # 6 |
09283-26019-000 0928326019000 0928326019000 |
OIL SEAL
SEAL, DUST |
||||
| # 7 |
69211-05D00-000 69211-43D00-0006921105D00000 |
REAR BRAKE DISK
DISC, REAR BRAKE, T:4.5 |
||||
| # 8 |
02122-06167-000 0212206167000 0212206167000 |
SCREW 6X16
SCREW
|
||||
| # 9 |
64711-27C01-000 6471127C01000 6471127C01000 |
REAR AXLE
AXLE, REAR |
Niet beschikbaar | |||
| # 9 |
64711-27C20-000 6471127C20000 |
REAR AXLE
AXLE, REAR |
Niet beschikbaar | |||
| # 10 |
64741-00B21-000 6474100B21000 6474100B21000 |
SPACER
SPACER, RH |
Niet beschikbaar | |||
| # 11 |
64751-27C00-000 6475127C00000 6475127C00000 |
SPACER
SPACER, LH |
Niet beschikbaar | |||
| # 12 |
09160-19010-000 09160-19022-0000916019010000 |
WASHER
|
||||
| # 13 |
08314-41188-000 08314-40187-0000831441188000 |
NUT
NUT 18MM |
||||
| # 14 |
04111-40308-000 04111-4030A-0000411140308000 |
COTTER PIN
PIN, COTTER |
||||
| # 15 |
64511-00B01-000 6451100B01000 6451100B01000 |
REAR SPROCKET 49 T
SPROCKET, REAR (NT:49) |
||||
| # 15 |
64511-00B11-000 64511-00B12-0006451100B11000 |
REAR SPROCKET 50 T
SPROCKET, REAR (NT:50) |
||||
| # 15 |
64511-00B21-000 6451100B21000 6451100B21000 |
REAR SPROCKET 51 T
SPROCKET, REAR (NT:51) |
||||
| # 15 |
64511-40261-000 6451140261000 6451140261000 |
REAR SPROCKET 51 T
SPROCKET, REAR (NT:51) |
||||
| # 15 |
64511-40271-000 64511-36E00-0006451140271000 |
SPROCKET, REAR (NT:50)
|
||||
| # 15 |
64511-40281-000 64511-28E00-0006451140281000 |
RR SPROCKET 49 T
SPROCKET, REAR (NT:49) |
||||
| # 15 |
64511-40285-000 64511-14D60-0006451140285000 |
SPROCKET.REAR NT 48
SPROCKET, REAR (NT:48) |
||||
| # 16 |
09120-08010-000 0912008010000 0912008010000 |
BOLT
SCREW
|
||||
| # 17 |
09159-08034-000 0915908034000 0915908034000 |
NUT
|
||||
| # 17 |
09159-08067-000 0915908067000 0915908067000 |
NUT
NUT REFER TO FIG.35B(H-5) FOR MODE |
||||
| # 18 |
65311-28C10-000 6531128C10000 6531128C10000 |
RR WHEEL RIM 215X19
RIM, WHEEL (2.15X19AL) |
||||
| # 19 |
65320-28C10-000 6532028C10000 6532028C10000 |
RR SPOKE SET
SPOKE ASSY, WHEEL |
Niet beschikbaar | |||
| # 20 |
65110-28C20-000 6511028C20000 6511028C20000 |
TIRE, REAR (110/90-19) (BRIDGESTONE)
|
Niet beschikbaar | |||
| # 20 |
65110-28C40-000 6511028C40000 6511028C40000 |
TIRE, REAR (110/90-19) (BRIDGESTONE)
|
Niet beschikbaar | |||
| # 21 |
65200-28C20-000 6520028C20000 6520028C20000 |
TUBE ASSY. WHEEL INNER
TUBE, WHEEL INNER |
||||
| # 22 |
65261-28C20-000 6526128C20000 6526128C20000 |
PROTECTOR, WHEEL INNER TUBE
PROTECTOR |
Niet beschikbaar | |||
| # 23 |
65270-14200-000 65270-28E00-0006527014200000 |
STOPPER
STOPPER COMP BEAD |
||||
| # 24 |
08322-11088-000 08322-01087-0000832211088000 |
WASHER
.8MM FLAT WASHER, RH |
||||
| # 25 |
08310-12088-000 08310-00087-0000831012088000 |
NUT
NUT REFER TO FIG.31A(G-3) FOR MODE REFER TO FIG.31B(G-4) FOR MODE |
||||
| # 26 |
65271-27C00-000 6527127C00000 6527127C00000 |
CUSHION
CUSHION, BEAD STOPPER |
||||
| # 27 |
69231-27C00-000 69200-28C00-0006923127C00000 |
REAR BRAKE DISC GUARD
COVER, REAR DISC |
||||
| # 28 |
01517-06128-000 01550-06207-0000151706128000 |
BOLT
BOLT, BRACKET REAR |
||||
| # 29 |
09250-08013-000 0925008013000 0925008013000 |
CAP
|
||||
| # 30 |
09813-00039-000 09813-00134-0000981300039000 |
OPEN SPANNER
SPANNER, OPEN REFER TO FIG.35B(H-5) FOR MODE |

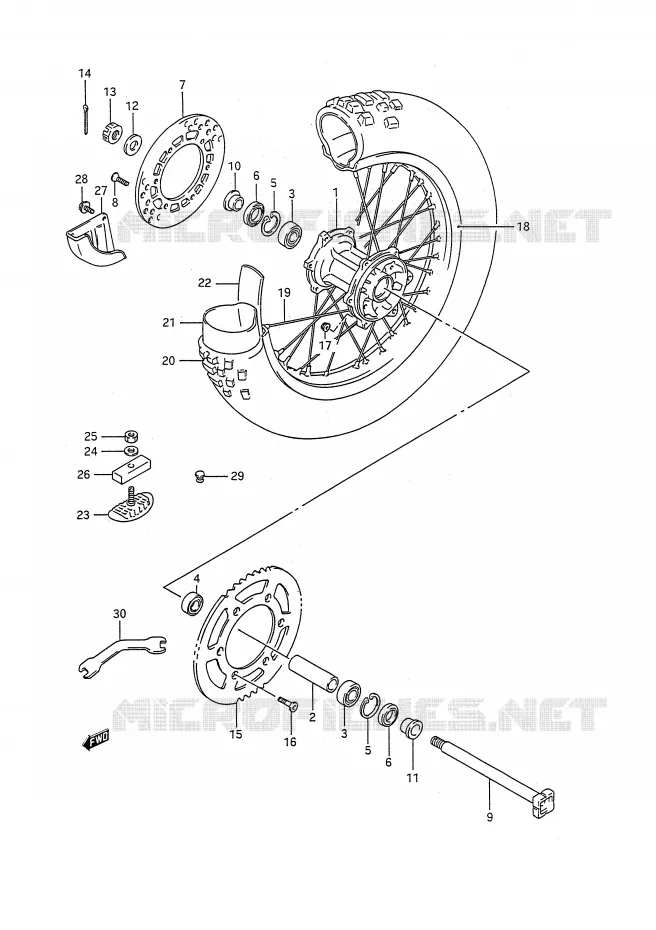

Suzuki RM
Cilinderinhoud: 250 cc Jaar: 1992 Model code RM250N(E28)
