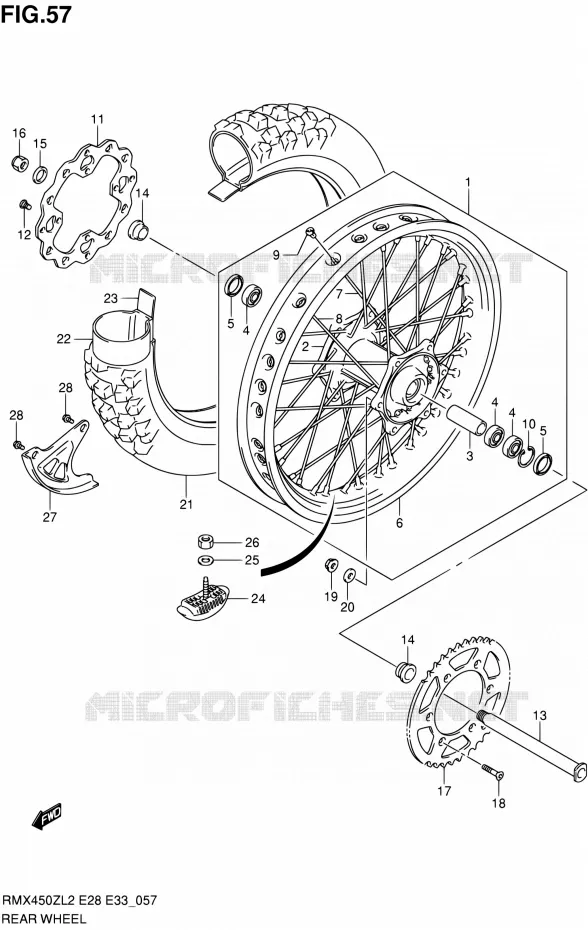

| # 1 |
64100-02J00-000 6410002J00000 6410002J00000 |
WHEEL ASSY, REAR
|
||||
| # 2 |
64111-35G20-000 64111-35G30-0006411135G20000 |
.HUB.REAR
.HUB, REAR WHEEL |
||||
| # 3 |
64731-35G01-000 6473135G01000 6473135G01000 |
.SPACER, BEARING
|
||||
| # 4 |
09262-25139-000 09262-25192-0000926225139000 |
ROULEMENT
.BEARING (25X42X9) |
||||
| # 5 |
09283-32045-000 0928332045000 0928332045000 |
SEAL.REAR HUB BEARING
.OIL SEAL (32X43X7) |
||||
| # 6 |
65311-02J00-000 6531102J00000 6531102J00000 |
.RIM, REAR WHEEL (1.8X2.15)
|
||||
| # 7 |
65321-02J00-000 6532102J00000 6532102J00000 |
.SPOKE, WHEEL INNER
|
||||
| # 8 |
65322-02J00-000 6532202J00000 6532202J00000 |
.SPOKE, WHEEL OUTER
|
||||
| # 9 |
65325-35G10-000 6532535G10000 6532535G10000 |
.NIPPLE, WHEEL
|
||||
| # 10 |
08331-41429-000 0833141429000 0833141429000 |
.CIRCLIP
|
||||
| # 11 |
69211-28H10-000 6921128H10000 6921128H10000 |
DISC, REAR BRAKE
|
||||
| # 12 |
09139-08022-000 0913908022000 0913908022000 |
SCREW.REAR BRAKE DISC
SCREW (8X15) |
||||
| # 13 |
64711-35G10-000 6471135G10000 6471135G10000 |
AXLE, REAR
|
||||
| # 14 |
64751-35G01-000 6475135G01000 6475135G01000 |
SPACER, REAR AXLE
SPACER |
||||
| # 15 |
09160-22081-000 09160-22081-0000916022081000 |
WASHER. REAR AXLE NUT
WASHER (22X35X2) |
||||
| # 16 |
09159-22007-000 0915922007000 0915922007000 |
NUT.REAR AXLE
NUT |
||||
| # 17 |
64511-02J00-000 6451102J00000 6451102J00000 |
SPROCKET, REAR(51-520)
SPROCKET, REAR |
||||
| # 18 |
09120-08017-000 0912008017000 0912008017000 |
SCREW, REAR SPROCKET
BOLT (8X28) |
||||
| # 19 |
09159-08133-000 0915908133000 0915908133000 |
NUT
|
||||
| # 20 |
09160-08082-000 0916008082000 0916008082000 |
WASHER (8.5X16X1.2)
|
||||
| # 21 |
65110-29F00-000 6511029F00000 6511029F00000 |
TIRE, REAR, 110/100-18 64M
TIRE, REAR (110/100-18) (DUNLOP) |
||||
| # 22 |
65200-29F00-000 6520029F00000 6520029F00000 |
TUBE ASSY, WHEEL INNER
|
||||
| # 23 |
65261-44AF0-000 6526144AF0000 6526144AF0000 |
PROTECTOR, INNER TUBE
|
||||
| # 24 |
65270-29F00-000 6527029F00000 6527029F00000 |
STOPPER COMP.BEAD(2.15)
STOPPER, BEAD |
||||
| # 25 |
08322-0108A-000 083220108A000 083220108A000 |
WASHER
|
||||
| # 26 |
08310-0008A-000 083100008A000 083100008A000 |
NUT
|
||||
| # 27 |
69231-37F12-000 6923137F12000 6923137F12000 |
COVER, REAR DISC
|
||||
| # 28 |
09116-06197-000 0911606197000 0911606197000 |
BOLT
BOLT (6X12) |
