| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

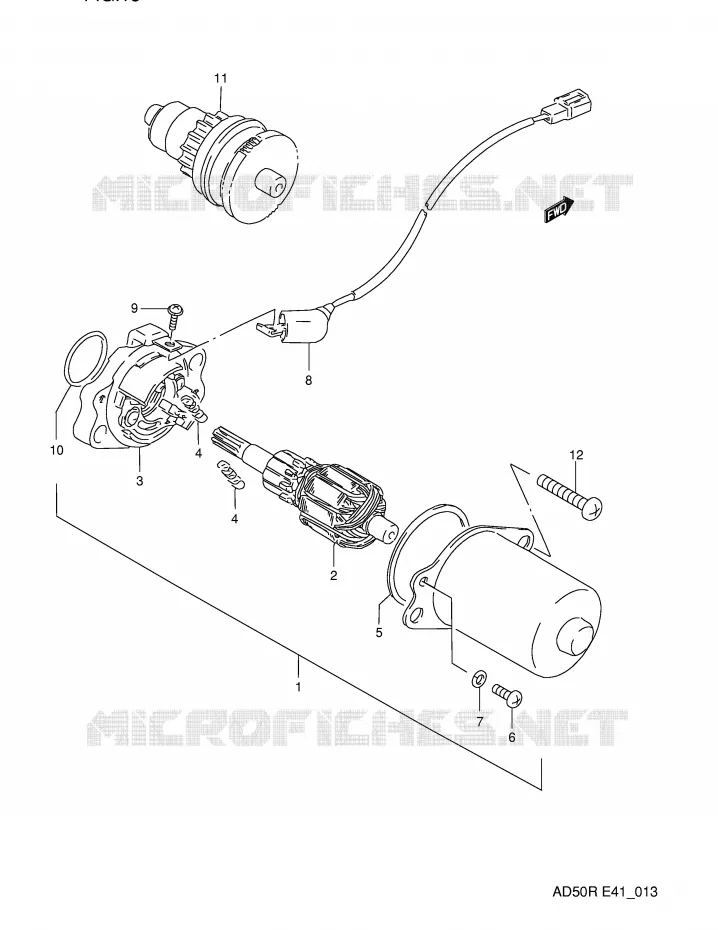

| # 1 |
31100-36C02-000 31100-36C02-00N3110036C02000 |
MOTOR ASSY
MOTOR ASSY, STARTING (NA) |
||||
| # 2 |
31311-37B01-000 3131137B01000 3131137B01000 |
ARMATURE
ARMATURE (NA) |
||||
| # 3 |
31130-37B01-000 3113037B01000 3113037B01000 |
HOLDER ASSY, BRUSH
|
||||
| # 4 |
31135-47A00-000 3113547A00000 3113547A00000 |
SPRING, BRUSH
|
||||
| # 5 |
31157-03A00-000 3115703A00000 3115703A00000 |
GASKET
|
||||
| # 6 |
02112-04106-000 02112-0410A-0000211204106000 |
.SCREW
|
||||
| # 7 |
08321-21046-000 08321-0104A-0000832121046000 |
WASHER, LOCK
.LOCK WASHER |
||||
| # 8 |
31142-37B00-000 31142-37B01-0003114237B00000 |
WIRE, LEAD
|
||||
| # 9 |
31152-03A00-000 02112-3406A-0003115203A00000 |
SCREW
|
||||
| # 10 |
31156-47A00-000 09280-19005-0003115647A00000 |
O RING D:2.4 ID:19
O RING |
||||
| # 11 |
31370-37B00-000 31370-37B01-0003137037B00000 |
PINION ASSY, STARTING MOTOR
|
||||
| # 12 |
02112-06253-000 02112-0625A-0000211206253000 |
SCREW
|
