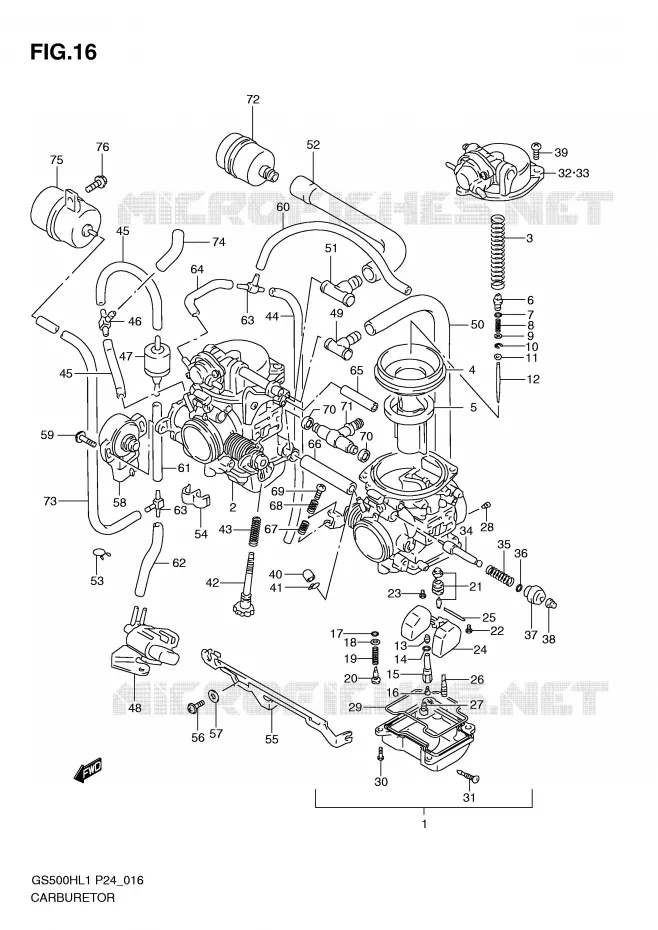

CARBURATOR VOOR SUZUKI GS-F 500 2011

LUCHTFILTER

(1) 13201-01DN0-000

LH CARBURATOR
CARBURETOR ASSY, LH

(2) 13202-01DN0-000

RH CARBURATOR
CARBURETOR ASSY, RH

(3) 13573-19E00-000

SPRING

(4) 13507-17C02-000

DIAPHRAGM

(5) 13501-29FA0-000

PISTON VALVE
VALVE, PISTON

(6) 13418-44080-000

GUIDE SCREW,PLUNGER
HOLDER

(7) 09280-05004-000

O-RING 1.9/4.8
O RING (D:1.9, ID:4.8)

(8) 13481-13F00-000

SPRING

(9) 13382-19E00-000

WASHER

(10) 13394-17E60-000

E RING,MULTIPLE JET NOZZLE
E RING

(11) 13387-13F00-000

RING

(12) 13383-01DN0-000

JET NEEDLE
NEEDLE, JET (5DH57-3)

(13) 13341-01DN0-000

NEEDLE JET
JET, NEEDLE (P-5M)

(14) 13246-43011-000

O RING

(15) 13385-07F00-000

HOLDER, JET

(16) 09491-26016-000

JET, MAIN (130)

(17) 13295-29901-000

O RING,PILOT AIR SCREW
O RING

(18) 13291-29900-000

WASHER

(19) 13268-48700-000

SPRING

(20) 13279-01DN0-000

ADJUSTER
ADJUSTER (2 5/8)

(21) 13370-04F01-000

NEEDLE VALVE ASSY
VALVE ASSY, NEEDLE

(22) 02112-0408B-000

SCREW

(23) 13602-05A10-000

SCREW

(24) 13250-04F00-000

FLOAT ASSY

(25) 13254-01010-000

PIN, FLOAT

(26) 09492-17016-000

JET, PILOT (17.5)

(27) 09491-60010-000

JET, MAIN (60)

(28) 09493-34003-000

JET, PILOT AIR (170)

(29) 13258-04F00-000

GASKET

(30) 02112-04107-000

SCREW

(31) 13247-02340-000

PLUG, DRAIN

(32) 13502-01DB0-000

COVER ASSY, DIAPHRAGM LH

(33) 13502-01DC0-000

COVER ASSY, DIAPHRAGM RH

(34) 13411-05300-000

PLUNGER
PLUNGER ASSY

(35) 13417-26D00-000

SPRING

(36) 13278-47091-000

O RING

(37) 13418-44080-000

GUIDE SCREW,PLUNGER
HOLDER, GUIDE

(38) 13682-31210-000

CAP,STARTER VALVE
CAP

(39) 02112-05127-000

SCREW

(40) 13274-84000-000

CAP

(41) 09401-06101-000

CLIP

(42) 13267-13F00-000

ADJUST SCREW ASSY
ADJUSTER

(43) 13271-33C00-000

SPRING

(44) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE

(45) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE

(46) 13685-04F10-000

NIPPLE

(47) 95569-78040-000

VALVE,CHECK
CHECK VALVE ASSY

(48) 18115-70G10-000

SOLENOID VALVE ASSY
SOLENOID ASSY

(49) 13683-01DB0-000

HOSE

(50) 13683-01DN0-000

HOSE

(51) 13683-01DP0-000

3 WAY

(52) 13683-01DC1-000

HOSE

(53) 09401-16401-000

CLIP

(54) 09408-00200-000

CLIP

(55) 13413-01DE0-000

PLATE
LEVER

(56) 13602-04F00-000

SCREW

(57) 13557-33E00-000

PACKING

(58) 13550-13D61-000

SENSOR GS500E
SENSOR ASSY

(59) 13605-20C00-000

SCREW,SENSOR
SCREW

(60) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE

(61) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE

(62) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE

(63) 09367-04007-000

3WAY
NIPPLE

(64) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE

(65) 13685-01DC0-000

ROD

(66) 13685-01DB0-000

PIPE

(67) 13268-96111-000

SPRING

(68) 13271-44B00-000

SPRING

(69) 13267-44B00-000

SCREW

(70) 13673-44B00-000

SEAL

(71) 13685-33EQ0-000

NIPPLE

(72) 18780-32E00-000

FILTER,2ND AIR CLEANER
FILTER, AIR CLEANER NO. 2

(73) 09355-35007-600

HOSE (3.5X7.5X600)
HOSE, CONTROL AIR

(74) 09355-50002-00B

HOSE
HOSE, FUEL COCK VACUUM NO. 1

(75) 13715-04F00-000

CHAMBER COMP,VACUUM
CHAMBER, VACUUM

(76) 01550-0620B-000

BOLT

	Onderdeelnummer	Produkt	Aantal
# 1	13201-01DN0-000 1320101DN0000 1320101DN0000	LH CARBURATOR CARBURETOR ASSY, LH	Niet beschikbaar	0,00 €
# 2	13202-01DN0-000 1320201DN0000 1320201DN0000	RH CARBURATOR CARBURETOR ASSY, RH	563,10 €
# 3	13573-19E00-000 1357319E00000 1357319E00000	SPRING	8,45 €
# 4	13507-17C01-000 13507-17C02-000 1350717C01000	DIAPHRAGM	30,55 €
# 5	13501-29FA0-000 1350129FA0000 1350129FA0000	PISTON VALVE VALVE, PISTON	61,34 €
# 6	13418-44080-000 1341844080000 1341844080000	GUIDE SCREW, PLUNGER HOLDER	9,81 €
# 7	09280-05004-000 0928005004000 0928005004000	O-RING 1.9/4.8 O RING (D:1.9, ID:4.8)	2,29 €
# 8	13481-13F00-000 1348113F00000 1348113F00000	SPRING	5,26 €
# 9	13382-19E00-000 1338219E00000 1338219E00000	WASHER	5,50 €
# 10	13394-17E60-000 1339417E60000 1339417E60000	E RING, MULTIPLE JET NOZZLE E RING	2,57 €
# 11	13387-13F00-000 1338713F00000 1338713F00000	RING	7,61 €
# 12	13383-01DN0-000 1338301DN0000 1338301DN0000	JET NEEDLE NEEDLE, JET (5DH57-3)	17,88 €
# 13	13341-01DN0-000 1334101DN0000 1334101DN0000	NEEDLE JET JET, NEEDLE (P-5M)	23,58 €
# 14	13246-43010-000 13246-43011-000 1324643010000	O RING	7,61 €
# 15	13385-07F00-000 1338507F00000 1338507F00000	HOLDER, JET	23,87 €
# 16	09491-26016-000 0949126016000 0949126016000	JET, MAIN (130)	15,11 €
# 17	13295-29900-000 13295-29901-000 1329529900000	O RING, PILOT AIR SCREW O RING	5,95 €
# 18	13291-29900-000 1329129900000 1329129900000	WASHER	2,33 €
# 19	13268-48700-000 1326848700000 1326848700000	SPRING	6,41 €
# 20	13279-01DN0-000 1327901DN0000 1327901DN0000	ADJUSTER ADJUSTER (2 5/8)	10,38 €
# 21	13370-04F00-000 13370-04F01-000 1337004F00000	NEEDLE VALVE ASSY VALVE ASSY, NEEDLE	71,08 €
# 22	02112-0408A-000 02112-0408B-000 021120408A000	SCREW	2,11 €
# 23	13602-05A10-000 1360205A10000 1360205A10000	SCREW	5,39 €
# 24	13250-04F00-000 1325004F00000 1325004F00000	FLOAT ASSY	30,04 €
# 25	13254-01010-000 1325401010000 1325401010000	PIN, FLOAT	5,57 €
# 26	09492-17016-000 0949217016000 0949217016000	JET, PILOT (17.5)	13,75 €
# 27	09491-60010-000 0949160010000 0949160010000	JET, MAIN (60)	12,98 €
# 28	09493-34003-000 0949334003000 0949334003000	JET, PILOT AIR (170)	12,87 €
# 29	13258-04F00-000 1325804F00000 1325804F00000	GASKET	10,25 €
# 30	02112-04107-000 0211204107000 0211204107000	SCREW	1,80 €
# 31	13247-13A00-000 13247-02340-000 1324713A00000	PLUG, DRAIN	6,88 €
# 32	13502-01DB0-000 1350201DB0000 1350201DB0000	COVER ASSY, DIAPHRAGM LH	92,55 €
# 33	13502-01DC0-000 1350201DC0000 1350201DC0000	COVER ASSY, DIAPHRAGM RH	92,55 €
# 34	13411-05300-000 1341105300000 1341105300000	PLUNGER PLUNGER ASSY	23,63 €
# 35	13417-26D00-000 1341726D00000 1341726D00000	SPRING	8,19 €
# 36	13278-47090-000 13278-47091-000 1327847090000	O RING	3,15 €
# 37	13418-44080-000 1341844080000 1341844080000	GUIDE SCREW, PLUNGER HOLDER, GUIDE	9,81 €
# 38	13682-31210-000 1368231210000 1368231210000	CAP, STARTER VALVE CAP	6,54 €
# 39	02112-05127-000 0211205127000 0211205127000	SCREW	2,62 €
# 40	13274-84000-000 1327484000000 1327484000000	CAP	6,88 €
# 41	09401-06101-000 0940106101000 0940106101000	CLIP	2,68 €
# 42	13267-13F00-000 1326713F00000 1326713F00000	ADJUST SCREW ASSY ADJUSTER	12,49 €
# 43	13271-33C00-000 1327133C00000 1327133C00000	SPRING	5,41 €
# 44	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE	8,56 €
# 45	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE	8,56 €
# 46	13685-04F10-000 1368504F10000 1368504F10000	NIPPLE	8,14 €
# 47	95569-01DN0-000 95569-78040-000 9556901DN0000	VALVE, CHECK CHECK VALVE ASSY	36,84 €
# 48	18115-70G10-000 1811570G10000 1811570G10000	SOLENOID VALVE ASSY SOLENOID ASSY	99,67 €
# 49	13683-01DB0-000 1368301DB0000 1368301DB0000	HOSE	14,88 €
# 50	13683-01DN0-000 1368301DN0000 1368301DN0000	HOSE	19,57 €
# 51	13683-01DP0-000 1368301DP0000 1368301DP0000	3 WAY	33,10 €
# 52	13683-01DC1-000 1368301DC1000 1368301DC1000	HOSE	20,32 €
# 53	09401-16401-000 0940116401000 0940116401000	CLIP	4,02 €
# 54	09408-00200-000 0940800200000 0940800200000	CLIP	2,40 €
# 55	13413-01DE0-000 1341301DE0000 1341301DE0000	PLATE LEVER	29,13 €
# 56	13602-04F00-000 1360204F00000 1360204F00000	SCREW	4,53 €
# 57	13557-33E00-000 1355733E00000 1355733E00000	PACKING	4,28 €
# 58	13550-13D60-000 13550-13D61-000 1355013D60000	SENSOR GS500E SENSOR ASSY	114,11 €
# 59	13605-20C00-000 1360520C00000 1360520C00000	SCREW, SENSOR SCREW	6,15 €
# 60	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE	8,56 €
# 61	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE	8,56 €
# 62	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE	8,56 €
# 63	09367-04007-000 0936704007000 0936704007000	3WAY NIPPLE	4,70 €
# 64	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE	8,56 €
# 65	13685-01DC0-000 1368501DC0000 1368501DC0000	ROD	12,75 €
# 66	13685-01DB0-000 1368501DB0000 1368501DB0000	PIPE	11,05 €
# 67	13268-96111-000 1326896111000 1326896111000	SPRING	Niet beschikbaar	0,00 €
# 68	13271-44B00-000 1327144B00000 1327144B00000	SPRING	6,50 €
# 69	13267-44B00-000 1326744B00000 1326744B00000	SCREW	4,73 €
# 70	13673-44B00-000 1367344B00000 1367344B00000	SEAL	7,05 €
# 71	13685-33EQ0-000 1368533EQ0000 1368533EQ0000	NIPPLE	22,07 €
# 72	18780-32E00-000 1878032E00000 1878032E00000	FILTER, 2ND AIR CLEANER FILTER, AIR CLEANER NO. 2	26,18 €
# 73	09355-35755-600 09355-35007-600 0935535755600	HOSE (3.5X7.5X600) HOSE, CONTROL AIR	8,56 €
# 74	09355-50105-600 09355-50002-00B 0935550105600	HOSE HOSE, FUEL COCK VACUUM NO. 1	36,71 €
# 75	13715-04F00-000 1371504F00000 1371504F00000	CHAMBER COMP, VACUUM CHAMBER, VACUUM	18,57 €
# 76	D1557-0620B-000 01550-0620B-000 D15570620B000	BOLT	3,15 €
