Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

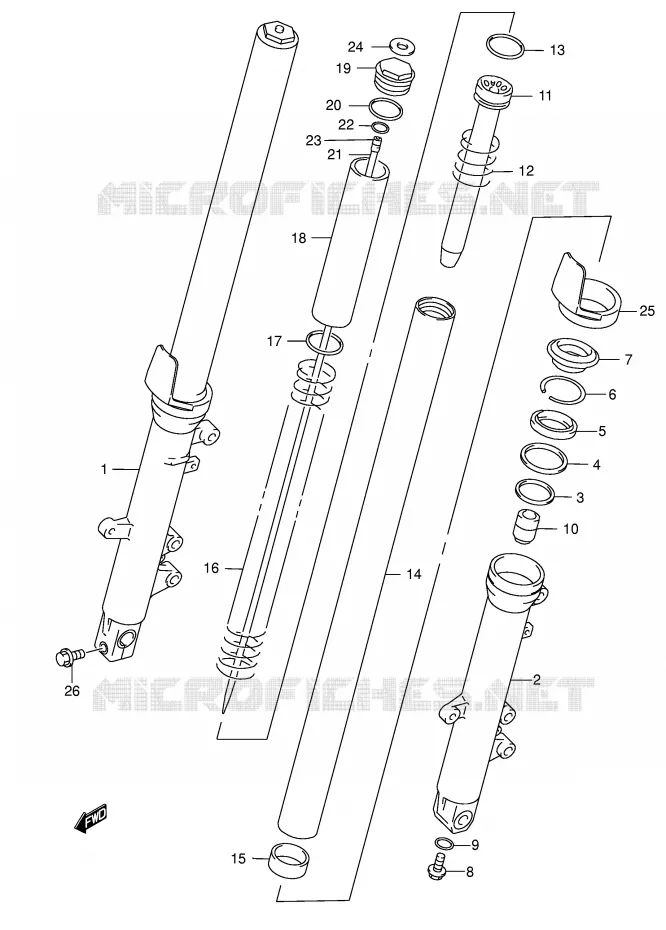

| # 1 |
51130-08F10-000 5113008F10000 5113008F10000 |
RH OUTER TUBE
TUBE, OUTER RH |
Niet beschikbaar | |||
| # 2 |
51140-08F10-000 5114008F10000 5114008F10000 |
LH OUTER TUBE
TUBE, OUTER LH |
||||
| # 3 |
51152-11D60-000 5115211D60000 5115211D60000 |
GUIDE BUSH
BUSH, GUIDE |
||||
| # 4 |
51168-38B00-000 5116838B00000 5116838B00000 |
SPACER
SPACER, SEAL
|
||||
| # 5 |
51153-08D00-000 5115308D00000 5115308D00000 |
FR FORK OIL SEAL
SEAL, OIL
|
||||
| # 6 |
51556-38B00-000 5155638B00000 5155638B00000 |
STOPPER RING
RING
|
||||
| # 7 |
51571-47D50-000 5157147D50000 5157147D50000 |
DUST SEAL
SEAL, DUST |
||||
| # 8 |
51147-48130-000 5114748130000 5114748130000 |
BOLT, FORK CYLINDER
BOLT
|
||||
| # 9 |
51148-36011-000 5114836011000 5114836011000 |
FK CYLINDER GASKET
GASKET
|
||||
| # 10 |
51195-48B31-000 5119548B31000 5119548B31000 |
OIL LOCK PIECE
PIECE, OIL LOCK
|
||||
| # 11 |
51194-08F30-000 5119408F30000 5119408F30000 |
UNDER SEAT
SEAT, UNDER |
Niet beschikbaar | |||
| # 12 |
51177-48B31-000 5117748B31000 5117748B31000 |
REBOUND SPRING
SPRING |
||||
| # 13 |
51196-12C00-000 5119612C00000 5119612C00000 |
PISTON RING
RING
|
||||
| # 14 |
51110-08F00-000 5111008F00000 5111008F00000 |
INNER TUBE
TUBE, INNER |
||||
| # 15 |
51121-48B31-000 5112148B31000 5112148B31000 |
SLIDE BUSH
BUSH, SLIDE
|
||||
| # 16 |
51171-08F00-000 5117108F00000 5117108F00000 |
FRONT SPRING
SPRING, FRONT |
||||
| # 17 |
51192-19C00-000 5119219C00000 5119219C00000 |
JOINT
JOINT, SPRING
|
||||
| # 18 |
51176-12C00-000 5117612C00000 5117612C00000 |
SPACER
COLLAR, SPRING
|
||||
| # 19 |
51351-20C20-000 5135120C20000 5135120C20000 |
BOLT, FORK
|
||||
| # 20 |
51117-12C00-000 5111712C00000 5111712C00000 |
O-RING
COLLAR, SPRING
|
||||
| # 21 |
52111-08F00-000 5211108F00000 5211108F00000 |
ROD
ROD, DAMPER |
||||
| # 22 |
09280-03002-000 0928003002000 0928003002000 |
O RING
O RING (ID:3.8, D:1.9)
|
||||
| # 23 |
51169-20C20-000 5116920C20000 5116920C20000 |
RING, STOPPER
RING, STOPPER (ID:6.1, D:0.6) |
||||
| # 24 |
51149-20C20-000 5114920C20000 5114920C20000 |
LABEL, S-H
|
||||
| # 25 |
51201-32F00-000 5120132F00000 5120132F00000 |
PROTECTOR
|
||||
| # 26 |
01550-08407-000 0155008407000 0155008407000 |
BOLT, SEC CASE
BOLT, RH
|
||||
| # 99x |
51103-08F10-000 5110308F10000 5110308F10000 |
DAMPER ASSY, FRONT FORK, R
DAMPER ASSY, FRONT FORK RH |
Niet beschikbaar | |||
| # 99x |
51104-08F10-000 5110408F10000 5110408F10000 |
DAMPER ASSY, FRONT FORK, L
DAMPER ASSY, FRONT FORK LH |
Niet beschikbaar |
