| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
69600-17C10-000 6960017C10000 6960017C10000 |

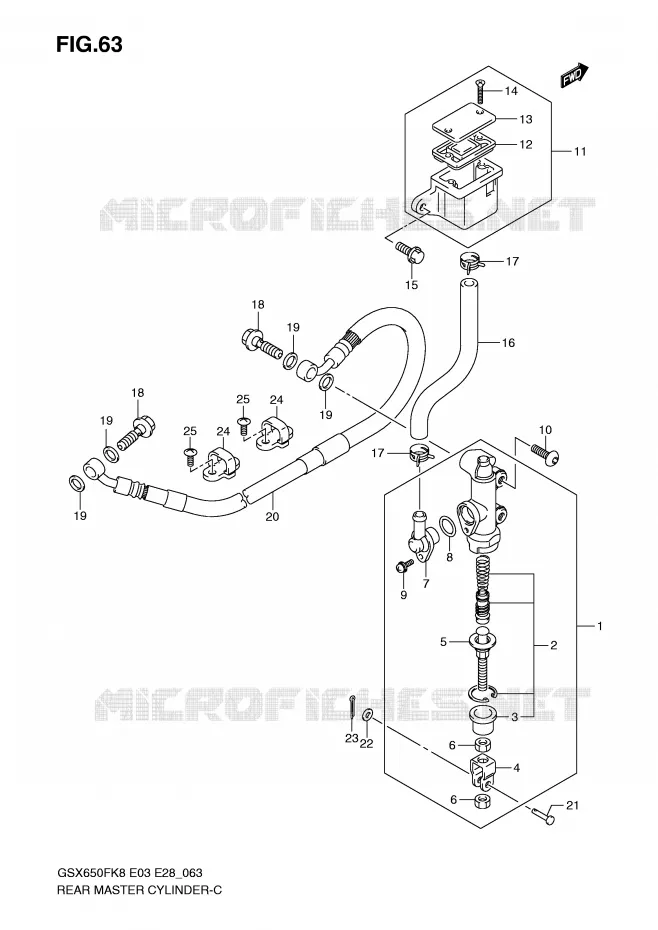

RR MASTER CYLINDER
CYLINDER ASSY, REAR MASTER
|
||||
| # 2 |
69600-34820-000 69600-34821-0006960034820000 |
PISTON / CUP SET
|
||||
| # 3 |
69691-00A00-000 6969100A00000 6969100A00000 |
BOOT
|
||||
| # 4 |
69692-27A30-000 6969227A30000 6969227A30000 |
YOKE
|
||||
| # 5 |
69670-48B00-000 6967048B00000 6967048B00000 |
PUSH ROD
ROD, PUSH
|
||||
| # 6 |
69693-05A00-000 6969305A00000 6969305A00000 |
NUT
|
||||
| # 7 |
69672-05A00-000 6967205A00000 6967205A00000 |
CONNECTOR
|
||||
| # 8 |
69686-34200-000 6968634200000 6968634200000 |
O RING
|
||||
| # 9 |
02112-7412A-000 021127412A000 021127412A000 |
SCREW
|
||||
| # 10 |
09106-08167-000 0910608167000 0910608167000 |
BOLT, BRACKET
BOLT (8X20) |
||||
| # 11 |
69740-38B21-000 6974038B21000 6974038B21000 |
RR RESERVOIR TANK
TANK ASSY, REAR RESERVOIR
|
||||
| # 12 |
59667-04700-000 5966704700000 5966704700000 |
DIAPHRAGM
|
||||
| # 13 |
59669-05D00-000 5966905D00000 5966905D00000 |
CAP
|
||||
| # 14 |
69689-04A00-000 6968904A00000 6968904A00000 |
SCREW
|
Niet beschikbaar | |||
| # 15 |
01547-0612B-000 015470612B000 015470612B000 |
BOLT
|
||||
| # 16 |
69731-31F00-000 6973131F00000 6973131F00000 |
HOSE, REAR RESERVOIR TANK
HOSE, RESERVOIR TANK |
||||
| # 17 |
09401-13417-000 0940113417000 0940113417000 |
CLIP
CLAMP
|
||||
| # 18 |
09360-10062-000 0936010062000 0936010062000 |
BOLT
BOLT (10X1.25X22)
|
||||
| # 19 |
09161-10009-000 0916110009000 0916110009000 |
WASHER
WASHER (10X15X1.5)
|
||||
| # 20 |
69480-18H00-000 6948018H00000 6948018H00000 |
HOSE ASSY, REAR BRAKE NO.2
|
||||
| # 21 |
09200-06068-000 0920006068000 0920006068000 |
SHAFT, SHALLOW DRIVE ARM
PIN
|
||||
| # 22 |
08322-0106B-000 083220106B000 083220106B000 |
WASHER
|
||||
| # 23 |
04111-2015A-000 041112015A000 041112015A000 |
PIN, COTTER
|
||||
| # 24 |
61196-38G01-000 6119638G01000 6119638G01000 |
GUIDE, RR BRAKE HOSE
|
||||
| # 25 |
02142-0616A-000 021420616A000 021420616A000 |
SCREW
|
Suzuki GSX-F
Cilinderinhoud: 650 cc Jaar: 2010 Model code GSX650FAL0(E3 / E28) ABS
