Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
14150-17G00-000 1415017G00000 1415017G00000 |
PIPE, EXHAUST REAR
|
||||
| # 2 |
14160-17G00-000 1416017G00000 1416017G00000 |
PIPE, EXHAUST FRONT
|
||||
| # 3 |
14181-22D01-000 1418122D01000 1418122D01000 |
GASKET, EXHAUST PIPE
|
||||
| # 4 |
14771-32E00-000 1477132E00000 1477132E00000 |
CONNECTOR, MUF
CONNECTOR, MUFFLER
|
||||
| # 5 |
07120-0835B-000 071200835B000 071200835B000 |
BOLT
|
||||
| # 6 |
09118-08152-A05 0911808152A05 0911808152A05 |
BOLT
BOLT (8X45)
|
||||
| # 7 |
09180-08152-000 0918008152000 0918008152000 |
SPACER, 8.6X12X20.1
SPACER (8.6X12X24.2)
|
||||
| # 8 |
09320-12048-000 0932012048000 0932012048000 |
CUSHION
|
||||
| # 9 |
09118-08152-A05 0911808152A05 0911808152A05 |
BOLT
BOLT (8X45)
|
||||
| # 10 |
09180-08152-000 0918008152000 0918008152000 |
SPACER, 8.6X12X20.1
SPACER (8.6X12X24.2)
|
||||
| # 11 |
09320-12048-000 0932012048000 0932012048000 |
CUSHION
|
||||
| # 12 |
09106-08165-000 0910608165000 0910608165000 |
BOLT, EXH PIPE
BOLT
|
||||
| # 13 |
07130-0825B-000 071300825B000 071300825B000 |
BOLT. SPEED ROTOR
BOLT
|
||||
| # 14 |
14305-17G60-H01 1430517G60H01 1430517G60H01 |
MUFFLER
|
||||
| # 15 |
09106-06084-000 0910606084000 0910606084000 |
BOLT
BOLT (6X20) |
||||
| # 16 |
14459-19F10-000 1445919F10000 1445919F10000 |
CLAMP, MUF CONN
CLAMP |
||||
| # 17 |
09160-08142-000 0916008142000 0916008142000 |
WASHER
WASHER (8.5X28X1.5) |
||||
| # 18 |
09103-08358-000 0910308358000 0910308358000 |
BOLT
BOLT (8X45)
|
||||
| # 19 |
09180-08152-000 0918008152000 0918008152000 |
SPACER, 8.6X12X20.1
SPACER (8.6X12X24.2)
|
||||
| # 20 |
09320-12048-000 0932012048000 0932012048000 |
CUSHION
|
||||
| # 21 |
08361-2508A-000 083612508A000 083612508A000 |
NUT
|
||||
| # 22 |
14770-17G00-000 1477017G00000 1477017G00000 |
COVER, EXHAUST JOINT
|
||||
| # 23 |
14185-17G00-000 1418517G00000 1418517G00000 |
CLAMP, EXHAUST COVER
|
||||
| # 24 |
09106-06084-000 0910606084000 0910606084000 |
BOLT
BOLT (6X20) |
||||
| # 25 |
09103-08365-000 0910308365000 0910308365000 |
BOLT
BOLT (8X35)
|
||||
| # 26 |
18213-17G01-000 1821317G01000 1821317G01000 |
SENSOR, OXYGEN
|
||||
| # 27 |
09407-10404-000 09407-14407-0000940710404000 |
CLAMP
CLAMP (L:100) |
||||
| # 28 |
09407-14403-000 0940714403000 0940714403000 |
CLAMP (L:125)
|

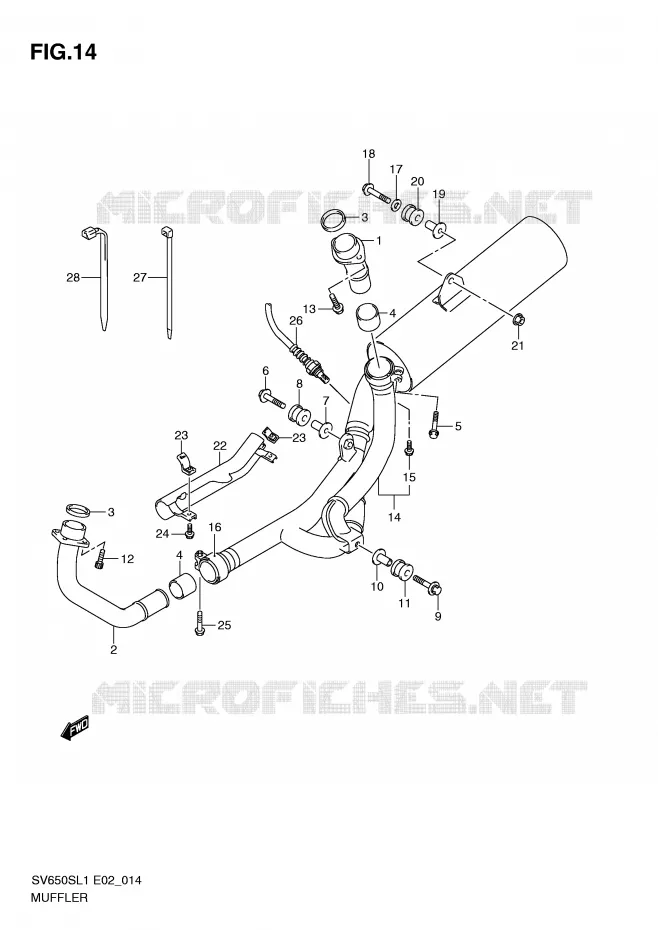

Suzuki SV
Cilinderinhoud: 650 cc Jaar: 2011 Model code SV650SAL1(E2) ABS
