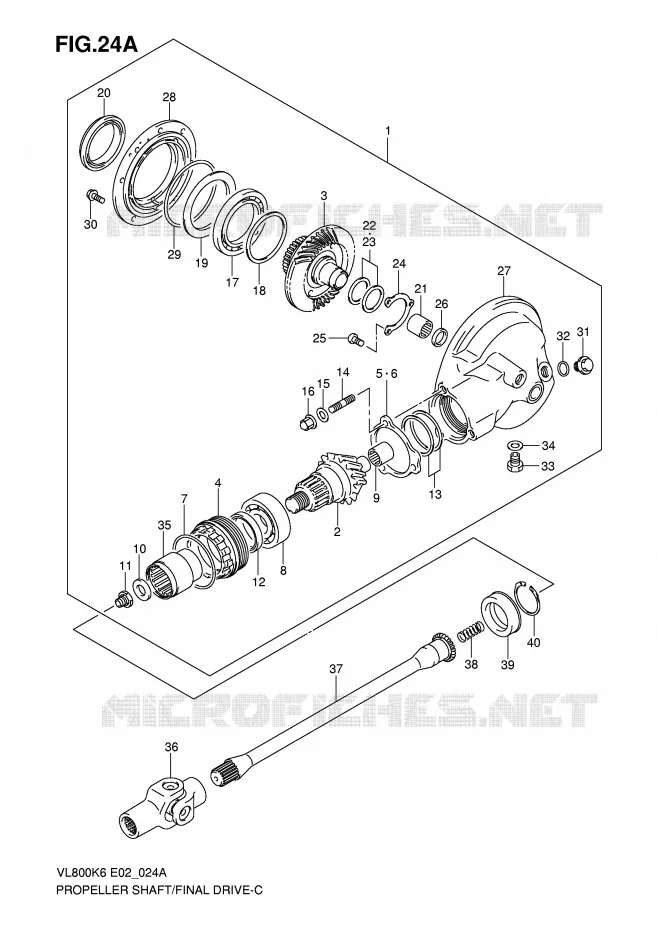

| # 1 |
27301-38811-000 2730138811000 2730138811000 |
GEAR & CASE SET, FINAL BEVEL
|
||||
| # 2 |
27311-38A00-000 2731138A00000 2731138A00000 |
GEAR, FINAL DRIVE BEV
GEAR, FINAL DRIVE BEVEL |
||||
| # 3 |
27320-45C01-000 2732045C01000 2732045C01000 |
GEAR, FINAL DRIVEN BE
GEAR, FINAL DRIVEN BEVEL |
||||
| # 4 |
27312-38A00-000 2731238A00000 2731238A00000 |
STOPPER
STOPPER, BEARING |
||||
| # 5 |
27313-38A00-000 2731338A00000 2731338A00000 |
PLATE, BEARING STOPPER
PLATE |
||||
| # 6 |
27313-38A10-000 2731338A10000 2731338A10000 |
PLATE
|
||||
| # 7 |
09280-62002-000 0928062002000 0928062002000 |
O RING
O RING (D:1.9, ID:61.6) |
||||
| # 8 |
09267-30005-000 0926730005000 0926730005000 |
NTN B1 30X62X24
BEARING (30X62X23.8) |
||||
| # 9 |
09263-17028-000 0926317028000 0926317028000 |
KOYO R3 17X32X16
BEARING (17X32X16) |
||||
| # 10 |
09160-16029-000 0916016029000 0916016029000 |
WASHER (16X29X4)
|
||||
| # 11 |
09159-16010-000 0915916010000 0915916010000 |
NUT
|
||||
| # 12 |
09283-38009-000 0928338009000 0928338009000 |
OIL SEAL (38X54X6)
|
||||
| # 13 |
27445-38810-000 2744538810000 2744538810000 |
SHIM SET
SHIM SET, FINAL |
||||
| # 14 |
09108-10095-000 0910810095000 0910810095000 |
BOLT, STUD L:25
STUD BOLT |
||||
| # 15 |
09164-10008-000 0916410008000 0916410008000 |
WASHER 10.2X20X1.45
LOCK WASHER
|
||||
| # 16 |
09159-10026-000 0915910026000 0915910026000 |
NUT
|
||||
| # 17 |
09262-70001-000 0926270001000 0926270001000 |
NTN B1 70X110X13 *
BEARING, RH (70X110X13) |
||||
| # 18 |
27327-34810-000 2732734810000 2732734810000 |
SHIM SET
SHIM SET, DRIVE GEAR BEARING |
||||
| # 19 |
27328-34200-000 2732834200000 2732834200000 |
PLATE
|
||||
| # 20 |
09289-70001-000 0928970001000 0928970001000 |
OIL SEAL
OIL SEAL, RH (70X96X16) |
||||
| # 21 |
09263-32007-000 0926332007000 0926332007000 |
NTN R3 32X46X18 *
BEARING, LH (32X46X17.7) |
||||
| # 22 |
27326-34820-000 2732634820000 2732634820000 |
SHIM SET
SHIM SET, FINAL DRIVE GEAR |
||||
| # 23 |
27326-34810-000 2732634810000 2732634810000 |
SHIM SET, FINAL DRIVE GEAR
|
||||
| # 24 |
27329-34200-000 2732934200000 2732934200000 |
HOLDER
RETAINER, BEARING |
||||
| # 25 |
02112-0612B-000 021120612B000 021120612B000 |
SCREW. CENTER SHAFT
SCREW
|
||||
| # 25 |
09125-06110-000 0912506110000 0912506110000 |
BOLT, 6X12
SCREW (6X12) |
||||
| # 26 |
09283-30028-000 0928330028000 0928330028000 |
OIL SEAL
OIL SEAL (30X42X7) |
||||
| # 27 |
27450-38A20-000 27450-38A70-20H2745038A20000 |
CASE, FINAL GEAR
|
||||
| # 28 |
27460-07A01-000 2746007A01000 2746007A01000 |
CASE
CASE, FINAL GEAR BEARING |
||||
| # 29 |
09280-00015-000 0928000015000 0928000015000 |
O-RING
O RING (D:3.5, ID:131.6) |
||||
| # 30 |
01550-0825A-000 015500825A000 015500825A000 |
BOLT. FINAL GEAR BEARIN
BOLT
|
||||
| # 31 |
09247-18001-000 0924718001000 0924718001000 |
PLUG
PLUG, OIL FILLER |
||||
| # 32 |
09280-18004-000 0928018004000 0928018004000 |
O RING
O RING (D:2.4, ID:17.8) |
||||
| # 33 |
09247-14002-000 0924714002000 0924714002000 |
PLUG
PLUG, OIL DRAIN
|
||||
| # 34 |
09168-14002-000 0916814002000 0916814002000 |
GASKET 13.8X18.8X4.8MM
GASKET (13.8X18.8X0.4)
|
||||
| # 35 |
27172-38A00-000 2717238A00000 2717238A00000 |
COUPLING
COUPLING, PROPELLER SHAFT |
||||
| # 36 |
27100-38A50-000 27100-38A60-0002710038A50000 |
YOKE, UNIVERSAL JOINT
|
||||
| # 37 |
27151-41F00-000 2715141F00000 2715141F00000 |
SHAFT, PROPELLER
|
||||
| # 38 |
09440-18019-000 0944018019000 0944018019000 |
SPRING
|
||||
| # 39 |
09283-30051-000 0928330051000 0928330051000 |
OIL SEAL 30X45X15
OIL SEAL (28.4X48X15) |
||||
| # 40 |
09381-40003-000 0938140003000 0938140003000 |
CIRCLIP
|
