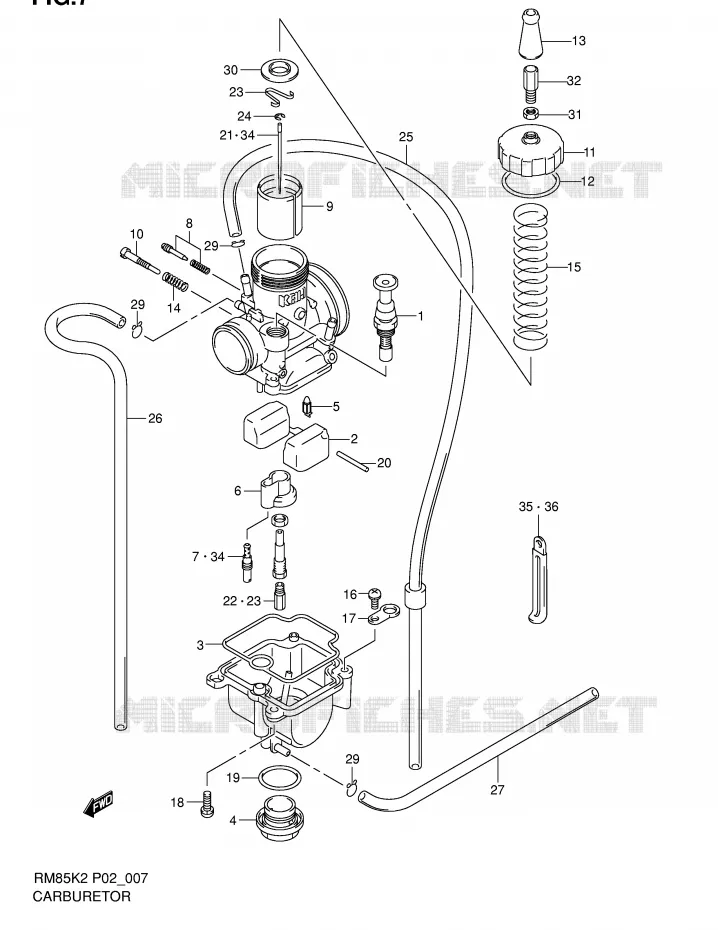

CARBURATOR VOOR SUZUKI RM 85 2002

LUCHTFILTER

(1) 13410-03B00-000

VALVE ASSY, STARTER

(2) 13252-03B00-000

FLOAT ASSY
FLOAT

(2) 13252-03B00-000

FLOAT ASSY
FLOAT

(3) 13251-03B00-000

GASKET

(4) 13247-28E00-000

BOLT
BOLT, DRAIN

(5) 13370-03B01-000

VALVE SET,FLOAT
VALVE ASSY, NEEDLE

(5) 13370-03B01-000

VALVE SET,FLOAT
VALVE ASSY, NEEDLE

(5) 13370-03B01-000

VALVE SET,FLOAT
VALVE ASSY, NEEDLE
VALVE SET,FLOAT

(5) 13370-03B01-000

VALVE SET,FLOAT
VALVE ASSY, NEEDLE
VALVE SET,FLOAT

(6) 13331-03B00-000

HOLDER, JET

(7) 09492-50023-000

SLOW JET 50
JET, PILOT (50)

(8) 13269-03B00-000

ADJUST SCREW SET

(9) 13551-03B00-000

THROTTLE VALVE

(10) 13267-03B00-000

STOP SCREW

(11) 13261-03B00-000

COVER

(12) 13266-03B00-000

GASKET

(13) 13681-03B00-000

CAP

(14) 13268-03B00-000

SPRING

(15) 13573-03B00-000

SPRING

(16) 02112-14087-000

SCREW

(17) 13693-28E00-000

PLATE

(18) 13601-14F80-000

SCREW

(19) 13246-28E00-000

O RING

(20) 13254-92311-000

PIN, FLOAT

(21) 13383-03B20-000

NEEDLE (24NAAH)

(22) 09491-25019-000

JET,MAIN,125
JET, MAIN (#125)

(23) 13398-03B00-000

CLIP

(23) 13398-03B00-000

CLIP

(24) 13394-28E00-000

NEEDLE CLIP
CLIP, NEEDLE

(25) 13686-03B00-000

PIPE ASSY

(26) 13686-36E00-000

HOSE, 4X7X620

(27) 13686-36E00-000

HOSE, 4X7X620

(28) 09401-06101-000

CLIP

(29) 13629-03B00-000

VALVE PLATE

(29) 13629-03B00-000

VALVE PLATE

(29) 13629-03B00-000

VALVE PLATE

(30) 13661-03B00-000

NUT

(31) 13577-03B00-000

ADJUST BOLT

(32) 09491-25019-000

JET, MAIN (125)

(32) 09491-25020-000

JET, MAIN (128)

(32) 09491-23028-000

JET, MAIN (118)

(32) 09491-24030-000

JET, MAIN (120)

(32) 09491-24031-000

JET, MAIN (122)

(32) 09491-26018-000

JET, MAIN (132)

(32) 09491-27016-000

JET, MAIN (135)

(32) 09491-27017-000

JET, MAIN (138)

(32) 09491-28019-000

JET, MAIN (140)

(32) 09491-29014-000

JET, MAIN (145)

(32) 09491-23027-000

JET, MAIN (115)

(32) 09491-26017-000

JET, MAIN (130)

(32) 09491-28020-000

JET, MAIN (142)

(33) 09492-45032-000

SLOW JET 45
JET, PILOT (45)

(33) 09492-48013-000

PILOT JET 48
JET, PILOT (48)

(33) 09492-50023-000

SLOW JET 50
JET, PILOT (50)

(33) 09492-55017-000

SLOW JET 55
JET, PILOT (55)

(33) 09492-58001-000

PILOT JET 58
JET, PILOT (58)

(33) 09492-52011-000

PILOT JET 52
JET, PILOT (52)

(34) 13383-03B20-000

NEEDLE (24NAAH)

(34) 13383-03B20-000

NEEDLE (24NAAH)

(34) 13383-03B30-000

NEEDLE (24NAAJ)

(34) 13383-03B30-000

NEEDLE (24NAAJ)

(34) 13383-03B40-000

NEEDLE (24NAAK)

(34) 13383-03B40-000

NEEDLE (24NAAK)

(34) 13383-03B00-000

NEEDLE (24NAAF)

(34) 13383-03B00-000

NEEDLE (24NAAF)

(34) 13383-03B10-000

NEEDLE (24NAAG)

(34) 13383-03B10-000

NEEDLE (24NAAG)

(34) 13383-03B50-000

NEEDLE (24NCDF)

(34) 13383-03B50-000

NEEDLE (24NCDF)

(34) 13383-03B60-000

NEEDLE (24NCDG)

(34) 13383-03B60-000

NEEDLE (24NCDG)

(34) 13383-03B70-000

NEEDLE (24NCDH)

(34) 13383-03B70-000

NEEDLE (24NCDH)

(34) 13383-03B80-000

NEEDLE (24NCDJ)

(34) 13383-03B80-000

NEEDLE (24NCDJ)

(34) 13383-03B90-000

NEEDLE (24NCDK)

(34) 13383-03B90-000

NEEDLE (24NCDK)

(35) 09404-06039-000

CLAMP

(36) 09404-08206-000

CLAMP,L:82
CLAMP

99x

(99x) 13200-03B10-000

CARBURETOR ASSY

	Onderdeelnummer	Produkt	Aantal
# 1	13410-03B00-000 1341003B00000 1341003B00000	VALVE ASSY, STARTER	60,43 €
# 2	13252-03B00-000 1325203B00000 1325203B00000	FLOAT ASSY FLOAT	23,63 €
# 3	13251-03B00-000 1325103B00000 1325103B00000	GASKET	20,36 €
# 4	13247-28E00-000 1324728E00000 1324728E00000	BOLT BOLT, DRAIN	19,39 €
# 5	13370-03B00-000 13370-03B01-000 1337003B00000	VALVE SET, FLOAT VALVE ASSY, NEEDLE	36,87 €
# 6	13331-03B00-000 1333103B00000 1333103B00000	HOLDER, JET	16,30 €
# 7	09492-50023-000 0949250023000 0949250023000	SLOW JET 50 JET, PILOT (50)	12,51 €
# 8	13269-03B00-000 1326903B00000 1326903B00000	ADJUST SCREW SET	22,54 €
# 9	13551-03B00-000 1355103B00000 1355103B00000	THROTTLE VALVE	71,81 €
# 10	13267-03B00-000 1326703B00000 1326703B00000	STOP SCREW	11,54 €
# 11	13261-03B00-000 1326103B00000 1326103B00000	COVER	24,13 €
# 12	13266-03B00-000 1326603B00000 1326603B00000	GASKET	7,92 €
# 13	13681-03B00-000 1368103B00000 1368103B00000	CAP	6,26 €
# 14	13268-03B00-000 1326803B00000 1326803B00000	SPRING	6,01 €
# 15	13573-03B00-000 1357303B00000 1357303B00000	SPRING	12,49 €
# 16	02112-14087-000 0211214087000 0211214087000	SCREW	1,86 €
# 17	13693-28E00-000 1369328E00000 1369328E00000	PLATE	6,50 €
# 18	13253-03B00-000 13601-14F80-000 1325303B00000	SCREW	3,90 €
# 19	13246-28E00-000 1324628E00000 1324628E00000	O RING	8,10 €
# 20	13254-92311-000 1325492311000 1325492311000	PIN, FLOAT	2,28 €
# 21	13383-03B20-000 1338303B20000 1338303B20000	NEEDLE (24NAAH)	16,35 €
# 22	09491-25019-000 0949125019000 0949125019000	JET, MAIN, 125 JET, MAIN (#125)	12,51 €
# 23	13398-03B00-000 1339803B00000 1339803B00000	CLIP	7,74 €
# 24	13394-28E00-000 1339428E00000 1339428E00000	NEEDLE CLIP CLIP, NEEDLE	7,03 €
# 25	13686-03B00-000 1368603B00000 1368603B00000	PIPE ASSY	9,09 €
# 26	13686-36E00-000 1368636E00000 1368636E00000	HOSE, 4X7X620	11,36 €
# 27	13686-36E00-000 1368636E00000 1368636E00000	HOSE, 4X7X620	11,36 €
# 28	09401-06101-000 0940106101000 0940106101000	CLIP	2,68 €
# 29	13629-03B00-000 1362903B00000 1362903B00000	VALVE PLATE	5,95 €
# 30	13661-03B00-000 1366103B00000 1366103B00000	NUT	5,06 €
# 31	13577-03B00-000 1357703B00000 1357703B00000	ADJUST BOLT	7,08 €
# 32	09491-23027-000 0949123027000 0949123027000	JET, MAIN (115)	11,20 €
# 32	09491-23028-000 0949123028000 0949123028000	JET, MAIN (118)	11,80 €
# 32	09491-24030-000 0949124030000 0949124030000	JET, MAIN (120)	11,80 €
# 32	09491-24031-000 0949124031000 0949124031000	JET, MAIN (122)	11,80 €
# 32	09491-25019-000 0949125019000 0949125019000	JET, MAIN (125)	12,51 €
# 32	09491-25020-000 0949125020000 0949125020000	JET, MAIN (128)	12,51 €
# 32	09491-26017-000 0949126017000 0949126017000	JET, MAIN (130)	11,20 €
# 32	09491-26018-000 0949126018000 0949126018000	JET, MAIN (132)	11,80 €
# 32	09491-27016-000 0949127016000 0949127016000	JET, MAIN (135)	11,80 €
# 32	09491-27017-000 0949127017000 0949127017000	JET, MAIN (138)	11,80 €
# 32	09491-28019-000 0949128019000 0949128019000	JET, MAIN (140)	11,80 €
# 32	09491-28020-000 0949128020000 0949128020000	JET, MAIN (142)	11,20 €
# 32	09491-29014-000 0949129014000 0949129014000	JET, MAIN (145)	11,80 €
# 33	09492-45032-000 0949245032000 0949245032000	SLOW JET 45 JET, PILOT (45)	12,51 €
# 33	09492-48013-000 0949248013000 0949248013000	PILOT JET 48 JET, PILOT (48)	12,51 €
# 33	09492-50023-000 0949250023000 0949250023000	SLOW JET 50 JET, PILOT (50)	12,51 €
# 33	09492-52011-000 0949252011000 0949252011000	PILOT JET 52 JET, PILOT (52)	11,80 €
# 33	09492-55017-000 0949255017000 0949255017000	SLOW JET 55 JET, PILOT (55)	12,51 €
# 33	09492-58001-000 0949258001000 0949258001000	PILOT JET 58 JET, PILOT (58)	12,51 €
# 34	13383-03B00-000 1338303B00000 1338303B00000	NEEDLE (24NAAF)	14,15 €
# 34	13383-03B10-000 1338303B10000 1338303B10000	NEEDLE (24NAAG)	14,15 €
# 34	13383-03B20-000 1338303B20000 1338303B20000	NEEDLE (24NAAH)	16,35 €
# 34	13383-03B30-000 1338303B30000 1338303B30000	NEEDLE (24NAAJ)	15,13 €
# 34	13383-03B40-000 1338303B40000 1338303B40000	NEEDLE (24NAAK)	15,13 €
# 34	13383-03B50-000 1338303B50000 1338303B50000	NEEDLE (24NCDF)	14,15 €
# 34	13383-03B60-000 1338303B60000 1338303B60000	NEEDLE (24NCDG)	14,15 €
# 34	13383-03B70-000 1338303B70000 1338303B70000	NEEDLE (24NCDH)	14,15 €
# 34	13383-03B80-000 1338303B80000 1338303B80000	NEEDLE (24NCDJ)	14,15 €
# 34	13383-03B90-000 1338303B90000 1338303B90000	NEEDLE (24NCDK)	14,15 €
# 35	09404-06429-000 09404-06039-000 0940406429000	CLAMP	2,86 €
# 36	09404-08206-000 0940408206000 0940408206000	CLAMP, L:82 CLAMP	4,02 €
# 99x	13200-03B10-000 1320003B10000 1320003B10000	CARBURETOR ASSY	237,27 €

Houd er rekening mee dat de te koop aangeboden onderdelen onderdelen zijn uit de catalogus van de fabrikant, we moeten ze soms speciaal voor u bestellen bij Suzuki. Raadpleeg het gedeelte Verzending en Levering voor meer informatie over levertijden.
De schema's zijn niet contractueel, als u vragen heeft, staan onze professionals voor u klaar om u zo goed mogelijk te helpen en te adviseren.
Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de benodigde hoeveelheid bestelt. Houd er rekening mee dat de aangegeven eenheidsprijs de prijs is voor elk onderdeelnummer in hoeveelheid 1.
Onze onderdelen zijn originele en gloednieuwe reserveonderdelen van Suzuki, om u kwaliteit en duurzame componenten te garanderen. Als u vragen heeft, zijn wij er om u te helpen.
