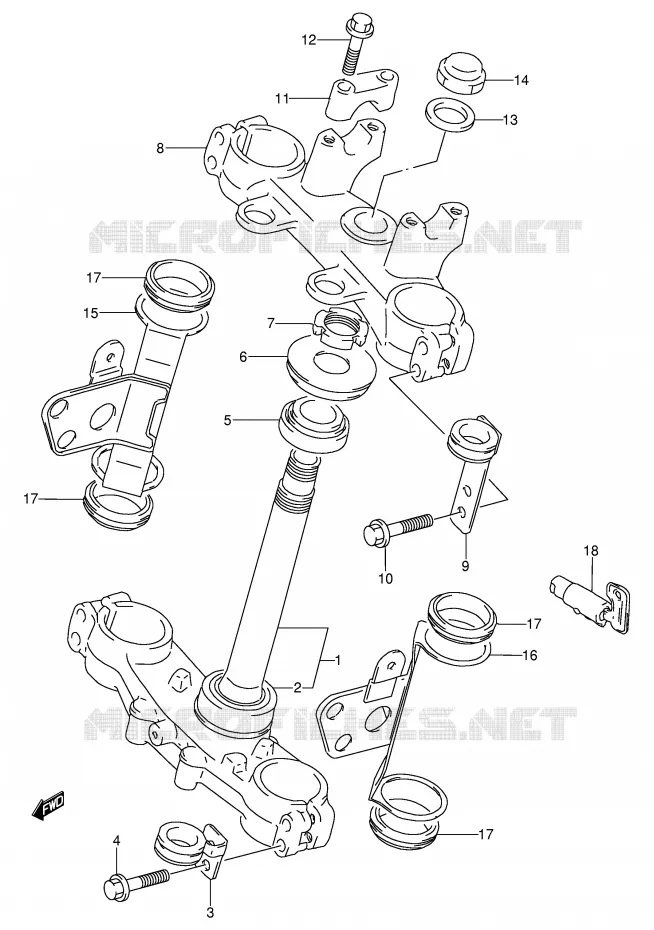

| # 1 |
51410-14D10-000 5141014D10000 5141014D10000 |
STEERING STEM
STEM, STEERING |
||||
| # 2 |
09265-30009-000 09265-30034-0000926530009000 |
TAPER ROLLER BEARING
BEARING
|
||||
| # 3 |
51453-03D10-000 5145303D10000 5145303D10000 |
GUIDE, CABLE, LOWER, L
GUIDE, CABLE LH LOWER |
||||
| # 4 |
01517-08407-000 01550-08407-0000151708407000 |
BOLT, SEC CASE
BOLT, LOWER |
||||
| # 5 |
09265-25008-000 09265-25019-0000926525008000 |
BEARING
BEARING, UPPER (25X47X15) |
||||
| # 6 |
51643-40200-000 5164340200000 5164340200000 |
DUST SEAL, STEERING U
DUST SEAL |
||||
| # 7 |
51631-40200-000 5163140200000 5163140200000 |
NUT, STEERING STEM
NUT, STEM |
||||
| # 8 |
51311-14D10-000 5131114D10000 5131114D10000 |
STEERING STEM HEAD
HEAD, STEERING STEM |
||||
| # 9 |
51288-14D10-000 5128814D10000 5128814D10000 |
GUIDE
GUIDE, CABLE LH UPPER |
Niet beschikbaar | |||
| # 10 |
01517-08405-000 01550-0840A-0000151708405000 |
BOLT
BOLT, UPPER |
||||
| # 11 |
56211-27200-291 5621127200291 5621127200291 |
HOLDER, HANDLEBAR
HOLDER, HANDLE
|
||||
| # 12 |
01517-08355-000 01550-0835B-0000151708355000 |
BOLT
BOLT, HOLDER |
||||
| # 13 |
51354-14D00-000 5135414D00000 5135414D00000 |
WASHER
|
||||
| # 14 |
51353-03D00-000 51353-24B00-0005135303D00000 |
NUT
|
||||
| # 15 |
51530-15D00-000 5153015D00000 5153015D00000 |
HEADLAMP RH BRACKET
BRACKET, HEADLAMP RH |
||||
| # 16 |
51540-15D00-000 5154015D00000 5154015D00000 |
HEADLAMP LH BRACKET
BRACKET, HEADLAMP LH |
||||
| # 17 |
51553-15D00-000 51553-15D01-0005155315D00000 |
DAMPER, HEAD LAMP HSG BRKT COMP
DAMPER, BRACKET
|
||||
| # 18 |
51900-30901-000 51900-309V0-0005190030901000 |
LOCK SET, STEERING
LOCK ASSY STEERING (NEIMAN) |
