| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

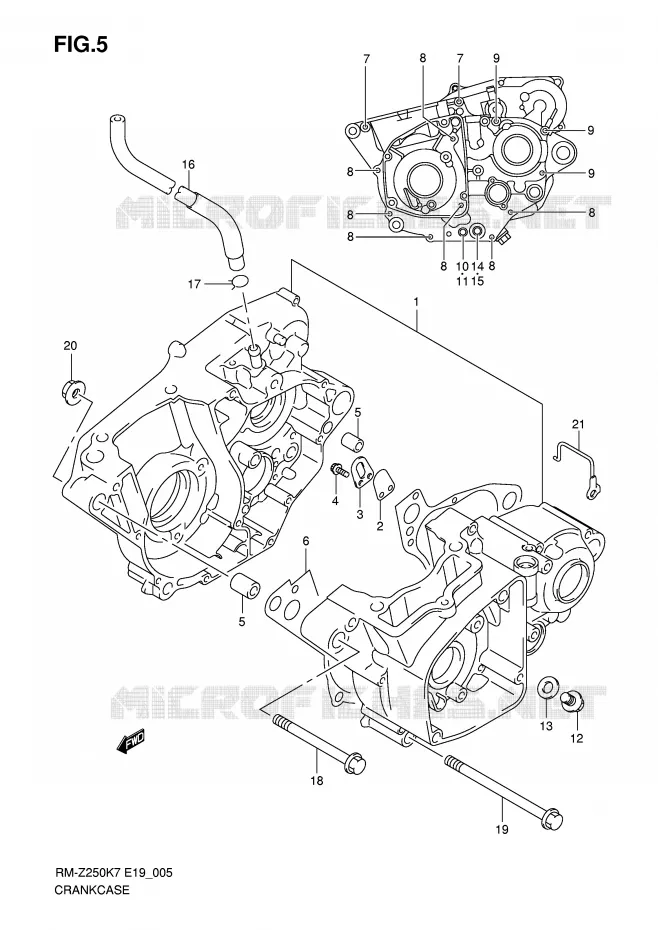

| # 1 |
11300-10881-000 11300-10882-0001130010881000 |
CRANKCASE SET
|
||||
| # 2 |
11322-35G00-000 1132235G00000 1132235G00000 |
VALVE, CRANKCASE REED
|
||||
| # 3 |
11323-35G00-000 1132335G00000 1132335G00000 |
STOPPER, CRANKCASE REED VALVE
|
||||
| # 4 |
07120-0512B-000 071200512B000 071200512B000 |
BOLT. SPEED SENSOR
BOLT, REED VALVE
|
||||
| # 5 |
09206-13020-000 0920613020000 0920613020000 |
PIN.10.4X13X18
PIN, CRANKCASE |
||||
| # 6 |
11481-10H00-000 1148110H00000 1148110H00000 |
GASKET, CRANKCASE
|
||||
| # 7 |
01547-0640A-000 015470640A000 015470640A000 |
BOLT
BOLT, CRANKCASE (6X40)
|
||||
| # 8 |
01547-0655A-000 015470655A000 015470655A000 |
BOLT
BOLT, CRANKCASE (6X55) |
||||
| # 9 |
01547-0670A-000 015470670A000 015470670A000 |
BOLT
BOLT, CRANKCASE (6X70) |
||||
| # 10 |
07120-0610B-000 071200610B000 071200610B000 |
BOLT
PLUG, OIL DRAIN |
||||
| # 11 |
09168-06004-000 0916806004000 0916806004000 |
GASKET
GASKET, OIL DRAIN PLUG
|
||||
| # 12 |
09247-12006-000 0924712006000 0924712006000 |
PLUG
PLUG, OIL DRAIN |
||||
| # 13 |
09168-12002-000 0916812002000 0916812002000 |
GASKET
|
||||
| # 14 |
16316-10H00-000 16316-10H01-0001631610H00000 |
CAP, ENG OIL STRAINER
|
||||
| # 15 |
09168-16003-000 0916816003000 0916816003000 |
GASKET
|
||||
| # 16 |
11332-35G10-000 11332-49H11-0001133235G10000 |
HOSE, BREATHER
|
||||
| # 17 |
09401-13301-000 0940113301000 0940113301000 |
CLAMP
CLIP, BREATHER HOSE
|
||||
| # 18 |
09103-10387-000 0910310387000 0910310387000 |
BOLT. RR KNUCKLE UPPER
BOLT (10X96) |
||||
| # 19 |
09103-10388-000 0910310388000 0910310388000 |
BOLT. RR SPNSN ARM UPPER
BOLT (10X120) |
||||
| # 20 |
09159-10078-000 0915910078000 0915910078000 |
NUT
|
||||
| # 21 |
13694-35G00-000 1369435G00000 1369435G00000 |
GUIDE, CARBURETOR HOSE
|
EUROPE
