| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

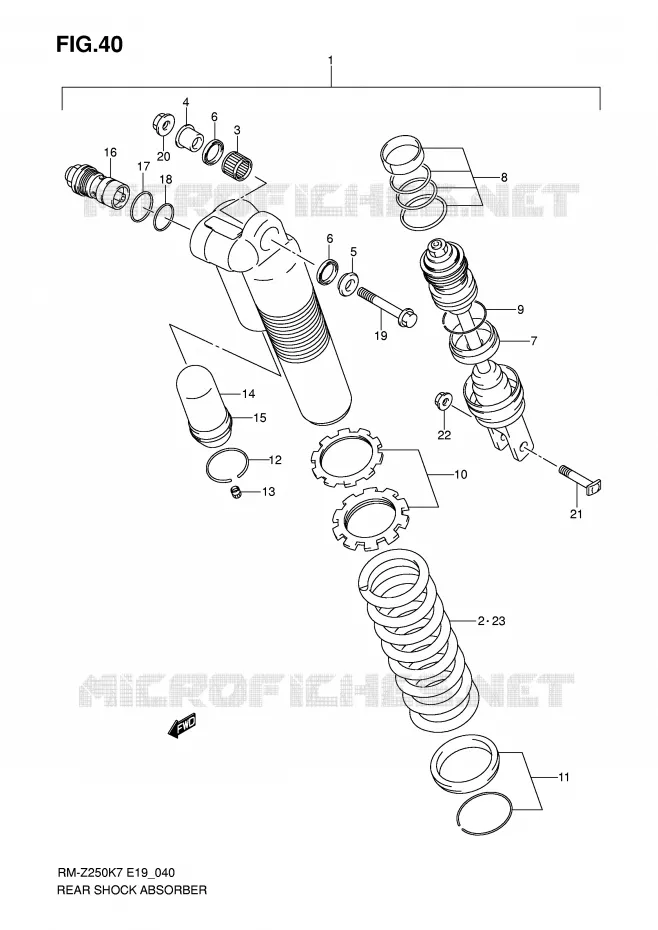

| # 1 |
62100-10H10-YKS 6210010H10YKS 6210010H10YKS |
ABSORBER ASSY, RR SHOCK (RED)
|
Niet beschikbaar | |||
| # 1 |
62100-10H40-YKS 6210010H40YKS 6210010H40YKS |
ABSORBER ASSY, RR SHOCK (RED)
|
Niet beschikbaar | |||
| # 2 |
62211-10H00-000 6221110H00000 6221110H00000 |
SPRING (K=5.4)
|
||||
| # 3 |
09263-16033-000 0926316033000 0926316033000 |
BEARING
BEARING (16X22X12) |
||||
| # 4 |
62684-36F00-000 6268436F00000 6268436F00000 |
SPACER, UPPER BRG, R
SPACER, BEARING RH |
||||
| # 5 |
62685-36F00-000 6268536F00000 6268536F00000 |
SPACER, UPPER BRG, L
SPACER, BEARING LH |
||||
| # 6 |
09284-16005-000 0928416005000 0928416005000 |
SEAL
SEAL, DUST RH |
||||
| # 7 |
62120-10H00-000 6212010H00000 6212010H00000 |
ROD, PISTON
|
||||
| # 7 |
62120-10H30-000 6212010H30000 6212010H30000 |
ROD, PISTON
|
||||
| # 8 |
62150-36EB0-000 6215036EB0000 6215036EB0000 |
O RING SET
|
||||
| # 9 |
62279-36E80-000 6227936E80000 6227936E80000 |
RING, STOPPER
|
||||
| # 10 |
62190-36F00-000 6219036F00000 6219036F00000 |
ADJUSTER SET
|
||||
| # 11 |
62220-36F00-000 6222036F00000 6222036F00000 |
SPRING SEAT SET
|
||||
| # 12 |
62278-36E00-000 6227836E00000 6227836E00000 |
RING, STOPPER
|
||||
| # 13 |
52194-46686-000 5219446686000 5219446686000 |
CAP
|
||||
| # 14 |
62273-36F00-000 6227336F00000 6227336F00000 |
BLADDER
|
||||
| # 15 |
62275-10H30-000 6227510H30000 6227510H30000 |
CAP, CHAMBER
|
||||
| # 15 |
62275-10H00-000 6227510H00000 6227510H00000 |
CAP, CHAMBER
|
Niet beschikbaar | |||
| # 16 |
62130-10H00-000 6213010H00000 6213010H00000 |
BOLT, PLUG
|
||||
| # 16 |
62130-10H30-000 6213010H30000 6213010H30000 |
BOLT, PLUG
|
||||
| # 17 |
62131-28E00-000 6213128E00000 6213128E00000 |
O RING
|
||||
| # 18 |
51174-36EB0-000 5117436EB0000 5117436EB0000 |
O RING
|
||||
| # 18 |
51174-43D00-000 5117443D00000 5117443D00000 |
O RING
|
||||
| # 19 |
09103-10329-000 0910310329000 0910310329000 |
BOLT
|
||||
| # 20 |
09159-10115-000 0915910115000 0915910115000 |
NUT.ENG RH MTG BRKT
NUT
|
||||
| # 21 |
62221-37F30-000 6222137F30000 6222137F30000 |
BOLT
|
||||
| # 22 |
09159-10067-000 0915910067000 0915910067000 |
NUT
|
||||
| # 23 |
62211-10H10-000 6221110H10000 6221110H10000 |
SPRING (K=5.2)
|
||||
| # 23 |
62211-10H20-000 6221110H20000 6221110H20000 |
SPRING (K=5.0)
|
||||
| # 23 |
62211-35G30-000 6221135G30000 6221135G30000 |
SPRING (K=5.7)
|
||||
| # 23 |
62211-37FM0-000 6221137FM0000 6221137FM0000 |
SPRING (HARD.K=5.6)
SPRING (K=5.6) |
EUROPE
