Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

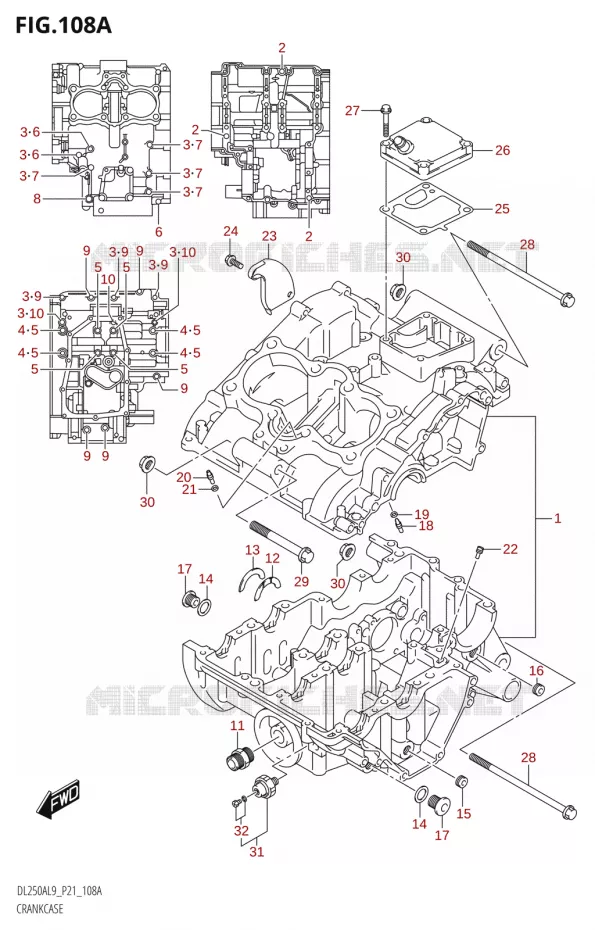

| # 1 |
11301-48810-000 11301-48811-0001130148810000 |
CRANKCASE SET
|
||||
| # 2 |
04211-11129-000 0421111129000 0421111129000 |
PIN OD:11 L:12
.PIN
|
||||
| # 3 |
09168-06L04-000 0916806L04000 0916806L04000 |
GASKET
.GASKET (5.8X13X1.8) |
||||
| # 4 |
09168-08035-000 0916808035000 0916808035000 |
.GASKET (8.2X14X1)
|
||||
| # 5 |
09103-08554-000 0910308554000 0910308554000 |
.BOLT (8X105)
|
||||
| # 6 |
01547-0635A-000 015470635A000 015470635A000 |
.BOLT
|
||||
| # 7 |
01547-0655A-000 015470655A000 015470655A000 |
.BOLT
|
||||
| # 8 |
01550-0855A-000 015500855A000 015500855A000 |
.BOLT
|
||||
| # 9 |
01547-0635A-000 015470635A000 015470635A000 |
.BOLT
|
||||
| # 10 |
01547-0690A-000 015470690A000 015470690A000 |
.BOLT
|
||||
| # 11 |
16591-48H00-000 1659148H00000 1659148H00000 |
.UNION, OIL FILTER STAND
|
||||
| # 12 |
12228-17E00-0E0 1222817E000E0 1222817E000E0 |
CRANK THRUST YELLOW
.BEARING, CRANK THRUST (YELLOW) |
||||
| # 13 |
12228-17E00-0F0 1222817E000F0 1222817E000F0 |
CRANK THRUST WHITE
.BEARING, CRANK THRUST (WHITE) |
||||
| # 13 |
12228-17E00-0G0 1222817E000G0 1222817E000G0 |
.BEARING, CRANK THRUST (ORANGE)
|
||||
| # 13 |
12228-17E00-0H0 1222817E000H0 1222817E000H0 |
.BEARING, CRANK THRUST (PINK)
|
||||
| # 13 |
12228-17E00-0J0 1222817E000J0 1222817E000J0 |
.BEARING, CRANK THRUST (BROWN)
|
||||
| # 13 |
12228-17E00-0K0 1222817E000K0 1222817E000K0 |
.BEARING, CRANK THRUST (PURPLE)
|
||||
| # 13 |
12228-17E00-0L0 1222817E000L0 1222817E000L0 |
BEARING.CRANK THRUST
.BEARING, CRANK THRUST (NO COLOR) |
||||
| # 14 |
09168-14L01-000 0916814L01000 0916814L01000 |
GASKET
GASKET (13.8X18.8X4.8) |
||||
| # 15 |
11322-48H00-000 1132248H00000 1132248H00000 |
PLUG. OIL GALLERY
PLUG, OIL GALLERY (1/4PT, H:7.5) |
||||
| # 16 |
11322-48H00-000 1132248H00000 1132248H00000 |
PLUG. OIL GALLERY
PLUG, OIL GALLERY (1/4PT, H:7.5) |
||||
| # 17 |
09248-14013-000 0924814013000 0924814013000 |
PLUG. CAM
PLUG (14X12) |
||||
| # 18 |
11391-48H00-000 11390-48H00-0001139148H00000 |
JET, PISTON COOLING
|
||||
| # 19 |
09280-04004-000 0928004004000 0928004004000 |
O RING
O RING (D:1.2, ID:4)
|
||||
| # 20 |
11329-48H00-000 1132948H00000 1132948H00000 |
JET, OIL GALLERY CYLINDER
|
||||
| # 21 |
09280-04004-000 0928004004000 0928004004000 |
O RING
O RING (D:1.2, ID:4)
|
||||
| # 22 |
11313-48H00-000 1131348H00000 1131348H00000 |
JET, T/M COOLING
|
||||
| # 23 |
11317-48H00-000 1131748H00000 1131748H00000 |
PLATE, OIL SEPARATOR
|
||||
| # 24 |
01547-0612A-000 015470612A000 015470612A000 |
BOLT
|
||||
| # 25 |
11318-48H00-000 1131848H00000 1131848H00000 |
GASKET, BREATHER COVER
|
||||
| # 26 |
11330-48H01-000 1133048H01000 1133048H01000 |
COVER, BREATHER
|
||||
| # 27 |
01547-0630A-000 015470630A000 015470630A000 |
BOLT
|
||||
| # 28 |
09103-10115-000 0910310115000 0910310115000 |
BOLT (10X155)
|
||||
| # 29 |
09103-10445-000 0910310445000 0910310445000 |
BOLT (10X85)
|
||||
| # 30 |
09159-10L06-000 0915910L06000 0915910L06000 |
NUT
|
||||
| # 31 |
37820-33D10-000 3782033D10000 3782033D10000 |
OIL PRESSURE SWITCH
SWITCH ASSY, OIL PRESSURE
|
||||
| # 31 |
37820-48H01-000 3782048H01000 3782048H01000 |
SWITCH ASSY, OIL PRESSURE
|
||||
| # 32 |
37822-33D00-000 3782233D00000 3782233D00000 |
.BOLT, OIL PRESSURE SWITCH
|
||||
| # 32 |
37822-48H00-000 3782248H00000 3782248H00000 |
BOLT. OIL PRESS SWITCH
.BOLT, OIL PRESS SW |
Suzuki V-STROM
Cilinderinhoud: 250 cc Jaar: 2019 Model code DL250A L9 (P21) Kleur: Pearl Nebular Black - Solid Dazzling Cool Yellow (BJE) / Metallic Triton Blue No.2 (QHV) / Pearl Nebular Black (YAY)
