| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

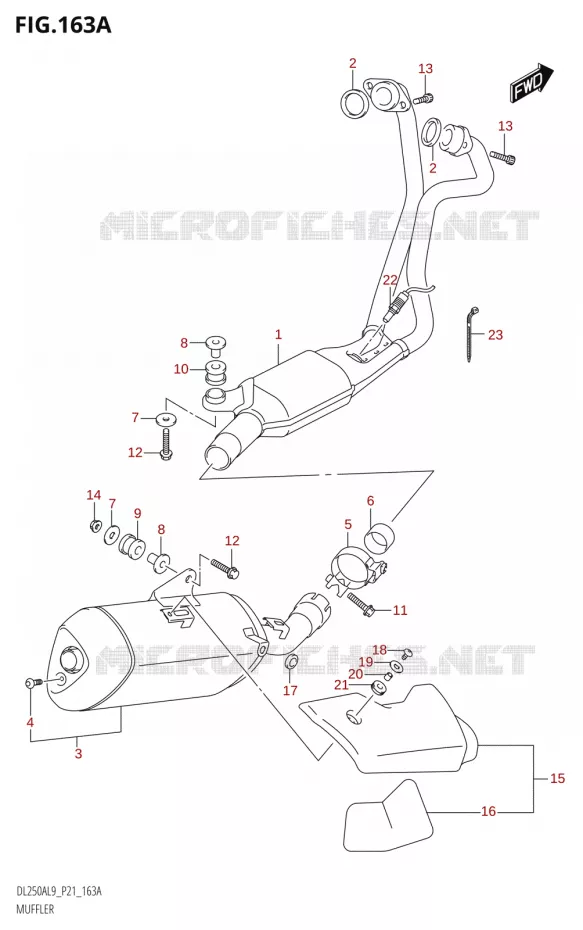

| # 1 |
14100-20K00-000 1410020K00000 1410020K00000 |
EXHAUST GSX250R/L8
EXHAUST |
||||
| # 2 |
14181-46E20-000 1418146E20000 1418146E20000 |
GASKET. EXHAUST PIPE
GASKET, EXH PIPE |
||||
| # 3 |
14310-21K10-000 1431021K10000 1431021K10000 |
BODY, MUFFLER
|
||||
| # 4 |
09139-06167-000 0913906167000 0913906167000 |
.SCREW (6X14)
|
Niet beschikbaar | |||
| # 5 |
14459-20K00-000 1445920K00000 1445920K00000 |
CLAMP. CONNECTOR GSX250RJ/L8
CLAMP, MUF CONNECTOR |
||||
| # 6 |
14771-20K00-000 1477120K00000 1477120K00000 |
CONNECTOR.MUFFLER GSX250RJ/L8
CONNECTOR, MUF JT |
||||
| # 7 |
09160-08149-000 0916008149000 0916008149000 |
WASHER
WASHER (8.5X30X1.6) |
||||
| # 8 |
09180-08L02-000 0918008L02000 0918008L02000 |
SPACER
|
||||
| # 9 |
09320-12L04-000 0932012L04000 0932012L04000 |
CUSHION
|
||||
| # 10 |
09320-12088-000 0932012088000 0932012088000 |
CUSHION
CUSHION, CHAMBER SPRT |
||||
| # 11 |
01550-0835A-000 015500835A000 015500835A000 |
BOLT
|
||||
| # 12 |
01550-0840A-000 015500840A000 015500840A000 |
BOLT
|
||||
| # 13 |
07130-0830A-000 071300830A000 071300830A000 |
BOLT. STEERING DAMPER
BOLT
|
||||
| # 14 |
08316-1008A-000 083161008A000 083161008A000 |
NUT
|
||||
| # 15 |
14780-21K10-000 1478021K10000 1478021K10000 |
COVER, MUFFLER
|
||||
| # 16 |
14783-21K00-000 1478321K00000 1478321K00000 |
.SHEILD, MUF COVER
|
||||
| # 17 |
09321-10018-000 0932110018000 0932110018000 |
CUSHION
|
||||
| # 18 |
09139-06167-000 0913906167000 0913906167000 |
SCREW (6X14)
|
Niet beschikbaar | |||
| # 19 |
09160-06028-000 0916006028000 0916006028000 |
WASHER
WASHER (6.5X18X1.0)
|
||||
| # 20 |
09180-06256-000 0918006256000 0918006256000 |
SPACER (6.5X9X5.7)
|
||||
| # 21 |
09320-08L03-000 0932008L03000 0932008L03000 |
CUSHION
CUSHION, MUF COVER |
||||
| # 22 |
18213-04K00-000 1821304K00000 1821304K00000 |
SENSOR, OXYGEN
|
||||
| # 23 |
36990-32G20-000 3699032G20000 3699032G20000 |
CLAMP. OXYGEN SENSOR LEAD
CLAMP, WIRING HARNESS (L:125) |
Suzuki V-STROM
Cilinderinhoud: 250 cc Jaar: 2019 Model code DL250A L9 (P21) Kleur: Pearl Nebular Black - Solid Dazzling Cool Yellow (BJE) / Metallic Triton Blue No.2 (QHV) / Pearl Nebular Black (YAY)
