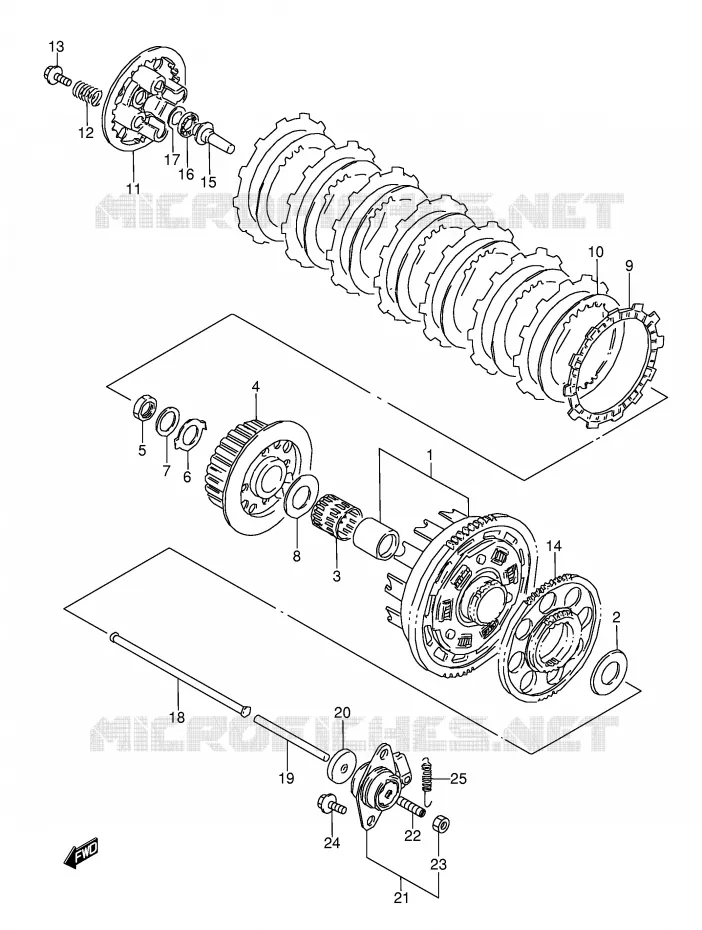

| # 1 |
21200-19813-000 2120019813000 2120019813000 |
GEAR ASSY, PRIMARY DR
GEAR, PRIMARY DRIVEN (NT:88) |
Niet beschikbaar | |||
| # 2 |
09160-25067-000 09160-25071-0000916025067000 |
WASHER, 25X54X2.5
WASHER |
||||
| # 3 |
09263-35017-000 0926335017000 0926335017000 |
NTN R3 35X40X36
BEARING
|
||||
| # 4 |
21410-27A02-000 2141027A02000 2141027A02000 |
CLUTCH SLEEVE HUB
HUB, SLEEVE
|
||||
| # 5 |
09140-22008-000 0914022008000 0914022008000 |
NUT
|
||||
| # 6 |
09169-22005-000 0916922005000 0916922005000 |
WASHER
|
||||
| # 7 |
09164-22006-000 09164-22007-0000916422006000 |
WASHER, 22.2X35X2(3)
WASHER, WAVE |
||||
| # 8 |
09160-25056-000 0916025056000 0916025056000 |
WASHER
WASHER (25X50X2.5)
|
||||
| # 9 |
21441-37400-000 21441-37430-0002144137400000 |
PLATE, CLUTCH DRIVE
PLATE, DRIVE |
||||
| # 10 |
21451-05A00-000 2145105A00000 2145105A00000 |
CLUTCH DRIVEN PLATE
PLATE, DRIVEN
|
||||
| # 11 |
21462-27A00-000 2146227A00000 2146227A00000 |
CLUTCH PRESSURE DISK
CLUTCH PRESSURE PLATE
|
||||
| # 12 |
09440-20016-000 0944020016000 0944020016000 |
SPRING
|
||||
| # 13 |
09116-06150-000 0911606150000 0911606150000 |
BOLT, CLUTCH SPRING
BOLT (6X25)
|
||||
| # 14 |
22721-17D01-000 22721-17D02-0002272117D01000 |
GEAR, GENERATOR DRIVE
DISCONTINUED |
||||
| # 15 |
23121-27A00-000 2312127A00000 2312127A00000 |
CLUTCH PUSH PIECE
PIECE, PUSH
|
||||
| # 16 |
09263-15003-000 0926315003000 0926315003000 |
NTN T 15X28X2
BEARING (15X28X2)
|
||||
| # 17 |
09160-15045-000 0916015045000 0916015045000 |
WASHER
WASHER (15.5X28X1)
|
||||
| # 18 |
23110-20C00-000 2311020C00000 2311020C00000 |
RH CLUTCH PUSH ROD
ROD, PUSH RH
|
||||
| # 19 |
23111-31301-000 2311131301000 2311131301000 |
LH CLUTCH PUSH ROD
ROD, PUSH LH
|
||||
| # 20 |
09285-06015-000 0928506015000 0928506015000 |
OIL SEAL
|
||||
| # 21 |
23200-31300-000 2320031300000 2320031300000 |
CL RELEASE SCREW
SCREW ASSY, RELEASE
|
||||
| # 22 |
09134-06010-000 0913406010000 0913406010000 |
ADJ SCREW
SCREW
|
||||
| # 23 |
08310-00067-000 0831000067000 0831000067000 |
NUT
|
||||
| # 24 |
01550-06167-000 0155006167000 0155006167000 |
BOLT
|
||||
| # 25 |
09443-07038-000 0944307038000 0944307038000 |
SPRING
|
