Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

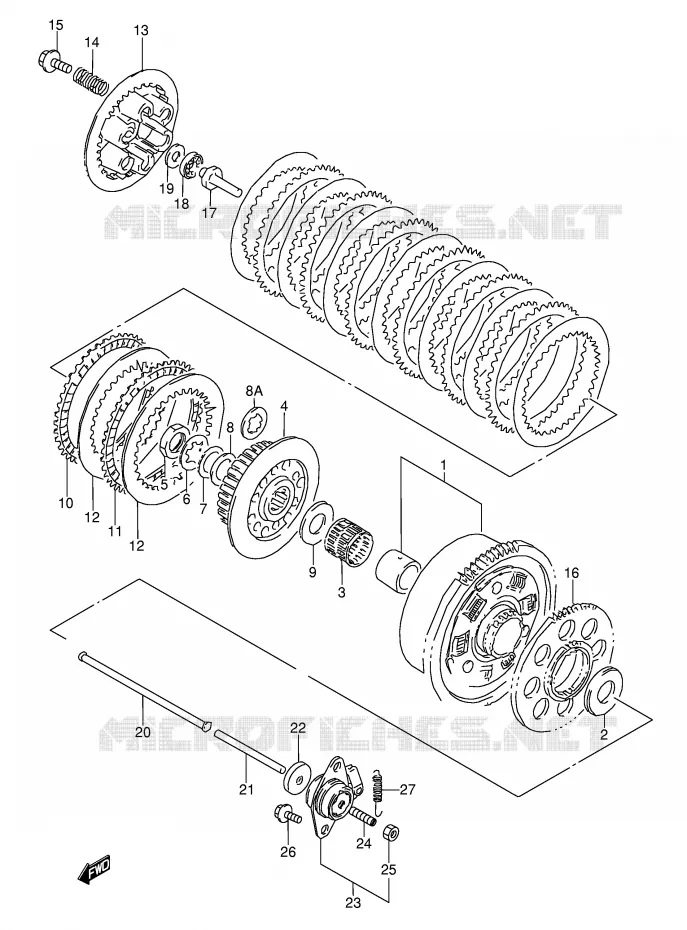

| # 1 |
21200-07864-000 2120007864000 |
GEAR ASSY, PRIMARY DR
GEAR, PRIMARY DRIVEN (NT:75) |
Niet beschikbaar | |||
| # 2 |
09160-25067-000 09160-25071-0000916025067000 |
WASHER, 25X54X2.5
WASHER |
||||
| # 3 |
09263-35017-000 0926335017000 0926335017000 |
NTN R3 35X40X36
BEARING
|
||||
| # 4 |
21410-17D01-000 2141017D01000 2141017D01000 |
HUB, CLUTCH SLEEVE
HUB, SLEEVE |
Niet beschikbaar | |||
| # 5 |
09140-24012-000 0914024012000 0914024012000 |
NUT
|
Niet beschikbaar | |||
| # 6 |
09167-25007-000 0916725007000 0916725007000 |
WASHER, LOCK
WASHER
|
||||
| # 7 |
09164-24006-000 0916424006000 0916424006000 |
WASHER
WASHER, WAVE
|
||||
| # 8 |
08221-25365-000 09181-25186-0000822125365000 |
SHIM, T:0.50
WASHER |
||||
| # 8A |
09167-25024-000 0916725024000 0916725024000 |
WASHER, THRUST
WASHER |
Niet beschikbaar | |||
| # 9 |
09160-25056-000 0916025056000 0916025056000 |
WASHER
WASHER (25X50X2.5)
|
||||
| # 10 |
21441-20C00-000 2144120C00000 2144120C00000 |
CLUTCH DRIVE PLATE
PLATE, DRIVE (T:2.2) |
||||
| # 11 |
21442-17C00-000 2144217C00000 2144217C00000 |
CLUTCH DRIVE PLATE
PLATE, DRIVE, NO.2 |
||||
| # 12 |
21451-17C00-000 2145117C00000 2145117C00000 |
CLUTCH DRIVEN PLATE
PLATE, DRIVEN (T:1.6) |
||||
| # 13 |
21462-17E01-000 2146217E01000 2146217E01000 |
PRESSURE DISK
DISC, PRESSURE |
||||
| # 14 |
09440-20020-000 0944020020000 0944020020000 |
SPRING
|
||||
| # 15 |
09116-06150-000 0911606150000 0911606150000 |
BOLT, CLUTCH SPRING
BOLT (6X25)
|
||||
| # 16 |
22721-17D01-000 22721-17D02-0002272117D01000 |
GEAR, GENERATOR DRIVE
DISCONTINUED |
||||
| # 17 |
23121-07A00-000 23121-31E00-0002312107A00000 |
PIECE
PIECE, PUSH |
||||
| # 18 |
09263-15003-000 0926315003000 0926315003000 |
NTN T 15X28X2
BEARING (15X28X2)
|
||||
| # 19 |
09160-15015-000 09160-15045-0000916015015000 |
WASHER
WASHER (15X20X1) |
||||
| # 20 |
23110-20C00-000 2311020C00000 2311020C00000 |
RH CLUTCH PUSH ROD
ROD, PUSH RH
|
||||
| # 21 |
23111-31301-000 2311131301000 2311131301000 |
LH CLUTCH PUSH ROD
ROD, PUSH LH
|
||||
| # 22 |
09285-06015-000 0928506015000 0928506015000 |
OIL SEAL
|
||||
| # 23 |
23200-31300-000 2320031300000 2320031300000 |
CL RELEASE SCREW
SCREW ASSY, RELEASE
|
||||
| # 24 |
09134-06010-000 0913406010000 0913406010000 |
ADJ SCREW
SCREW
|
||||
| # 25 |
08310-00067-000 0831000067000 0831000067000 |
NUT
|
||||
| # 26 |
01517-06167-000 01550-06167-0000151706167000 |
BOLT
|
||||
| # 26 |
01550-06163-000 0155006163000 |
KIT47370-40H00
SCREW |
Niet beschikbaar | |||
| # 27 |
09443-07038-000 0944307038000 0944307038000 |
SPRING
|
