| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
13401-41F00-000 1340141F00000 1340141F00000 |

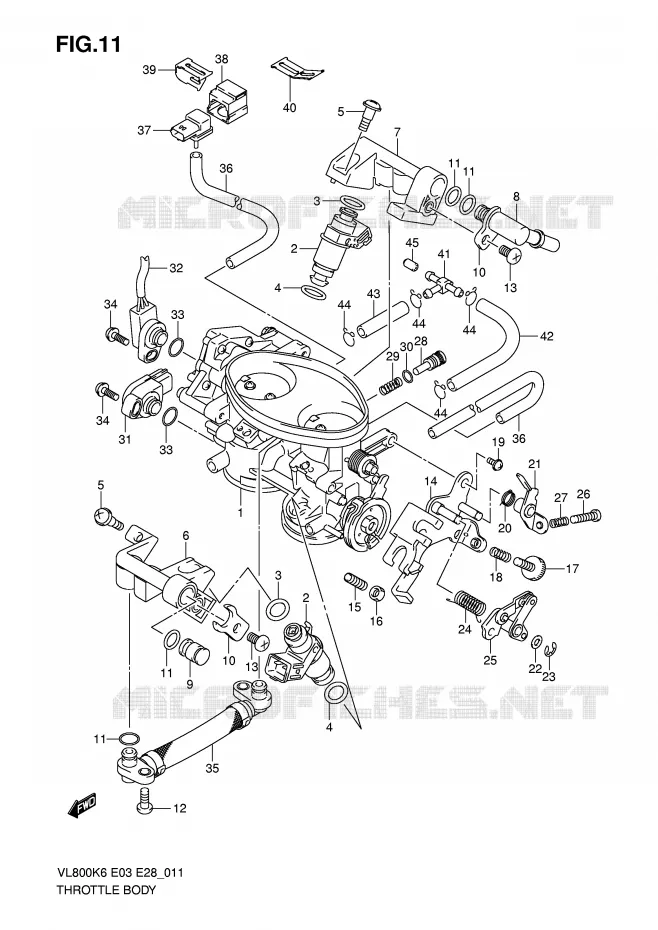

THROTTLE BODY
BODY, THROTTLE |
||||
| # 1 |
13401-41F10-000 1340141F10000 1340141F10000 |
BODY, THROTTLE
|
Niet beschikbaar | |||
| # 2 |
15710-14G00-000 1571014G00000 1571014G00000 |
INJECTOR
INJECTOR ASSY |
||||
| # 3 |
15721-10G00-000 1572110G00000 1572110G00000 |
O RING
|
||||
| # 4 |
15722-10G00-000 1572210G00000 1572210G00000 |
O RING
|
||||
| # 5 |
13602-34F50-000 1360234F50000 1360234F50000 |
SCREW, THROTTLE COVER
|
||||
| # 6 |
13471-10F00-000 1347110F00000 1347110F00000 |
FUEL PIPE
PIPE, FUEL |
||||
| # 7 |
13471-10F10-000 1347110F10000 1347110F10000 |
FUEL PIPE
PIPE, FUEL |
||||
| # 8 |
13473-41F00-000 1347341F00000 1347341F00000 |
JOINT
|
||||
| # 9 |
13476-10F00-000 1347610F00000 1347610F00000 |
PLUG
|
||||
| # 10 |
13428-10F00-000 1342810F00000 1342810F00000 |
PLATE
|
Niet beschikbaar | |||
| # 11 |
15721-24F00-000 1572124F00000 1572124F00000 |
O RING
|
||||
| # 12 |
13602-10F00-000 1360210F00000 1360210F00000 |
SCREW
|
||||
| # 13 |
13602-10F10-000 1360210F10000 1360210F10000 |
SCREW
|
||||
| # 14 |
13565-41F00-000 1356541F00000 1356541F00000 |
PLATE
PLATE, STAY |
||||
| # 15 |
13267-10G00-000 1326710G00000 1326710G00000 |
STOP SCREW
SCREW, STOP |
||||
| # 16 |
13661-10G00-000 1366110G00000 1366110G00000 |
NUT
|
||||
| # 17 |
13605-10F00-000 1360510F00000 1360510F00000 |
SCREW
SCREW, IDLE |
||||
| # 18 |
13268-35F00-000 1326835F00000 1326835F00000 |
SPRING
|
||||
| # 19 |
13601-10G00-000 1360110G00000 1360110G00000 |
SCREW
|
||||
| # 20 |
13426-35F10-000 1342635F10000 1342635F10000 |
SPRING
|
Niet beschikbaar | |||
| # 21 |
13414-40F00-000 1341440F00000 1341440F00000 |
LINK LEVER
|
Niet beschikbaar | |||
| # 22 |
13427-35F10-000 1342735F10000 1342735F10000 |
WASHER
|
||||
| # 23 |
13424-35F10-000 1342435F10000 1342435F10000 |
E CLIP
|
||||
| # 24 |
13426-40F00-000 1342640F00000 1342640F00000 |
SPRING
|
Niet beschikbaar | |||
| # 25 |
13420-40F20-000 1342040F20000 1342040F20000 |
LINK LEVER
LEVER SET, LINK |
||||
| # 26 |
13602-10F20-000 1360210F20000 1360210F20000 |
STOP SCREW
|
||||
| # 27 |
13543-24F00-000 1354324F00000 1354324F00000 |
SPRING
|
||||
| # 28 |
13279-10G00-000 1327910G00000 1327910G00000 |
ADJUST SCREW
|
||||
| # 29 |
13271-10G00-000 1327110G00000 1327110G00000 |
SPRING
|
||||
| # 30 |
13295-10G00-000 1329510G00000 1329510G00000 |
O RING
|
||||
| # 31 |
13580-40F20-000 13580-40F21-0001358040F20000 |
SENSOR ASSY, THROTTLE NO.1
SENSOR ASSY, THROTTLE MAIN |
||||
| # 32 |
13580-41F00-000 13580-41F01-0001358041F00000 |
SENSOR ASSY. SUB
SENSOR ASSY, THROTTLE SUB |
||||
| # 33 |
13575-40F00-000 1357540F00000 1357540F00000 |
O RING
|
||||
| # 34 |
13605-40F00-000 1360540F00000 1360540F00000 |
SCREW
|
||||
| # 35 |
13680-10F00-000 1368010F00000 1368010F00000 |
FUEL PIPE ASSY
PIPE ASSY, FUEL |
||||
| # 36 |
13683-41FA0-000 1368341FA0000 1368341FA0000 |
HOSE
|
||||
| # 37 |
18591-42F00-000 1859142F00000 1859142F00000 |
SENSOR, PRESSURE
|
||||
| # 38 |
18595-42F20-000 1859542F20000 1859542F20000 |
HOLDER
|
||||
| # 39 |
18598-41F00-000 1859841F00000 1859841F00000 |
BRACKET
BRACKET, BOOST SENSOR FRONT |
||||
| # 40 |
18599-41F00-000 1859941F00000 1859941F00000 |
BRACKET
BRACKET, BOOST SENSOR REAR |
||||
| # 41 |
13685-48B00-000 1368548B00000 1368548B00000 |
(CA) NIPPLE
JOINT
|
||||
| # 42 |
13683-41FB1-000 1368341FB1000 1368341FB1000 |
HOSE
|
Niet beschikbaar | |||
| # 43 |
13683-41FC1-000 1368341FC1000 1368341FC1000 |
HOSE
|
Niet beschikbaar | |||
| # 44 |
13693-24F00-000 1369324F00000 1369324F00000 |
CLIP
|
||||
| # 45 |
13685-10F00-000 1368510F00000 1368510F00000 |
PIPE
PIPE, PURGE HOSE |
