| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

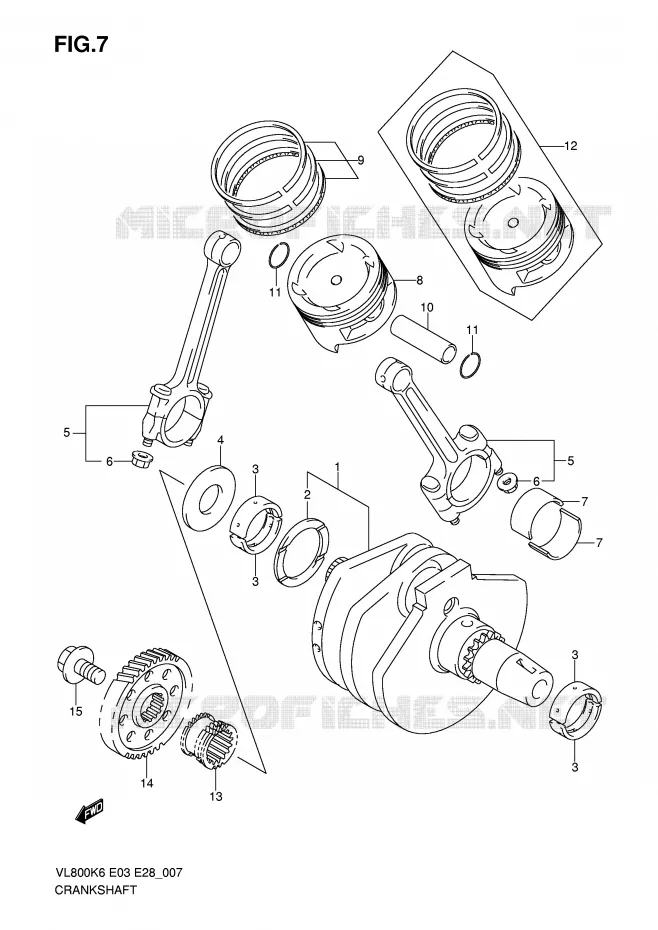

| # 1 |
12000-41810-000 12000-41830-0001200041810000 |
CRANKSHAFT SET
|
||||
| # 2 |
09160-48001-000 0916048001000 0916048001000 |
WASHER 48X64X1.95
WASHER, CRANK THRUST (T:1.94)
|
||||
| # 2 |
09160-48002-000 0916048002000 0916048002000 |
WASHER 48X64X1.975
WASHER, CRANK THRUST (T:1.96)
|
||||
| # 2 |
09160-48003-000 0916048003000 0916048003000 |
WASHER 48X64X2.00
WASHER, CRANK THRUST (T:1.99)
|
||||
| # 2 |
09160-48004-000 0916048004000 0916048004000 |
WASHER 48X64X2.025
WASHER, CRANK THRUST (T:2.01)
|
||||
| # 2 |
09160-48005-000 0916048005000 0916048005000 |
WASHER 48X64X2.050
WASHER, CRANK THRUST (T:2.04)
|
||||
| # 2 |
09160-48006-000 0916048006000 0916048006000 |
WASHER 48X64X2.075
WASHER, CRANK THRUST (T:2.06)
|
||||
| # 2 |
09160-48007-000 0916048007000 0916048007000 |
WASHER 48X64X2.100
WASHER, CRANK THRUST (T:2.09)
|
||||
| # 2 |
09160-48008-000 0916048008000 0916048008000 |
WASHER 48X64X2.125
WASHER, CRANK THRUST (T:2.11)
|
||||
| # 2 |
09160-48009-000 0916048009000 0916048009000 |
WASHER 48X64X2.150
WASHER, CRANK THRUST (T:2.14)
|
||||
| # 2 |
09160-48010-000 0916048010000 0916048010000 |
WASHER 48X64X2.175
WASHER, CRANK THRUST (T:2.16) |
||||
| # 3 |
12229-39G00-0A0 1222939G000A0 1222939G000A0 |
BEARING
BEARING, CRANKSHAFT |
||||
| # 3 |
12229-39G00-0B0 1222939G000B0 1222939G000B0 |
BEARING
BEARING, CRANKSHAFT |
||||
| # 3 |
12229-39G00-0C0 1222939G000C0 1222939G000C0 |
BEARING
BEARING, CRANKSHAFT |
||||
| # 4 |
12652-38A00-000 1265238A00000 1265238A00000 |
WASHER, CRANK THRUST
|
||||
| # 5 |
12160-45C10-000 12160-45C10-0001216045C10000 |
CONNECTING ROD
ROD ASSY, CONNECTING |
||||
| # 5 |
12160-45C30-000 12160-45C30-0001216045C30000 |
CONNECTING ROD
ROD ASSY, CONNECTING |
||||
| # 6 |
09159-09001-000 0915909001000 0915909001000 |
NUT
|
||||
| # 7 |
12164-38E00-0A0 1216438E000A0 1216438E000A0 |
BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN) |
||||
| # 7 |
12164-38E00-0B0 1216438E000B0 1216438E000B0 |
BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK) |
||||
| # 7 |
12164-38E00-0C0 1216438E000C0 1216438E000C0 |
BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN) |
||||
| # 7 |
12164-38E00-0D0 1216438E000D0 1216438E000D0 |
BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW) |
||||
| # 7 |
12164-38E00-0E0 1216438E000E0 1216438E000E0 |
BEARING, CRANK PIN
BEARING, CRANK PIN (BLUE) |
||||
| # 8 |
12111-41F00-0F0 12111-41F10-0F01211141F000F0 |
PISTON
|
||||
| # 9 |
12140-41F00-000 1214041F00000 1214041F00000 |
PISTON RING SET STD
RING SET, PISTON |
||||
| # 10 |
12151-24A00-000 1215124A00000 1215124A00000 |
PISTON PIN
PIN, PISTON |
||||
| # 11 |
09381-20004-000 0938120004000 0938120004000 |
CIRCLIP
|
||||
| # 12 |
12100-41F00-050 12100-41F10-0501210041F00050 |
PISTON SET, OS 0.5
PISTON SET (OS:0.5) |
||||
| # 13 |
12731-38A00-000 1273138A00000 1273138A00000 |
SPROCKET
SPROCKET, CAM CHAIN DRIVE RH |
||||
| # 14 |
21111-38A00-000 2111138A00000 2111138A00000 |
PRIMARY DRIVE GEAR
GEAR, PRIMARY DRIVE |
||||
| # 15 |
09103-12013-000 0910312013000 0910312013000 |
BOLT (12X28)
|
