| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

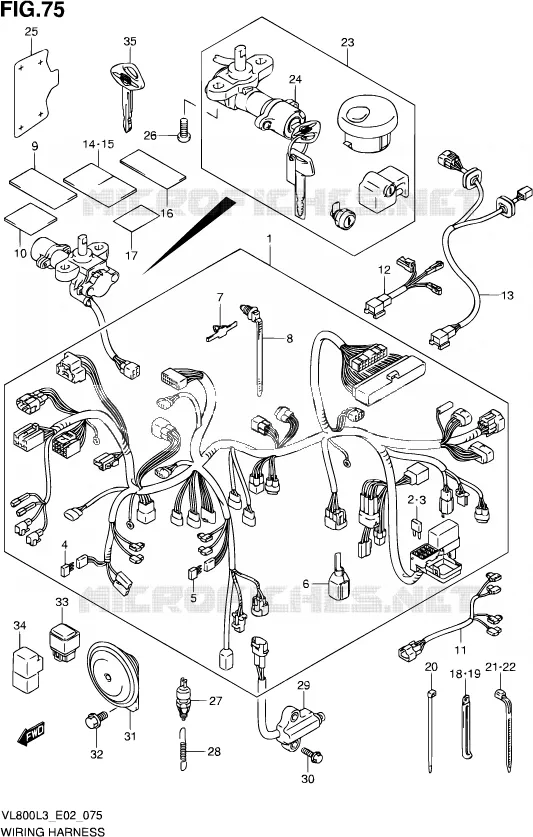

| # 1 |
36610-41F20-000 3661041F20000 3661041F20000 |
HARNESS, WIRING
|
||||
| # 2 |
09481-10501-000 09481-10501-0000948110501000 |
FUSE 10A VZ800, R750/W, GSX750
.FUSE (10A)
|
||||
| # 3 |
09481-20501-000 0948120501000 0948120501000 |
.FUSE (20A)
|
||||
| # 4 |
32800-16A00-000 3280016A00000 3280016A00000 |
.RECTIFIER ASSY
|
||||
| # 5 |
36611-38A00-000 36611-38A10-0003661138A00000 |
.DIODE
|
||||
| # 6 |
36717-41F00-000 3671741F00000 3671741F00000 |
.BOOT
|
||||
| # 7 |
09407-05410-000 0940705410000 0940705410000 |
.CLAMP
|
||||
| # 8 |
09407-17403-000 0940717403000 0940717403000 |
CLAMP
.CLAMP (L:154) |
||||
| # 9 |
36611-16G00-000 3661116G00000 3661116G00000 |
PROTECTOR
TAPE WIRING (28X50X0.13) |
||||
| # 10 |
36611-41F00-000 3661141F00000 3661141F00000 |
PROTECTOR, WIRING HARNESS
TAPE WIRING (30X50X3) |
||||
| # 11 |
36854-39G00-000 3685439G00000 3685439G00000 |
WIRE. IGNITION COIL
WIRE, IGNITION COIL LEAD |
||||
| # 12 |
36856-41F00-000 3685641F00000 3685641F00000 |
WIRE, REARCOMBINATIONNO.2
|
||||
| # 13 |
36858-41F00-000 3685841F00000 3685841F00000 |
WIRE, REARCOMBINATION
|
||||
| # 14 |
36920-33C00-000 3692033C00000 3692033C00000 |
PROTECTOR
TAPE, WIRING HARNESS |
||||
| # 15 |
36920-33C00-000 3692033C00000 3692033C00000 |
PROTECTOR
PROTECTOR, WIRING HARNESS |
||||
| # 16 |
36920-45G00-000 3692045G00000 3692045G00000 |
PROTECTOR. HARNESS (20X50X2.0)
PROTECTOR, WIRING HARNESS |
||||
| # 17 |
94474-17H00-000 9447417H00000 9447417H00000 |
PROTECTOR, COWL UNDER
PROTECTOR, WIRING HARNESS |
||||
| # 18 |
09404-06433-000 09404-06036-0000940406433000 |
CLAMP (L80 T:1.0)
CLAMP (L:80) |
||||
| # 19 |
09404-06435-000 0940406435000 0940406435000 |
CLAMP
CLAMP (L:135)
|
||||
| # 20 |
09407-14407-000 0940714407000 0940714407000 |
CLAMP
CLAMP (L:145)
|
||||
| # 21 |
09407-18402-000 0940718402000 0940718402000 |
CLAMP (L:165)
|
||||
| # 22 |
09407-19401-000 09407-22403-0000940719401000 |
CLAMP
CLAMP (L:190) |
||||
| # 23 |
37102-41870-000 3710241870000 3710241870000 |
LOCK SET
|
Niet beschikbaar | |||
| # 24 |
37100-41F70-000 3710041F70000 3710041F70000 |
.LOCK ASSY, STEERING
|
||||
| # 25 |
37187-41F10-000 3718741F10000 3718741F10000 |
PROTECTOR, IGNITION SW
PROTECTOR, IGNITION SWITCH |
||||
| # 26 |
09139-08016-000 0913908016000 0913908016000 |
BOLT
BOLT (8X20)
|
||||
| # 27 |
37740-24A00-000 37740-45D00-0003774024A00000 |
SWITCH ASSY STOP LAM
SWITCH ASSY, STOP LAMP
|
||||
| # 28 |
09443-06073-000 0944306073000 0944306073000 |
SPRING
|
||||
| # 29 |
37840-41F00-000 3784041F00000 3784041F00000 |
SWITCH ASSY, SIDE STAND
|
||||
| # 30 |
01550-0620B-000 015500620B000 015500620B000 |
BOLT
BOLT (6X20)
|
||||
| # 31 |
38500-41F30-000 3850041F30000 3850041F30000 |
HORN ASSY
|
||||
| # 32 |
01550-0816A-000 015500816A000 015500816A000 |
BOLT
|
||||
| # 33 |
38740-24A00-000 3874024A00000 3874024A00000 |
SIDE STAND RELAY
RELAY ASSY, HEAD LAMP |
||||
| # 34 |
38740-24X50-000 3874024X50000 3874024X50000 |
SIDE ST WARN RELAY
RELAY ASSY, FUEL PUMP
|
Suzuki VOLUSIA
Cilinderinhoud: 800 cc Jaar: 2013 Model code VL800 L3 / VL800T L3 (E24)
